Cam-action indexing plungers, Form F, with grip cap, metric
K1670_F Metric

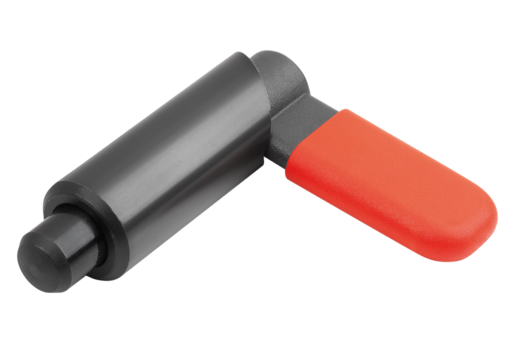

Cam-action indexing plungers, Form F, with grip cap, metric

go back

Item description/product images

DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Sleeve 1.0403.
Indexing pin free-cutting steel.
Spring 1.4310.
Grip cap thermoplastic PA
Version:Sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap in various colours:
-black grey RAL 7021.
-pure orange RAL 2004.
-colza yellow RAL 1021.
-traffic red RAL 3020.
-signal green RAL 6032.
-traffic blue RAL 5017.
-light grey RAL 7035.
Note:If the cam-action indexing plunger is to be welded on, the sleeve should be tack welded so that the spring is not thermally damaged from the high temperatures.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Smooth sleeve, Connecting option via adapter sleeve
On request:Special versions.
Accessory:Positioning bushes K1290, K1839, K1840.
Special features:
RoHS

Drawings

Cam-action indexing plungers, Form F, with grip cap, metric

Item selection/filter

Order No.FormComponent
colour
DD1LL1BB1HFx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1670.090410Fblack grey RAL 702141039,526,310,94,961814 23.39 $ (USD)
K1670.090510Fblack grey RAL 702151039,526,310,94,961,3814 23.39 $ (USD)
K1670.090610Fblack grey RAL 702161039,526,310,94,961,8814 23.39 $ (USD)
K1670.090512Fblack grey RAL 702151248,431,112,95,781,3814 23.89 $ (USD)
K1670.090612Fblack grey RAL 702161248,431,112,95,781,8814 23.89 $ (USD)
K1670.090812Fblack grey RAL 702181248,431,112,95,782,3814 23.89 $ (USD)
K1670.090616Fblack grey RAL 702161662,341,516,67101,81535 28.25 $ (USD)
K1670.090816Fblack grey RAL 702181662,341,516,67102,31535 28.25 $ (USD)
K1670.091016Fblack grey RAL 7021101662,841,516,67102,81535 28.25 $ (USD)
K1670.090820Fblack grey RAL 702182072,351,320,58,5122,32060 32.75 $ (USD)
K1670.091020Fblack grey RAL 7021102072,351,320,58,5122,82060 32.75 $ (USD)
K1670.091220Fblack grey RAL 7021122072,351,320,58,51232060 32.75 $ (USD)
K1670.0904102Forange RAL 200441039,526,310,94,961814 23.39 $ (USD)
K1670.0905102Forange RAL 200451039,526,310,94,961,3814 23.39 $ (USD)
K1670.0906102Forange RAL 200461039,526,310,94,961,8814 23.39 $ (USD)
K1670.0905122Forange RAL 200451248,431,112,95,781,3814 23.89 $ (USD)
K1670.0906122Forange RAL 200461248,431,112,95,781,8814 23.89 $ (USD)
K1670.0908122Forange RAL 200481248,431,112,95,782,3814 23.89 $ (USD)
K1670.0906162Forange RAL 200461662,341,516,67101,81535 28.25 $ (USD)
K1670.0908162Forange RAL 200481662,341,516,67102,31535 28.25 $ (USD)
K1670.0910162Forange RAL 2004101662,841,516,67102,81535 28.25 $ (USD)
K1670.0908202Forange RAL 200482072,351,320,58,5122,32060 32.75 $ (USD)
K1670.0910202Forange RAL 2004102072,351,320,58,5122,82060 32.75 $ (USD)
K1670.0912202Forange RAL 2004122072,351,320,58,51232060 32.75 $ (USD)
K1670.09041016Fcolza yellow RAL 102141039,526,310,94,961814 23.39 $ (USD)
K1670.09051016Fcolza yellow RAL 102151039,526,310,94,961,3814 23.39 $ (USD)
K1670.09061016Fcolza yellow RAL 102161039,526,310,94,961,8814 23.39 $ (USD)
K1670.09051216Fcolza yellow RAL 102151248,431,112,95,781,3814 23.89 $ (USD)
K1670.09061216Fcolza yellow RAL 102161248,431,112,95,781,8814 23.89 $ (USD)
K1670.09081216Fcolza yellow RAL 102181248,431,112,95,782,3814 23.89 $ (USD)
K1670.09061616Fcolza yellow RAL 102161662,341,516,67101,81535 28.25 $ (USD)
K1670.09081616Fcolza yellow RAL 102181662,341,516,67102,31535 28.25 $ (USD)
K1670.09101616Fcolza yellow RAL 1021101662,841,516,67102,81535 28.25 $ (USD)
K1670.09082016Fcolza yellow RAL 102182072,351,320,58,5122,32060 32.75 $ (USD)
K1670.09102016Fcolza yellow RAL 1021102072,351,320,58,5122,82060 32.75 $ (USD)
K1670.09122016Fcolza yellow RAL 1021122072,351,320,58,51232060 32.75 $ (USD)
K1670.09041084Ftraffic red RAL 302041039,526,310,94,961814 23.39 $ (USD)
K1670.09051084Ftraffic red RAL 302051039,526,310,94,961,3814 23.39 $ (USD)
K1670.09061084Ftraffic red RAL 302061039,526,310,94,961,8814 23.39 $ (USD)
K1670.09051284Ftraffic red RAL 302051248,431,112,95,781,3814 23.89 $ (USD)
K1670.09061284Ftraffic red RAL 302061248,431,112,95,781,8814 23.89 $ (USD)
K1670.09081284Ftraffic red RAL 302081248,431,112,95,782,3814 23.89 $ (USD)
K1670.09061684Ftraffic red RAL 302061662,341,516,67101,81535 28.25 $ (USD)
K1670.09081684Ftraffic red RAL 302081662,341,516,67102,31535 28.25 $ (USD)
K1670.09101684Ftraffic red RAL 3020101662,841,516,67102,81535 28.25 $ (USD)
K1670.09082084Ftraffic red RAL 302082072,351,320,58,5122,32060 32.75 $ (USD)
K1670.09102084Ftraffic red RAL 3020102072,351,320,58,5122,82060 32.75 $ (USD)
K1670.09122084Ftraffic red RAL 3020122072,351,320,58,51232060 32.75 $ (USD)
K1670.09041086Fsignal green RAL 603241039,526,310,94,961814 23.39 $ (USD)
K1670.09051086Fsignal green RAL 603251039,526,310,94,961,3814 23.39 $ (USD)
K1670.09061086Fsignal green RAL 603261039,526,310,94,961,8814 23.39 $ (USD)
K1670.09051286Fsignal green RAL 603251248,431,112,95,781,3814 23.89 $ (USD)
K1670.09061286Fsignal green RAL 603261248,431,112,95,781,8814 23.89 $ (USD)
K1670.09081286Fsignal green RAL 603281248,431,112,95,782,3814 23.89 $ (USD)
K1670.09061686Fsignal green RAL 603261662,341,516,67101,81535 28.25 $ (USD)
K1670.09081686Fsignal green RAL 603281662,341,516,67102,31535 28.25 $ (USD)
K1670.09101686Fsignal green RAL 6032101662,841,516,67102,81535 28.25 $ (USD)
K1670.09082086Fsignal green RAL 603282072,351,320,58,5122,32060 32.75 $ (USD)
K1670.09102086Fsignal green RAL 6032102072,351,320,58,5122,82060 32.75 $ (USD)
K1670.09122086Fsignal green RAL 6032122072,351,320,58,51232060 32.75 $ (USD)
K1670.09041087Ftraffic blue RAL 501741039,526,310,94,961814 23.39 $ (USD)
K1670.09051087Ftraffic blue RAL 501751039,526,310,94,961,3814 23.39 $ (USD)
K1670.09061087Ftraffic blue RAL 501761039,526,310,94,961,8814 23.39 $ (USD)
K1670.09051287Ftraffic blue RAL 501751248,431,112,95,781,3814 23.89 $ (USD)
K1670.09061287Ftraffic blue RAL 501761248,431,112,95,781,8814 23.89 $ (USD)
K1670.09081287Ftraffic blue RAL 501781248,431,112,95,782,3814 23.89 $ (USD)
K1670.09061687Ftraffic blue RAL 501761662,341,516,67101,81535 28.25 $ (USD)
K1670.09081687Ftraffic blue RAL 501781662,341,516,67102,31535 28.25 $ (USD)
K1670.09101687Ftraffic blue RAL 5017101662,841,516,67102,81535 28.25 $ (USD)
K1670.09082087Ftraffic blue RAL 501782072,351,320,58,5122,32060 32.75 $ (USD)
K1670.09102087Ftraffic blue RAL 5017102072,351,320,58,5122,82060 32.75 $ (USD)
K1670.09122087Ftraffic blue RAL 5017122072,351,320,58,51232060 32.75 $ (USD)
K1670.09041088Flight grey RAL 703541039,526,310,94,961814 23.39 $ (USD)
K1670.09051088Flight grey RAL 703551039,526,310,94,961,3814 23.39 $ (USD)
K1670.09061088Flight grey RAL 703561039,526,310,94,961,8814 23.39 $ (USD)
K1670.09051288Flight grey RAL 703551248,431,112,95,781,3814 23.89 $ (USD)
K1670.09061288Flight grey RAL 703561248,431,112,95,781,8814 23.89 $ (USD)
K1670.09081288Flight grey RAL 703581248,431,112,95,782,3814 23.89 $ (USD)
K1670.09061688Flight grey RAL 703561662,341,516,67101,81535 28.25 $ (USD)
K1670.09081688Flight grey RAL 703581662,341,516,67102,31535 28.25 $ (USD)
K1670.09101688Flight grey RAL 7035101662,841,516,67102,81535 28.25 $ (USD)
K1670.09082088Flight grey RAL 703582072,351,320,58,5122,32060 32.75 $ (USD)
K1670.09102088Flight grey RAL 7035102072,351,320,58,5122,82060 32.75 $ (USD)
K1670.09122088Flight grey RAL 7035122072,351,320,58,51232060 32.75 $ (USD)
