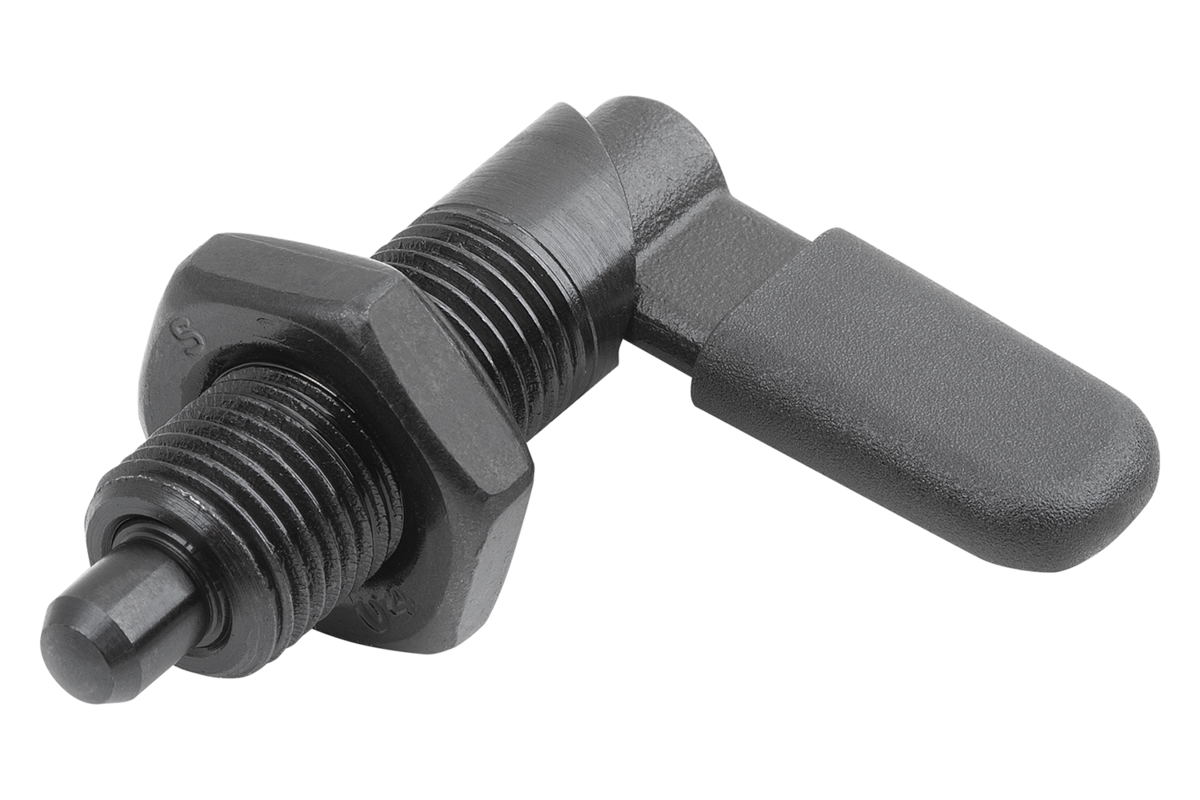

Cam-action indexing plungers, Form D, with grip cap and nut, inch

go back

News
- NEW Product Innovations
  - Cam-action indexing plungers
    - Cam-action indexing plungers, Form D, with grip cap and nut, inch

Item description/product images

DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Threaded sleeve and indexing pin free-cutting steel.
Spring 1.4310.
Grip cap thermoplastic PA.Version:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap:
-black grey RAL 7021Advantages:Turning the grip through 180° retracts the pin.
Mounted via the male thread.On request:Special versions.
Accessory:Mounting bracket K0638.
Positioning bushes K1290, K1839, K1840.
Special features:

Drawings

Item selection/filter

Order No.	Form	Component colour	D	D1	D2	L	L1	L3	B	B1	H	SW	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K1672.0704A4	D	black grey RAL 7021	4	3/8-16	10	39,5	26,3	20	10,9	4,9	6	9/16	1	8	14	31.60 $ (USD)
K1672.0705A4	D	black grey RAL 7021	5	3/8-16	10	39,5	26,3	20	10,9	4,9	6	9/16	1,3	8	14	31.60 $ (USD)
K1672.0706A4	D	black grey RAL 7021	6	3/8-16	10	39,5	26,3	20	10,9	4,9	6	9/16	1,8	8	14	31.60 $ (USD)
K1672.0704AL	D	black grey RAL 7021	4	3/8-24	10	39,5	26,3	20	10,9	4,9	6	9/16	1	8	14	31.60 $ (USD)
K1672.0705AL	D	black grey RAL 7021	5	3/8-24	10	39,5	26,3	20	10,9	4,9	6	9/16	1,3	8	14	31.60 $ (USD)
K1672.0706AL	D	black grey RAL 7021	6	3/8-24	10	39,5	26,3	20	10,9	4,9	6	9/16	1,8	8	14	31.60 $ (USD)
K1672.0705A5	D	black grey RAL 7021	5	1/2-13	12	48,4	31,1	25	12,9	5,7	8	3/4	1,3	8	15	32.29 $ (USD)
K1672.0706A5	D	black grey RAL 7021	6	1/2-13	12	48,4	31,1	25	12,9	5,7	8	3/4	1,8	8	15	32.29 $ (USD)
K1672.0708A5	D	black grey RAL 7021	8	1/2-13	12	48,4	31,1	25	12,9	5,7	8	3/4	2,3	8	15	32.29 $ (USD)
K1672.0705AM	D	black grey RAL 7021	5	1/2-20	12	48,4	31,1	25	12,9	5,7	8	3/4	1,3	8	15	32.29 $ (USD)
K1672.0706AM	D	black grey RAL 7021	6	1/2-20	12	48,4	31,1	25	12,9	5,7	8	3/4	1,8	8	15	32.29 $ (USD)
K1672.0708AM	D	black grey RAL 7021	8	1/2-20	12	48,4	31,1	25	12,9	5,7	8	3/4	2,3	8	15	32.29 $ (USD)
K1672.0706A6	D	black grey RAL 7021	6	5/8-11	16	62,3	41,5	32	16,6	7	10	15/16	1,8	15	35	38.66 $ (USD)
K1672.0708A6	D	black grey RAL 7021	8	5/8-11	16	62,3	41,5	32	16,6	7	10	15/16	2,3	15	35	38.66 $ (USD)
K1672.0710A6	D	black grey RAL 7021	10	5/8-11	16	62,3	41,5	32	16,6	7	10	15/16	2,8	15	35	38.66 $ (USD)
K1672.0706AN	D	black grey RAL 7021	6	5/8-18	16	62,3	41,5	32	16,6	7	10	15/16	1,8	15	35	38.66 $ (USD)
K1672.0708AN	D	black grey RAL 7021	8	5/8-18	16	62,3	41,5	32	16,6	7	10	15/16	2,3	15	35	38.66 $ (USD)
K1672.0710AN	D	black grey RAL 7021	10	5/8-18	16	62,3	41,5	32	16,6	7	10	15/16	2,8	15	35	38.66 $ (USD)
K1672.0708A7	D	black grey RAL 7021	8	3/4-10	20	72,3	51,25	35	20,5	8,5	12	1-1/8	2,3	20	60	44.09 $ (USD)
K1672.0710A7	D	black grey RAL 7021	10	3/4-10	20	72,3	51,25	35	20,5	8,5	12	1-1/8	2,8	20	60	44.09 $ (USD)
K1672.0712A7	D	black grey RAL 7021	12	3/4-10	20	72,3	51,25	35	20,5	8,5	12	1-1/8	3	20	60	44.09 $ (USD)
K1672.0708AO	D	black grey RAL 7021	8	3/4-16	20	72,3	51,25	35	20,5	8,5	12	1-1/8	2,3	20	60	44.09 $ (USD)
K1672.0710AO	D	black grey RAL 7021	10	3/4-16	20	72,3	51,25	35	20,5	8,5	12	1-1/8	2,8	20	60	44.09 $ (USD)
K1672.0712AO	D	black grey RAL 7021	12	3/4-16	20	72,3	51,25	35	20,5	8,5	12	-	3	20	60	44.09 $ (USD)
