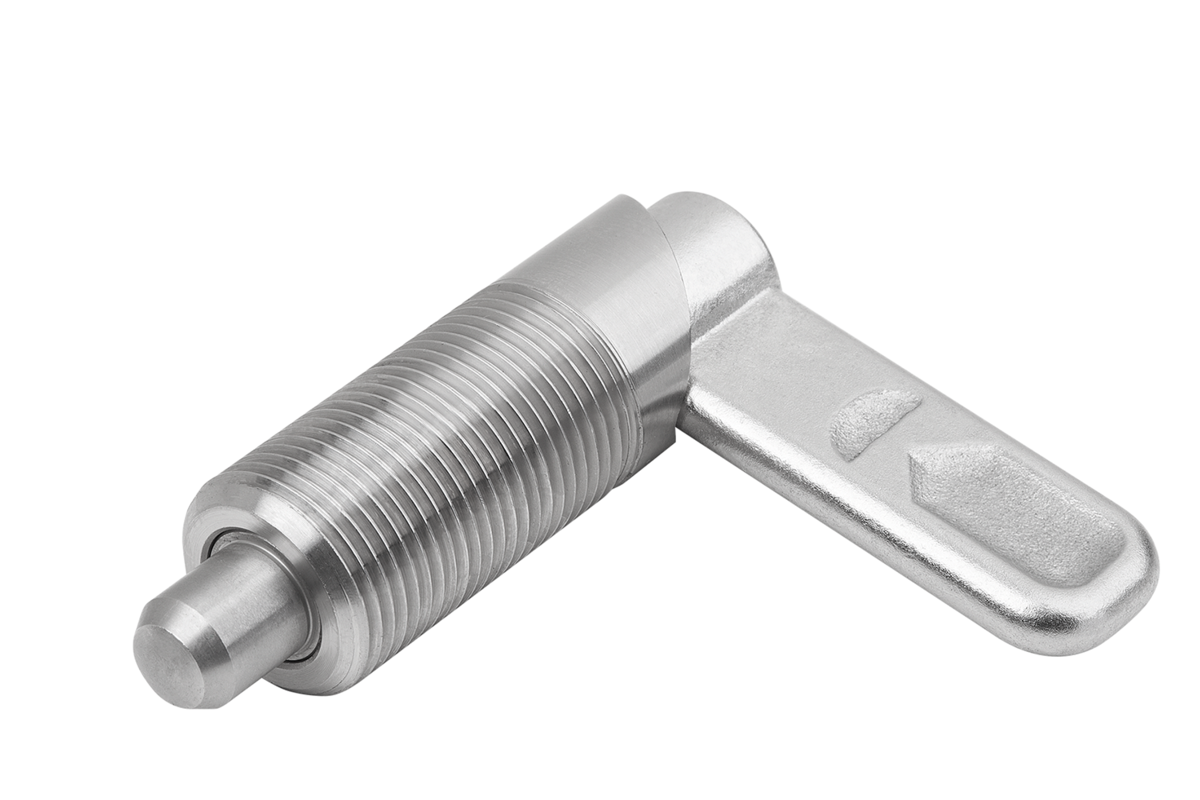

    - Cam-action indexing plungers, stainless steel, Form A, without grip cap or nut, inch

Item description/product images

DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Version:Threaded sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.Advantages:Turning the grip through 180° retracts the pin.
Mounted via the male thread.On request:Special versions.
Accessory:Mounting bracket K0638.
Positioning bushes K1290, K1839, K1840.
Special features:

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	L3	B	B1	H	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K1673.10404A4	A	4	3/8-16	10	38,5	25	20	9	3	6	1	8	14	37.72 $ (USD)
K1673.10405A4	A	5	3/8-16	10	38,5	25	20	9	3	6	1,3	8	14	37.72 $ (USD)
K1673.10406A4	A	6	3/8-16	10	38,5	25	20	9	3	6	1,8	8	14	37.72 $ (USD)
K1673.10404AL	A	4	3/8-24	10	38,5	25	20	9	3	6	1	8	14	37.72 $ (USD)
K1673.10405AL	A	5	3/8-24	10	38,5	25	20	9	3	6	1,3	8	14	37.72 $ (USD)
K1673.10406AL	A	6	3/8-24	10	38,5	25	20	9	3	6	1,8	8	14	37.72 $ (USD)
K1673.10405A5	A	5	1/2-13	12	47,7	30	25	10,8	3,6	8	1,3	8	15	41.15 $ (USD)
K1673.10406A5	A	6	1/2-13	12	47,7	30	25	10,8	3,6	8	1,8	8	15	41.15 $ (USD)
K1673.10408A5	A	8	1/2-13	12	47,7	30	25	10,8	3,6	8	2,3	8	15	41.15 $ (USD)
K1673.10405AM	A	5	1/2-20	12	47,7	30	25	10,8	3,6	8	1,3	8	15	41.15 $ (USD)
K1673.10406AM	A	6	1/2-20	12	47,7	30	25	10,8	3,6	8	1,8	8	15	41.15 $ (USD)
K1673.10408AM	A	8	1/2-20	12	47,7	30	25	10,8	3,6	8	2,3	8	15	41.15 $ (USD)
K1673.10406A6	A	6	5/8-11	16	61,2	40	32	14,4	4,8	10	1,8	15	35	45.21 $ (USD)
K1673.10408A6	A	8	5/8-11	16	61,2	40	32	14,4	4,8	10	2,3	15	35	45.21 $ (USD)
K1673.10410A6	A	10	5/8-11	16	61,2	40	32	14,4	4,8	10	2,8	15	35	45.21 $ (USD)
K1673.10406AN	A	6	5/8-18	16	61,2	40	32	14,4	4,8	10	1,8	15	35	45.21 $ (USD)
K1673.10408AN	A	8	5/8-18	16	61,2	40	32	14,4	4,8	10	2,3	15	35	45.21 $ (USD)
K1673.10410AN	A	10	5/8-18	16	61,2	40	32	14,4	4,8	10	2,8	15	35	45.21 $ (USD)
K1673.10408A7	A	8	3/4-10	20	71	50	35	18	6	12	2,3	20	60	53.70 $ (USD)
K1673.10410A7	A	10	3/4-10	20	71	50	35	18	6	12	2,8	20	60	53.70 $ (USD)
K1673.10412A7	A	12	3/4-10	20	71	50	35	18	6	12	3	20	60	53.70 $ (USD)
K1673.10408AO	A	8	3/4-16	20	71	50	35	18	6	12	2,3	20	60	53.70 $ (USD)
K1673.10410AO	A	10	3/4-16	20	71	50	35	18	6	12	2,8	20	60	53.70 $ (USD)
K1673.10412AO	A	12	3/4-16	20	71	50	35	18	6	12	3	20	60	53.70 $ (USD)
