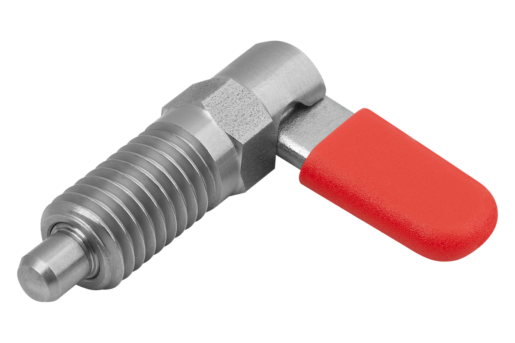

Cam-action indexing plungers
with stop
stainless steel
bright
- Turning the grip through 180° retracts the indexing pin.
- 180° stop with rotation in one direction.
- Optionally available with colored plastic grip caps
Sales unit
$46.72
as low as | plus sales tax
plus shipping and handling
Registered customers are shown the live availability of the item after logging in to the website. Please contact our customer support for assistance.
Added to your shopping cart
Designation
Cam-action indexing plungers
Version 1
with stop
Version 2
left
style
C
Style definition
with threaded sleeve and cap
Main
material
stainless steel
Surface finish
body
bright
Component
material
polypropylene
Component
color
black gray RAL 7021
D=locking pin diameter
10
L1=Handle length
41,5
B
16,6
B1
7
D1
M16
D2
16
Fx30°
2,8
H
10
L
62,8
L3
26
Locknut
without locknut
SW1
16
Spring force
final pressure
F2 approx. N
35
Spring force
initial pressure
F1 approx. N
15
~ CONFLICT MINERALS 3TG status
no intentional 3TG
~ CP65 substance 2 cancer
nickel (metallic)
~ PFAS free?
yes
~ REACH SVHC-free?
yes
~ RoHS conformity
yes, without exemption
~ TSCA 6(H) conformity
yes
Description
Product description
Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.
A stop at 180° prevents the lever rotating further and the indexing pin from extending again.
The rotation direction is defined by selecting a left or right stop side.
A stop at 180° prevents the lever rotating further and the indexing pin from extending again.
The rotation direction is defined by selecting a left or right stop side.
Material
Grip 1.4308.
Threaded sleeve and indexing pin 1.4305.
Spring 1.4310.
Grip cap thermoplast PA.
Threaded sleeve and indexing pin 1.4305.
Spring 1.4310.
Grip cap thermoplast PA.
Version
Threaded sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.
Grip cap in various colors:
-black gray RAL 7021
-pure orange RAL 2004
-colza yellow RAL 1021
-traffic red RAL 3020
-signal green RAL 6032
-traffic blue RAL 5017
-light gray RAL 7035
Indexing pin ground and left bright.
Spring bright.
Grip cap in various colors:
-black gray RAL 7021
-pure orange RAL 2004
-colza yellow RAL 1021
-traffic red RAL 3020
-signal green RAL 6032
-traffic blue RAL 5017
-light gray RAL 7035
Advantages
Turning the grip through 180° retracts the pin.
Optionally available with colored plastic grip caps.
180° stop with rotation in one direction.
Optionally available with colored plastic grip caps.
180° stop with rotation in one direction.
On request
Special versions.
Accessory
Mounting bracket K0638.
Positioning bushings K1290, K1839, K1840.
Positioning bushings K1290, K1839, K1840.
