Cam-action indexing plunger, with hexagon, Form A

go back

News
- NEW Product Innovations
  - Cam-action indexing plunger, with hexagon
    - Cam-action indexing plunger, with hexagon, Form A

Item description/product images

DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material:Grip 1.0503
Threaded sleeve and indexing pin 1.0718
Spring 1.4310
Grip cap thermoplastic PA.
Version:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap in various colours:
- black grey RAL 7021.
- pure orange RAL 2004.
- colza yellow RAL 1021.
- traffic red RAL 3020.
- signal green RAL 6032.
- traffic blue RAL 5017.
- light grey RAL 7035.
Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Sleeves with a hexagon serve as assembly aids.
On request:Special versions.
Accessory:Mounting bracket K0638.
Positioning bushes K1290, K1839, K1840.
Drawing reference:

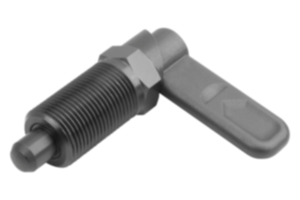

Form A: without grip cap or locknut

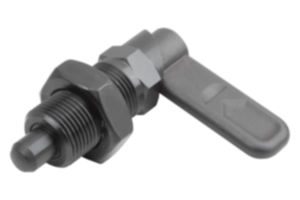

Form B: without grip cap, with locknut
Form C: with grip cap, without locknut

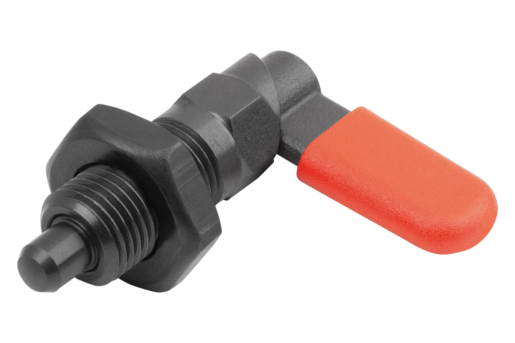

Form D: with grip cap and locknut

Special features:

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	L3	B	B1	H	Fx30°	SW1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K1679.041020	A	10	M20	20	71	50	30	18	6	12	2,8	20	20	60	33.00 $ (USD)
K1679.0410201	A	10	M20x1,5	20	71	50	30	18	6	12	2,8	20	20	60	33.00 $ (USD)
K1679.0408201	A	8	M20x1,5	20	71	50	30	18	6	12	2,3	20	20	60	33.00 $ (USD)
K1679.040410	A	4	M10	10	38,5	25	15	9	3	6	1	10	8	14	24.35 $ (USD)
K1679.040510	A	5	M10	10	38,5	25	15	9	3	6	1,3	10	8	14	24.35 $ (USD)
K1679.040612	A	6	M12	12	47,4	30	19	10,8	3,6	8	1,8	12	8	15	24.78 $ (USD)
K1679.0406161	A	6	M16x1,5	16	61,2	40	26	14,4	4,8	10	1,8	16	15	35	29.69 $ (USD)
K1679.041220	A	12	M20	20	71	50	30	18	6	12	3	20	20	60	33.00 $ (USD)
K1679.040816	A	8	M16	16	61,2	40	26	14,4	4,8	10	2,3	16	15	35	29.69 $ (USD)
K1679.040512	A	5	M12	12	47,4	30	19	10,8	3,6	8	1,3	12	8	15	24.78 $ (USD)
K1679.0408121	A	8	M12x1,5	12	47,4	30	19	10,8	3,6	8	2,3	12	8	15	24.78 $ (USD)
K1679.040610	A	6	M10	10	38,5	25	15	9	3	6	1,8	10	8	14	24.35 $ (USD)
K1679.0412201	A	12	M20x1,5	20	71	50	30	18	6	12	3	20	20	60	33.00 $ (USD)
K1679.0405121	A	5	M12x1,5	12	47,4	30	19	10,8	3,6	8	1,3	12	8	15	24.78 $ (USD)
K1679.040616	A	6	M16	16	61,2	40	26	14,4	4,8	10	1,8	16	15	35	29.69 $ (USD)
K1679.0406101	A	6	M10x1	10	38,5	25	15	9	3	6	1,8	10	8	14	24.35 $ (USD)
K1679.0410161	A	10	M16x1,5	16	61,2	40	26	14,4	4,8	10	2,8	16	15	35	29.69 $ (USD)
K1679.041016	A	10	M16	16	61,2	40	26	14,4	4,8	10	2,8	16	15	35	29.69 $ (USD)
K1679.040812	A	8	M12	12	47,4	30	19	10,8	3,6	8	2,3	12	8	15	24.78 $ (USD)
K1679.0406121	A	6	M12x1,5	12	47,4	30	19	10,8	3,6	8	1,8	12	8	15	24.78 $ (USD)
K1679.0408161	A	8	M16x1,5	16	61,2	40	26	14,4	4,8	10	2,3	16	15	35	29.69 $ (USD)
K1679.0404101	A	4	M10x1	10	38,5	25	15	9	3	6	1	10	8	14	24.35 $ (USD)
K1679.0405101	A	5	M10x1	10	38,5	25	15	9	3	6	1,3	10	8	14	24.35 $ (USD)
K1679.040820	A	8	M20	20	71	50	30	18	6	12	2,3	20	20	60	33.00 $ (USD)
