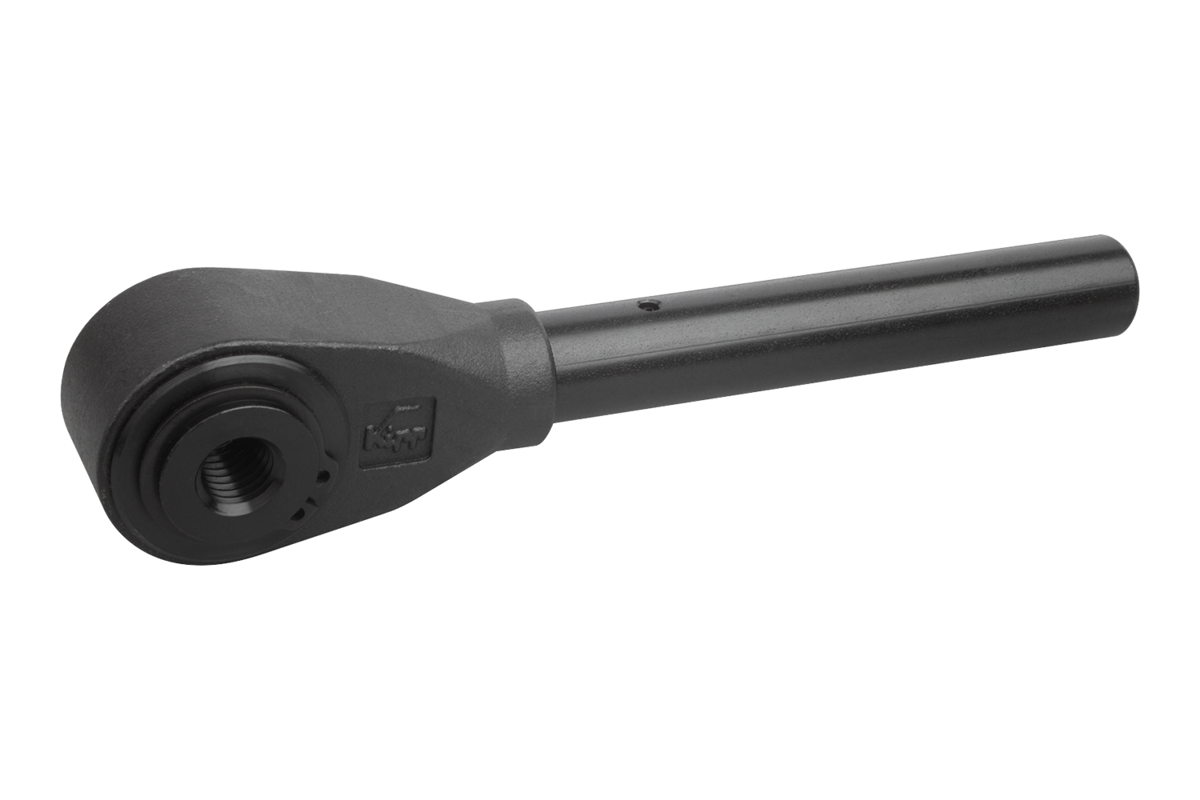

Ratchet levers with internal thread

Ratchet levers with internal thread

go back

Item description/product images

DescriptionMaterial:Housing carbon steel, tension nut and tension pin case-hardened steel.Version:Black oxidised.
Matt-finished or high-polish chrome-plated versions available at extra charge.
Note:Tension Pin A standard version (for ratchet action):
Use for clamping and releasing in limited space and when considerable travel is involved. In order to change the tightening direction, the handle must be reversed by 180°.

Tension Pin B special version:
Use for clamping and releasing in limited space and when short travel is involved. The handle is not reversed in order to change the tightening direction. It must be pulled out before it can be engaged in the next slot.

Clamp with H7 reamed hole and DIN 6885/1 keyway.
On request:Other thread, reamed hole and square socket sizes.
Dimension “E” available in other lengths at extra charge.
Special version: Tension pin B.
Special features:


Ratchet levers with internal thread

Item selection/filter

Order No.

Kind of fasteningXA=Handle lengthA2DD1D2D3D4HH1H2H3No. of
index slots
K0128.310internal threadM10150482233172236314,515,537 135.87 $ (USD)
K0128.312internal threadM12150482233172236314,515,537 135.87 $ (USD)
K0128.314internal threadM141805427382026433861948 162.53 $ (USD)
K0128.316internal threadM161805427382026433861948 162.53 $ (USD)
K0128.318internal threadM182307035452430514262148 209.01 $ (USD)
K0128.320internal threadM202307035452430514262148 209.01 $ (USD)
K0128.322internal threadM2230080425628356147623,549 285.86 $ (USD)
K0128.324internal threadM2430080425628356147623,549 285.86 $ (USD)
K0128.327internal threadM2730080425628356147623,549 285.86 $ (USD)
K0128.330internal threadM304001106075323882537,526,5511 545.68 $ (USD)
K0128.336internal threadM364001106075323882537,526,5511 545.68 $ (USD)
K0128.342internal threadM424001106075323882537,526,5511 545.68 $ (USD)
