Item description/product images

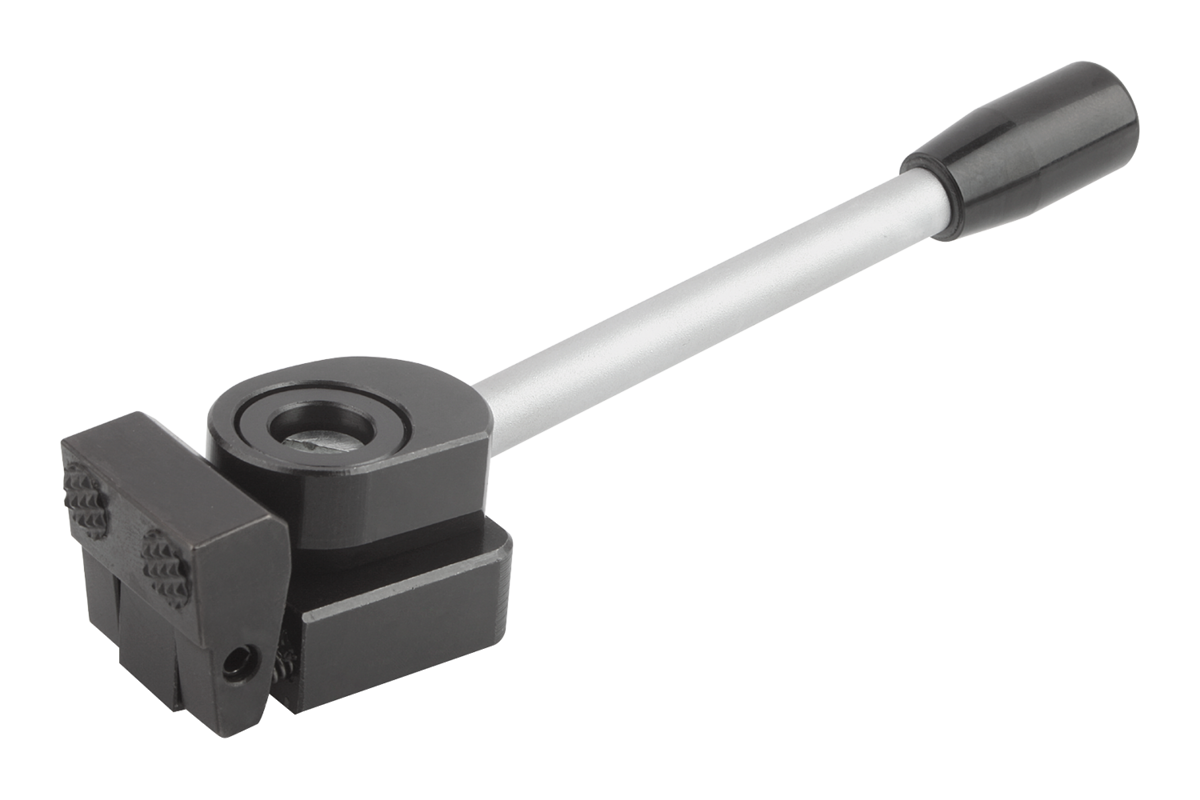

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:This is a quick-action side clamp where workpieces are clamped by rotating a cam wheel which exerts pressure on the swivel jaw, simultaneously producing a positive down force.
Using the centring bush (see diagram), the side clamp can be mounted and positioned on a modular grid system.

The versions K0035.006010, K0035.006015, K0035.006030 and K0035.006035 have 2 round carbide inserts.
Clamping force:K0035.006... = 3800 N
K0035.010... = 7200 N

Drawings

Side clamps

Item selection/filter

Order No.FormVersionABDD1EHH1KLL1RClamping
force
kN
CADAcc.PriceOrder
K0035.006010Bright38,52512M6ø 824453,522201103,8on request
K0035.010010Bright58,54018M1012,739745,53731,51437,2on request
K0035.006030Bleft38,52512M6ø 824453,522201103,8on request
K0035.010030Bleft58,54018M1012,739745,53731,51437,2on request
