{"product":{"productId":"agid.1387","price":19.12,"name":"INDEXING PLUNGER WO. GROOVE SIZE:1D1=M10X1, FORM:H STAINLESS STEEL, NOTHARDENED, COMP:THERMOPLASTIC, BLACKGRAY RAL7021"},"currency":"USD"}

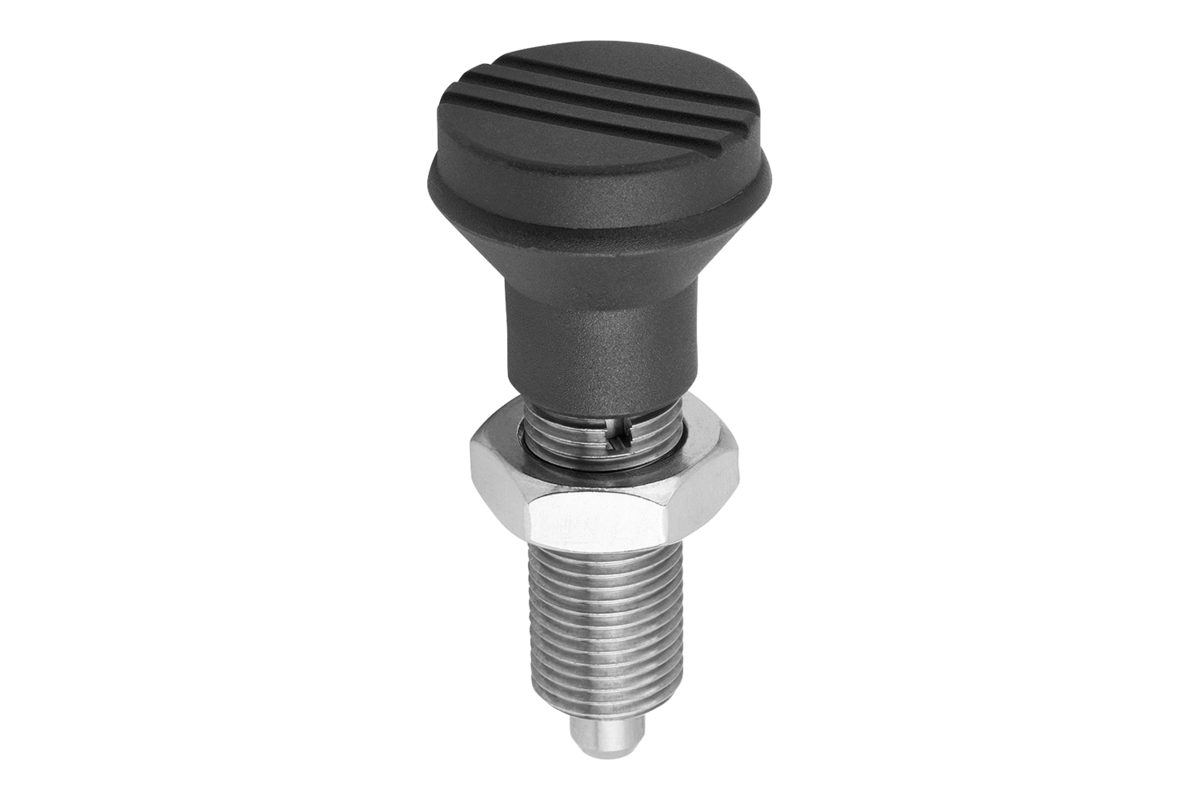

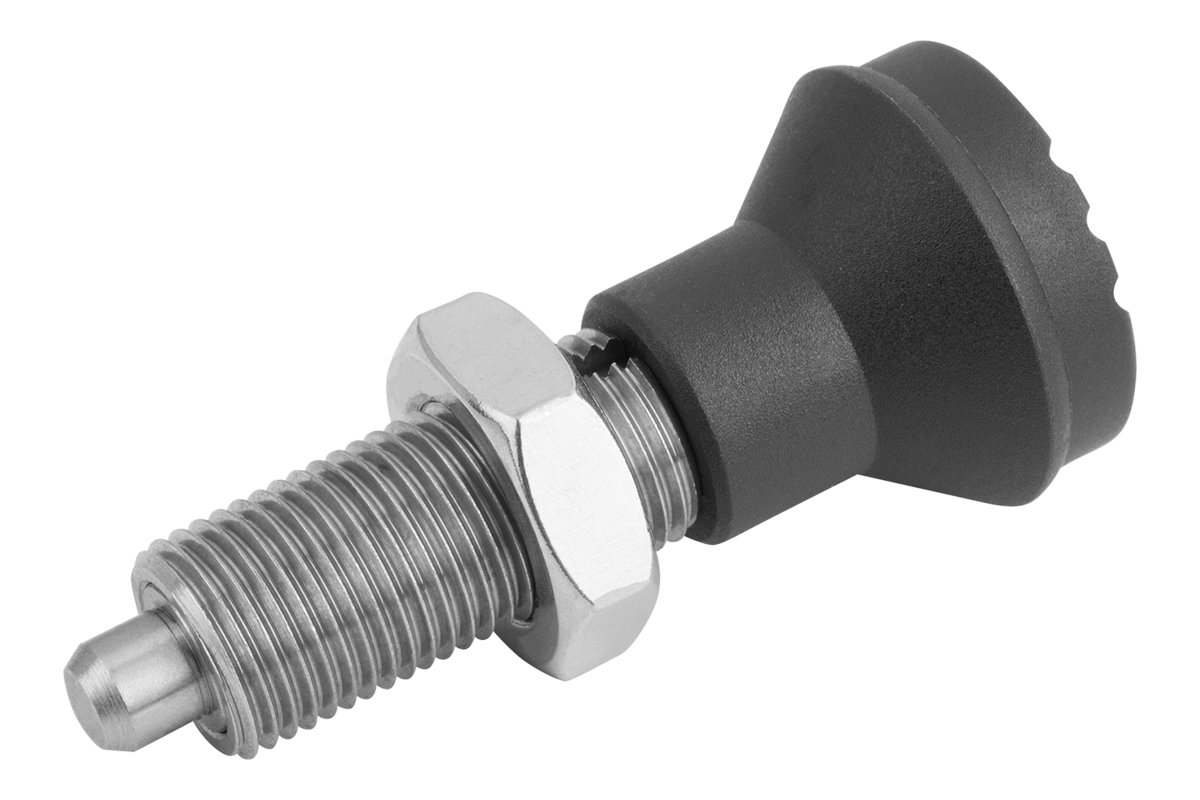

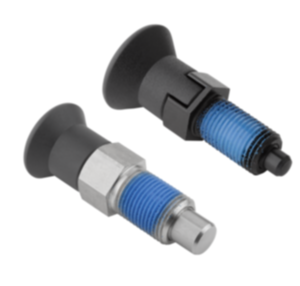

Indexing plunger
without locking slot
stainless steel
not hardened
- Indexing plungers facilitate indexing and locking
- Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
- High stability
- Material: steel or stainless steel
Sales unit
$19.12 / pcs.
as low as | plus sales tax
plus shipping and handling
Added to your shopping cart
D1=Thread
M10x1
D=pin diameter
5
L=Length
47
Component
color
black gray RAL 7021
Component
material
thermoplastic
D2
21
Fx30°
1,3
Item
Indexing plunger
L1
24
L2
18
Locknut
with locknut
Main
material
stainless steel
Product type
without collar
SW
17
Size
1
Spring force
final pressure
F2 approx. N
12
Spring force
initial pressure
F1 approx. N
5
Steel code
1.4305
Surface finish
body
not hardened
Travel
S
5
Version 1
without locking slot
Version 2
not hardened
style
H
Description
Material
Steel version:
threaded sleeve and indexing pin, free-cutting steel.
Stainless steel version:
Threaded sleeve 1.4305.
Locking pin hardened 1.4034.
Locking pin not hardened 1.4305.
Mushroom grip. thermoplastic.
Version
Steel version:
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin not hardened and ground, bright.
Mushroom grip black gray RAL 7021.
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin not hardened and ground, bright.
Mushroom grip black gray RAL 7021.
Note
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
A screw-in washer can be supplied to help screw in the indexing plungers. The washer is slid beneath the disengaged mushroom knob so that the carrier pins engage in the slot.
A screw-in washer can be supplied to help screw in the indexing plungers. The washer is slid beneath the disengaged mushroom knob so that the carrier pins engage in the slot.
On request
Special versions.
