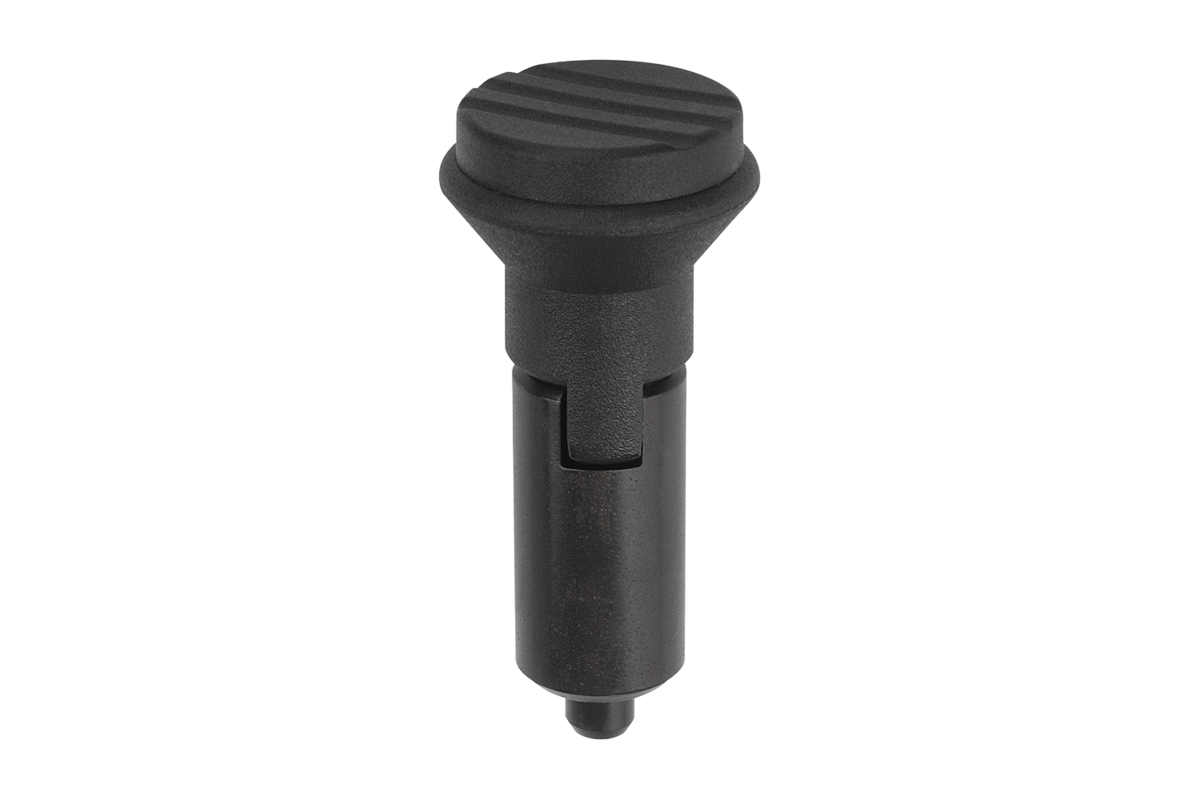

Indexing plungers without collar, Form M
K0347_M

Indexing plungers without collar, Form M

go back

Item description/product images

DescriptionMaterial:Version:Steel version:
Indexing pin hardened, ground, black oxidised.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
Form M is recommended for applications where the indexing plungers should remain disengaged over an extended period and the pin prevented from springing back.
Special grips can be fitted on the projecting threaded pin of Form N. This pin is also suitable for actuating the indexing plunger e.g. automatically (program-controlled) with the aid of a pneumatic cylinder or remote controlled with bowden cables.
To weld the indexing plungers we recommend inert gas shielded welding with TIG welding equipment.
On request:Special versions.Special features:
RoHS

Drawings

Indexing plungers without collar, Form M

Item selection/filter

Order No.FormMain
material
Surface finish
body
DD1D2LL1HFx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0347.2105Msteelhardened512214724-1,3512on request
K0347.2206Msteelhardened614255628-1,8614on request
K0347.2308Msteelhardened818337436-2,31535on request
K0347.2410Msteelhardened1022338040-2,81534on request
K0347.02105Mstainless steelhardened512214724-1,3512on request
K0347.02206Mstainless steelhardened614255628-1,8614on request
K0347.02308Mstainless steelhardened818337436-2,31535on request
K0347.02410Mstainless steelhardened1022338040-2,81534on request
K0347.12105Mstainless steelnot hardened512214724-1,3512on request
K0347.12206Mstainless steelnot hardened614255628-1,8614on request
K0347.12308Mstainless steelnot hardened818337436-2,31535on request
K0347.12410Mstainless steelnot hardened1022338040-2,81534on request
