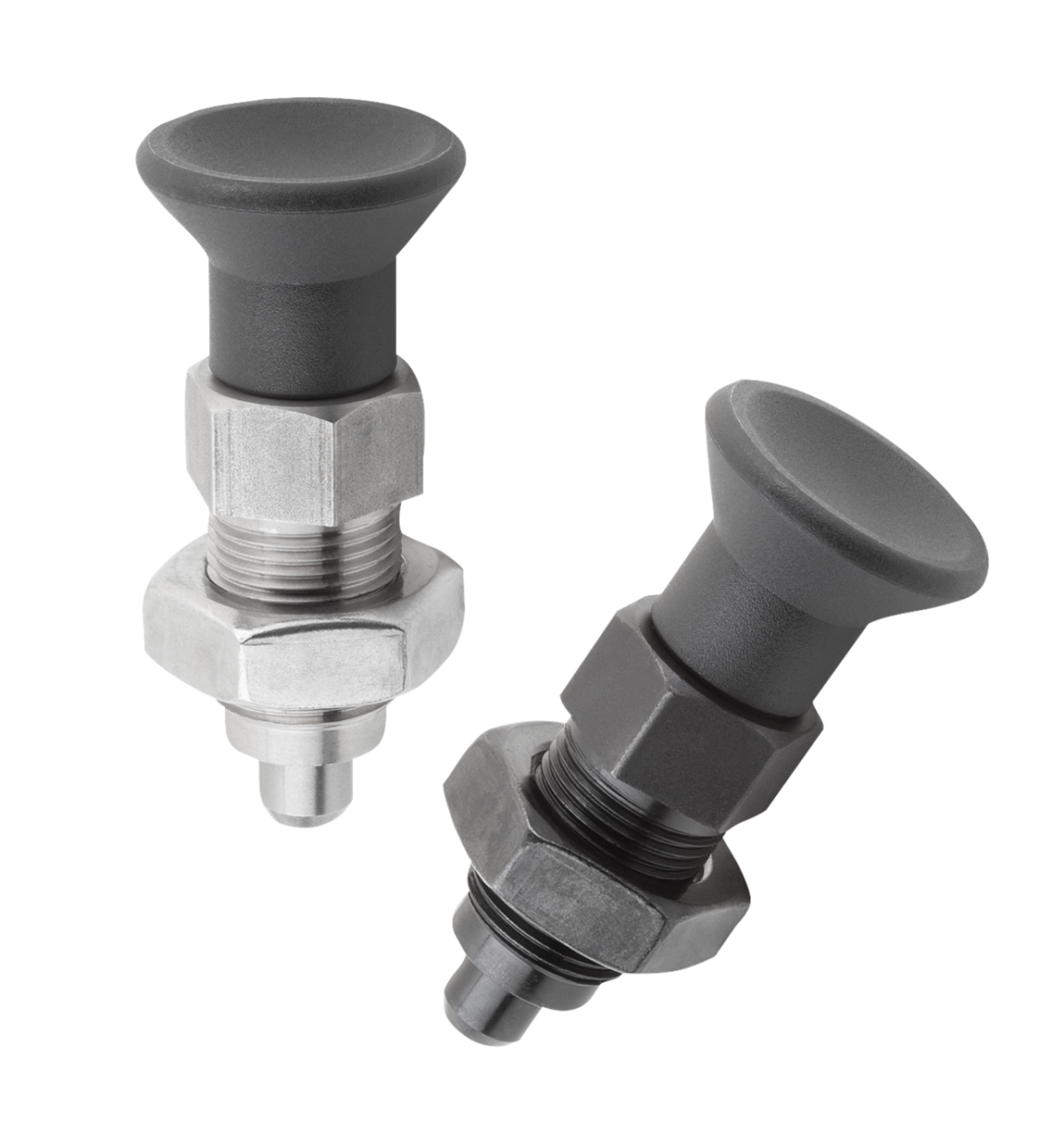

{"product":{"productId":"agid.16466","price":32.29,"name":"Premium - Indexing plungers, steel or stainless steel with plastic mushroom grip, cylindrical indexing pin and locknut"},"currency":"USD"}
- Higher processing requirements
- centering on the threaded body for positioning accuracy

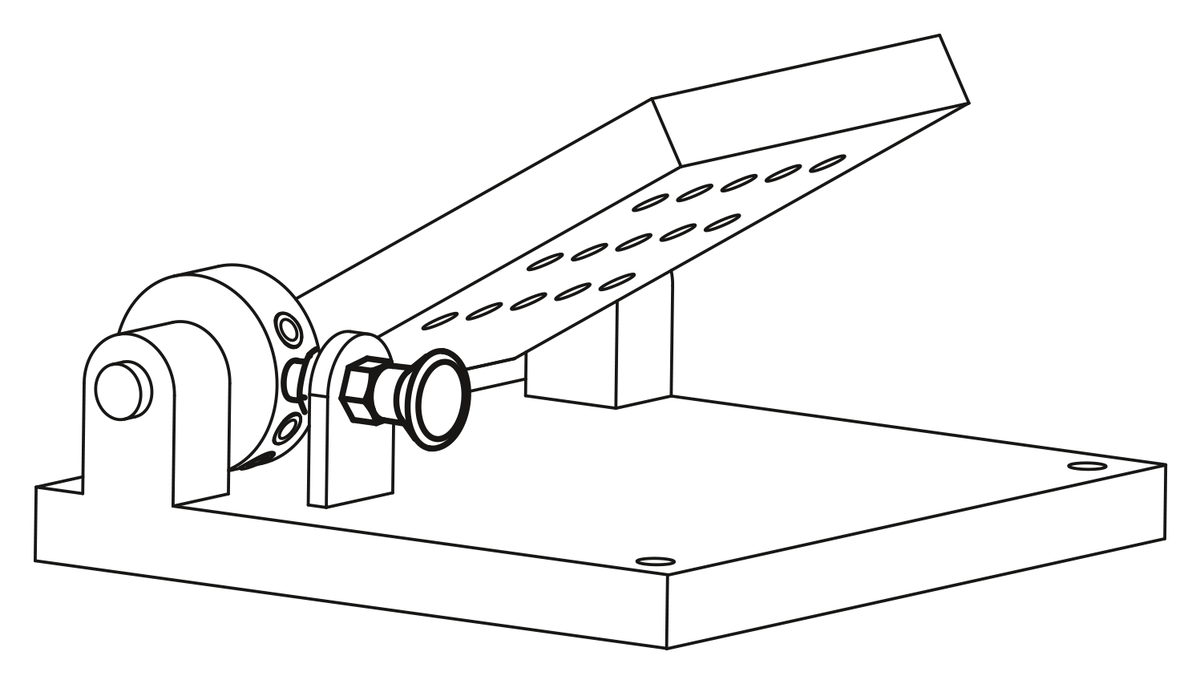

- Indexing plungers facilitate indexing and locking
- Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
- High stability
Description
Material
Steel version:
Threaded sleeve and indexing pin free-cutting steel.
Stainless steel version:
Threaded sleeve 1.4305.
Indexing pin 1.4034.
Mushroom grip thermoplastic.
Thread lock polyamide.
Version
Steel version:
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Mushroom grip black gray RAL7021.
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.
Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Mushroom grip black gray RAL7021.
Assembly
When using the threaded body centering, it is recommended the receiving reamed hole be machined before tapping.
On request
Special versions.
Accessory

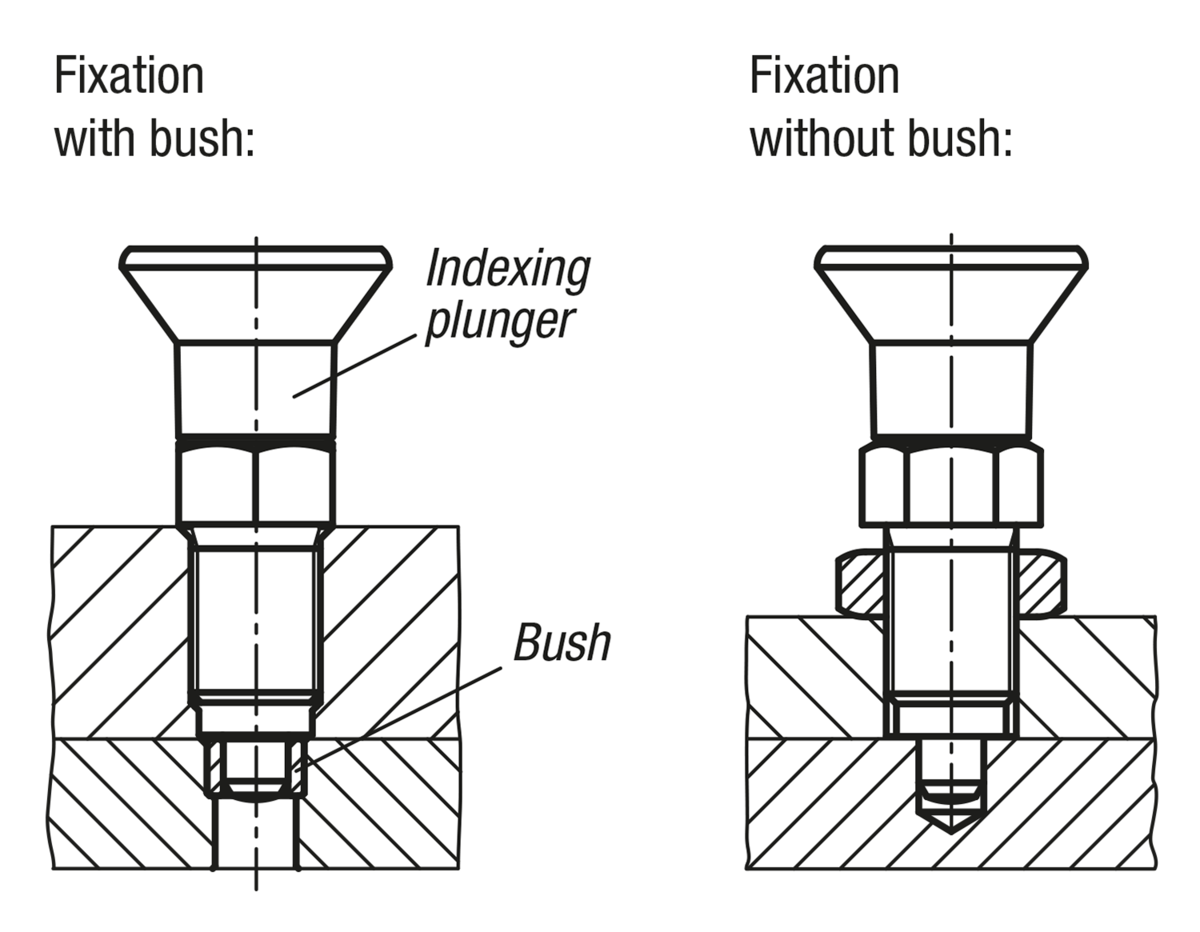

Matching cylindrical bushing K0736.
Locknut K0700.
Spacer rings K0665.
Locknut K0700.
Spacer rings K0665.
