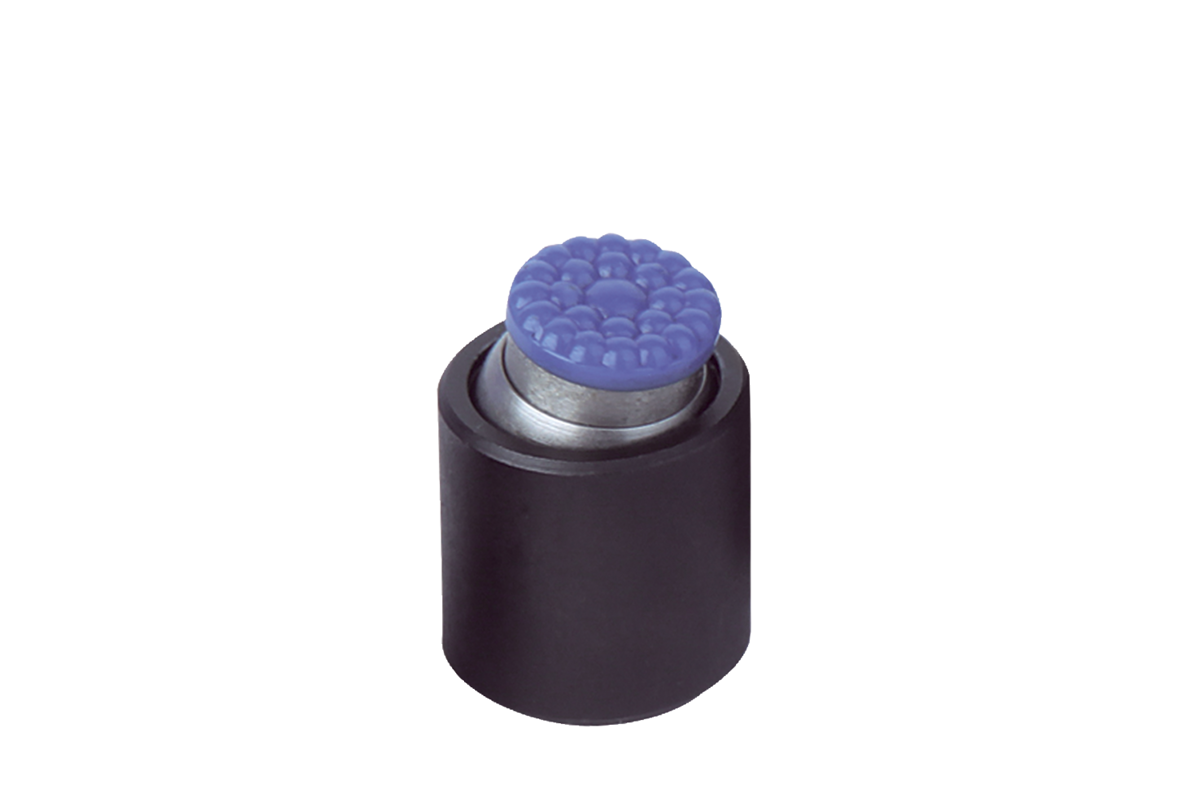

Self-aligning pads with O-ring and exchangeable inserts, Form P, stainless steel insert with polythene face
K0285_P

Self-aligning pads with O-ring and exchangeable inserts, Form P,...

go back

Item description/product images

DescriptionMaterial:Body carbon steel.
Ball rust and acid resistant steel.
Insert:
Form P stainless steel.
Version:Body tempered, black oxidised.
Ball hardened, bright.
Insert:
Form P polyurethane surface, Shore 60.
Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.
In addition, they serve as stops, supports and thrust pads in fixtures and toolmaking.
The ball can be removed from the housing by applying light pressure to the socket head screw.

Ball secured against rotation.
Advantages:Highly cost-effective as inserts can be exchanged.
The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.
Special features:
RoHS

Drawings

Self-aligning pads with O-ring and exchangeable inserts, Form P, stainless steel insert with polythene face

Item selection/filter

Order No.FormD1D2D3D4HH1H2TBall-ØOrder No.
stainless steel insert,
polyurethane surface
CADAcc.PriceOrder
K0285.617X024P17M6101024612713K0385.10126 on request
K0285.619X026P19M8121326612815K0385.12126 on request
K0285.624X030P24M10161630612820K0385.16126 on request
K0285.630X032P30M12202132612923K0385.20126 on request
K0285.636X038P36M122527386121128K0385.25126 on request
