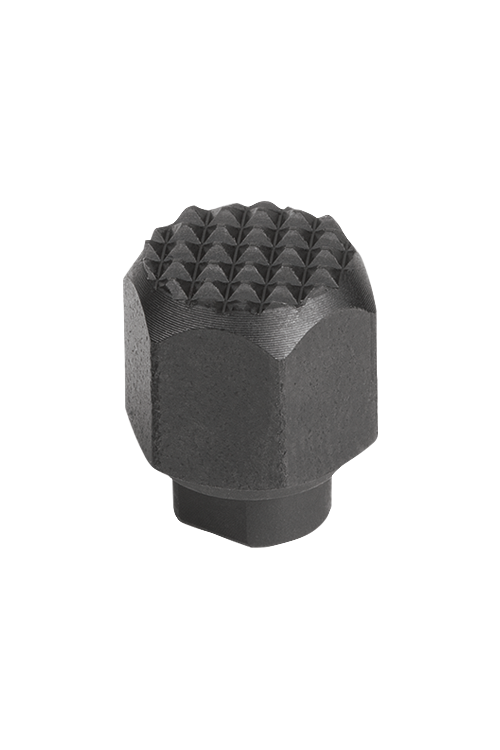

      - Self-aligning pads, self-righting, Form J, press fit, flattened ball, with diamond grip

Item description/product images

DescriptionMaterial:Ball high-carbon steel, ball seat steel.Version:Ball phosphated, ball seat hardened.Note:The self-aligning pads serve as stops, rests and thrust pads in fixture construction.
The seating face returns to the start position when the load is removed.

Ball secured against rotation.

Drawings

Item selection/filter

Order No.	Form	D2	D3	H	E	T	SW1	SW2	Ball-Ø	Load rating max. kN (static load only)	Price
K1164.603	J	M3	9	13	11,5	5	10	6	9	8	74.74 $ (USD)
K1164.604	J	M4	12	18	15	6	13	8	12	16	100.22 $ (USD)
K1164.605	J	M5	18	25	21,9	8	19	10	17	32	126.86 $ (USD)
K1164.606	J	M6	26	36	31,2	10	27	16	25	64	130.36 $ (USD)
K1164.608	J	M8	30	40	34,6	12	30	17	28	90	131.69 $ (USD)
