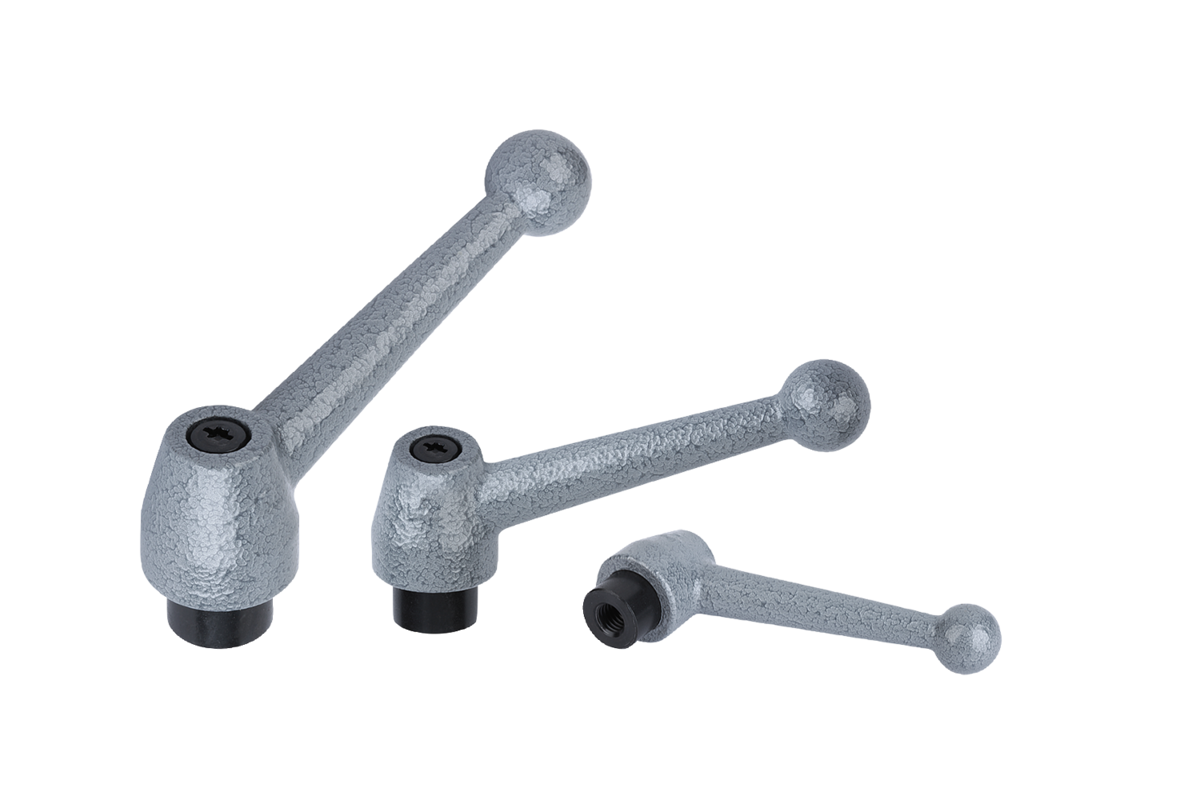

K0120 InchAdjustable Handles, Classic ball style, steel, external thread,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle steel 1.0401.
All other steel parts grade 5.8.Version:Handle painted silver-grey hammer-tone.
Steel parts black oxidised.Note for ordering:Screws from 70 mm long have 60 mm long threads.
Note:For other dimensions see clamping levers with internal threads.On request:Other threads, screw lengths and special versions.
Dimension “H1” available in other lengths at extra charge.Drawing reference:1) flat point DIN EN ISO 4753 |
Order No.
| Main
material | Size | X | D | D1 | D2 | H | H1 | H3 | H4 | A | A1 | No. of
teeth
| L | CAD | Acc. | Price | Order |
|---|
| K0120.1A4X20 | steel | 1 | 3/8-16 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 20 |  | | 31.47 $ (USD) | | | K0120.1A4X30 | steel | 1 | 3/8-16 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 30 | | | 31.47 $ (USD) | | | K0120.1A4X40 | steel | 1 | 3/8-16 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 40 | | | 32.96 $ (USD) | | | K0120.1A4X45 | steel | 1 | 3/8-16 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 45 | | | 32.96 $ (USD) | | | K0120.1A4X50 | steel | 1 | 3/8-16 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 50 | | | 32.96 $ (USD) | | | K0120.1A4X60 | steel | 1 | 3/8-16 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 60 | | | 32.96 $ (USD) | | | K0120.1A5X20 | steel | 1 | 1/2-13 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 20 | | | 31.47 $ (USD) | | | K0120.1A5X30 | steel | 1 | 1/2-13 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 30 | | | 31.47 $ (USD) | | | K0120.1A5X40 | steel | 1 | 1/2-13 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 40 | | | 32.96 $ (USD) | | | K0120.1A5X45 | steel | 1 | 1/2-13 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 45 | | | 32.96 $ (USD) | | | K0120.1A5X50 | steel | 1 | 1/2-13 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 50 | | | 32.96 $ (USD) | | | K0120.1A5X60 | steel | 1 | 1/2-13 | 19 | 28 | 20 | 40,5 | 12 | 65 | 68,5 | 83 | 107 | 24 | 60 | | | 32.96 $ (USD) | | | K0120.2A5X25 | steel | 2 | 1/2-13 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 25 | | | 42.27 $ (USD) | | | K0120.2A5X30 | steel | 2 | 1/2-13 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 30 | | | 42.27 $ (USD) | | | K0120.2A5X40 | steel | 2 | 1/2-13 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 40 | | | 43.87 $ (USD) | | | K0120.2A5X45 | steel | 2 | 1/2-13 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 45 | | | 43.87 $ (USD) | | | K0120.2A5X50 | steel | 2 | 1/2-13 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 50 | | | 43.87 $ (USD) | | | K0120.2A5X60 | steel | 2 | 1/2-13 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 60 | | | 43.87 $ (USD) | | | K0120.2A6X25 | steel | 2 | 5/8-11 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 25 | | | 42.27 $ (USD) | | | K0120.2A6X30 | steel | 2 | 5/8-11 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 30 | | | 42.27 $ (USD) | | | K0120.2A6X40 | steel | 2 | 5/8-11 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 40 | | | 43.87 $ (USD) | | | K0120.2A6X45 | steel | 2 | 5/8-11 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 45 | | | 43.87 $ (USD) | | | K0120.2A6X50 | steel | 2 | 5/8-11 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 50 | | | 43.87 $ (USD) | | | K0120.2A6X60 | steel | 2 | 5/8-11 | 23 | 35 | 25 | 51,5 | 12 | 79,5 | 84 | 108 | 138,5 | 26 | 60 | | | 43.87 $ (USD) | | | K0120.3A6X30 | steel | 3 | 5/8-11 | 30 | 43 | 30 | 60 | 12 | 93 | 97,5 | 132 | 168 | 36 | 30 | | | 58.41 $ (USD) | | | K0120.3A6X40 | steel | 3 | 5/8-11 | 30 | 43 | 30 | 60 | 12 | 93 | 97,5 | 132 | 168 | 36 | 40 | | | 60.34 $ (USD) | | | K0120.3A6X50 | steel | 3 | 5/8-11 | 30 | 43 | 30 | 60 | 12 | 93 | 97,5 | 132 | 168 | 36 | 50 | | | 60.34 $ (USD) | | | K0120.3A6X60 | steel | 3 | 5/8-11 | 30 | 43 | 30 | 60 | 12 | 93 | 97,5 | 132 | 168 | 36 | 60 | | | 60.34 $ (USD) | | | K0120.3A7X30 | steel | 3 | 3/4-10 | 30 | 43 | 30 | 60 | 12 | 93 | 97,5 | 132 | 168 | 36 | 30 | | | 58.41 $ (USD) | | | K0120.3A7X40 | steel | 3 | 3/4-10 | 30 | 43 | 30 | 60 | 12 | 93 | 97,5 | 132 | 168 | 36 | 40 | | | 60.34 $ (USD) | | | K0120.3A7X50 | steel | 3 | 3/4-10 | 30 | 43 | 30 | 60 | 12 | 93 | 97,5 | 132 | 168 | 36 | 50 | | | 60.34 $ (USD) | | | K0120.3A7X60 | steel | 3 | 3/4-10 | 30 | 43 | 30 | 60 | 12 | 93 | 97,5 | 132 | 168 | 36 | 60 | | | 60.34 $ (USD) | |
