Adjustable Tension Levers in stainless steel, with internal...

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Adjustable Tension Levers in stainless steel with internal thread
      - Adjustable Tension Levers in stainless steel, with internal thread, metric, 20 degrees

Item description/product images

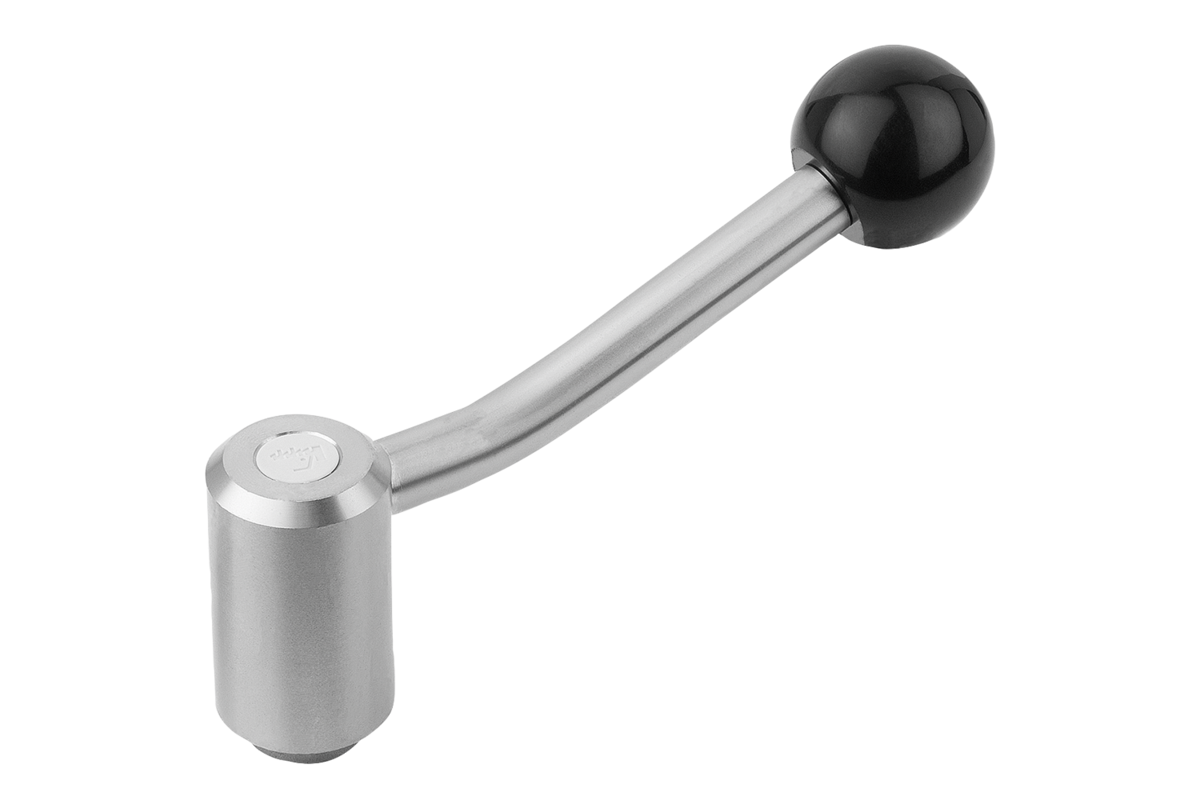

DescriptionMaterial:Steel parts stainless steel 1.4305.
Ball knob black plastic.Version:Steel parts bright.
Ball knob polished.On request:Other internal threads and special versions.
Dimensions "H1", "A" and "A1" available in other lengths at extra charge.

Drawings

Item selection/filter

Order No.	Form	Size	X	T	D	D1	D2	D3	H	H1	H2	H3	H4	A	A2	No. of teeth	Price
K0109.1081	20°	1	M8	14	16	24	25	10	44,5	4,5	37	58,5	49,5	88	15	22	on request
K0109.1101	20°	1	M10	14	16	24	25	10	44,5	4,5	37	58,5	49,5	88	15	22	on request
K0109.2101	20°	2	M10	17	19	28	32	12	51,5	5,5	42	68,5	57,5	106	15	24	on request
K0109.2121	20°	2	M12	17	19	28	32	12	51,5	5,5	42	68,5	57,5	106	15	24	on request
K0109.3121	20°	3	M12	23	23	33	32	13	58	6	47	81	65	128,5	15	26	on request
K0109.3161	20°	3	M16	23	23	33	32	13	58	6	47	81	65	128,5	15	26	on request
K0109.4161	20°	4	M16	27	30	41	32	13	68,5	7,5	56,5	89,5	76,5	128,5	15	36	on request
K0109.4201	20°	4	M20	27	30	41	32	13	68,5	7,5	56,5	89,5	76,5	128,5	15	36	on request
