Cam Lever with plastic handle with internal thread, steel or...

go back

Products
- Adjustable Handles
  - Cam Levers
    - Cam Levers with plastic handle with internal and external thread, steel or stainless steel
      - Cam Lever with plastic handle with internal thread, steel or stainless steel, metric

Item description/product images

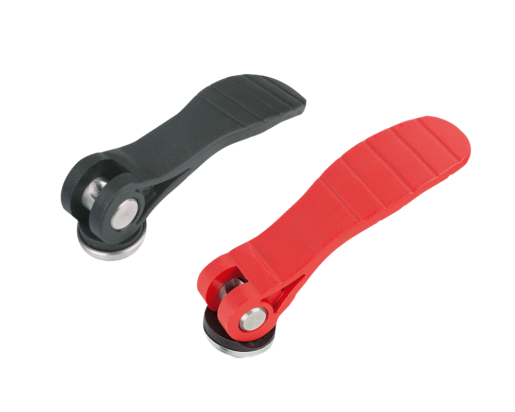

DescriptionMaterial:Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue passivated or bright stainless steel.Note:Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.
Special features:

Drawings

Item selection/filter

Order No.	Component material	Main colour	D	D1	D2	B	B1	H	H1	A	A1	Stroke S	Clamping force F (kN)	Hand force FH N	Price
K0646.1521105	steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	on request
K0646.1521106	steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	on request
K0646.2521108	steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	1,5	5	170	on request
K0646.1531105	stainless steel	black	M5	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	on request
K0646.1531106	stainless steel	black	M6	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	on request
K0646.2531108	stainless steel	black	M8	27,1	11	33	24,2	16,2	27,7	100	110	1,5	5	170	on request
K0646.15218405	steel	red	M5	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	on request
K0646.15218406	steel	red	M6	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	on request
K0646.25218408	steel	red	M8	27,1	11	33	24,2	16,2	27,7	100	110	1,5	5	170	on request
K0646.15318405	stainless steel	red	M5	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	on request
K0646.15318406	stainless steel	red	M6	18,1	9	22	16	14	23,4	71,5	79,6	1,15	2,5	125	on request
K0646.25318408	stainless steel	red	M8	27,1	11	33	24,2	16,2	27,7	100	110	1,5	5	170	on request
