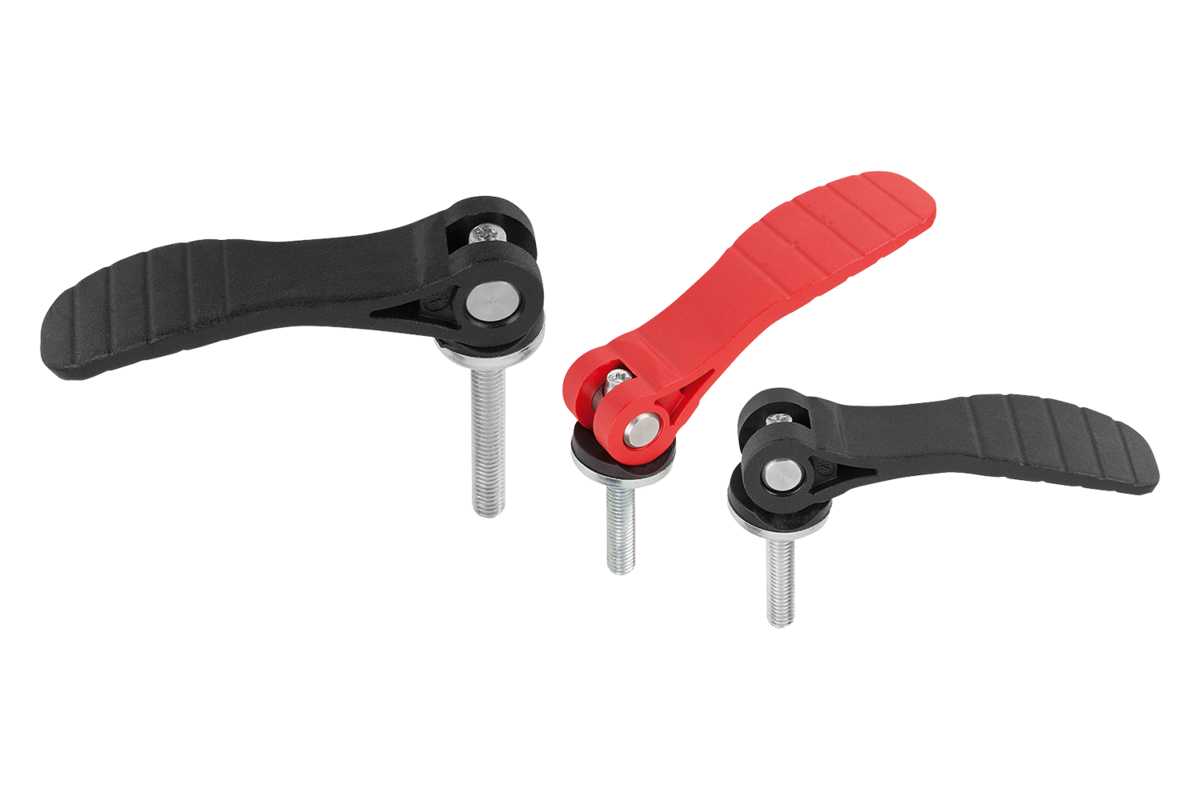

K0648_AG InchCam Lever with plastic handle with external thread, steel or... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue passivated or bright stainless steel.Note:Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.Drawing reference:1) setscrew for fine adjustment of lever |
| Order No. | Component
material | Main
colour | D | D1 | D2 | B | B1 | H | H1 | A | A1 | L | Travel
S | Clamping
force
F (kN) | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| K0648.15211A1X20 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 |  | | 12.08 $ (USD) | | | K0648.15211A1X30 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 12.08 $ (USD) | | | K0648.15211A1X40 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 12.94 $ (USD) | | | K0648.15211A1X50 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 12.94 $ (USD) | | | K0648.15211A2X20 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 12.08 $ (USD) | | | K0648.15211A2X30 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 12.08 $ (USD) | | | K0648.15211A2X40 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 12.94 $ (USD) | | | K0648.15211A2X50 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 12.94 $ (USD) | | | K0648.25211A3X25 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 14.22 $ (USD) | | | K0648.25211A3X30 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 14.22 $ (USD) | | | K0648.25211A3X40 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 14.79 $ (USD) | | | K0648.25211A3X50 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 14.79 $ (USD) | | | K0648.25211A4X25 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 14.22 $ (USD) | | | K0648.25211A4X30 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 14.22 $ (USD) | | | K0648.25211A4X40 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 14.79 $ (USD) | | | K0648.25211A4X50 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 14.79 $ (USD) | | | K0648.15311A1X20 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 19.31 $ (USD) | | | K0648.15311A1X30 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 19.31 $ (USD) | | | K0648.15311A1X40 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 20.62 $ (USD) | | | K0648.15311A1X50 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 20.62 $ (USD) | | | K0648.15311A2X20 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 19.31 $ (USD) | | | K0648.15311A2X30 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 19.31 $ (USD) | | | K0648.15311A2X40 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 20.62 $ (USD) | | | K0648.15311A2X50 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 20.62 $ (USD) | | | K0648.25311A3X25 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 22.62 $ (USD) | | | K0648.25311A3X30 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 22.62 $ (USD) | | | K0648.25311A3X40 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 24.20 $ (USD) | | | K0648.25311A3X50 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 24.20 $ (USD) | | | K0648.25311A4X25 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 22.62 $ (USD) | | | K0648.25311A4X30 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 22.62 $ (USD) | | | K0648.25311A4X40 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 24.20 $ (USD) | | | K0648.25311A4X50 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 24.20 $ (USD) | | | K0648.152184A1X20 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 11.83 $ (USD) | | | K0648.152184A1X30 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 11.83 $ (USD) | | | K0648.152184A1X40 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 12.64 $ (USD) | | | K0648.152184A1X50 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 12.64 $ (USD) | | | K0648.152184A2X20 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 11.83 $ (USD) | | | K0648.152184A2X30 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 11.83 $ (USD) | | | K0648.152184A2X40 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 12.64 $ (USD) | | | K0648.152184A2X50 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 12.64 $ (USD) | | | K0648.252184A3X25 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 13.90 $ (USD) | | | K0648.252184A3X30 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 13.90 $ (USD) | | | K0648.252184A3X40 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 14.41 $ (USD) | | | K0648.252184A3X50 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 14.41 $ (USD) | | | K0648.252184A4X25 | steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 13.90 $ (USD) | | | K0648.252184A4X30 | steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 13.90 $ (USD) | | | K0648.252184A4X40 | steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 14.41 $ (USD) | | | K0648.252184A4X50 | steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 14.41 $ (USD) | | | K0648.153184A1X20 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 18.81 $ (USD) | | | K0648.153184A1X30 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 18.81 $ (USD) | | | K0648.153184A1X40 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 20.15 $ (USD) | | | K0648.153184A1X50 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 20.15 $ (USD) | | | K0648.153184A2X20 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 18.81 $ (USD) | | | K0648.153184A2X30 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 18.81 $ (USD) | | | K0648.153184A2X40 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 20.15 $ (USD) | | | K0648.153184A2X50 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 20.15 $ (USD) | | | K0648.253184A3X25 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 22.06 $ (USD) | | | K0648.253184A3X30 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 22.06 $ (USD) | | | K0648.253184A3X40 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 23.61 $ (USD) | | | K0648.253184A3X50 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 23.61 $ (USD) | | | K0648.253184A4X25 | stainless steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 22.06 $ (USD) | | | K0648.253184A4X30 | stainless steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 22.06 $ (USD) | | | K0648.253184A4X40 | stainless steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 23.61 $ (USD) | | | K0648.253184A4X50 | stainless steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 23.61 $ (USD) | |
