Product groups

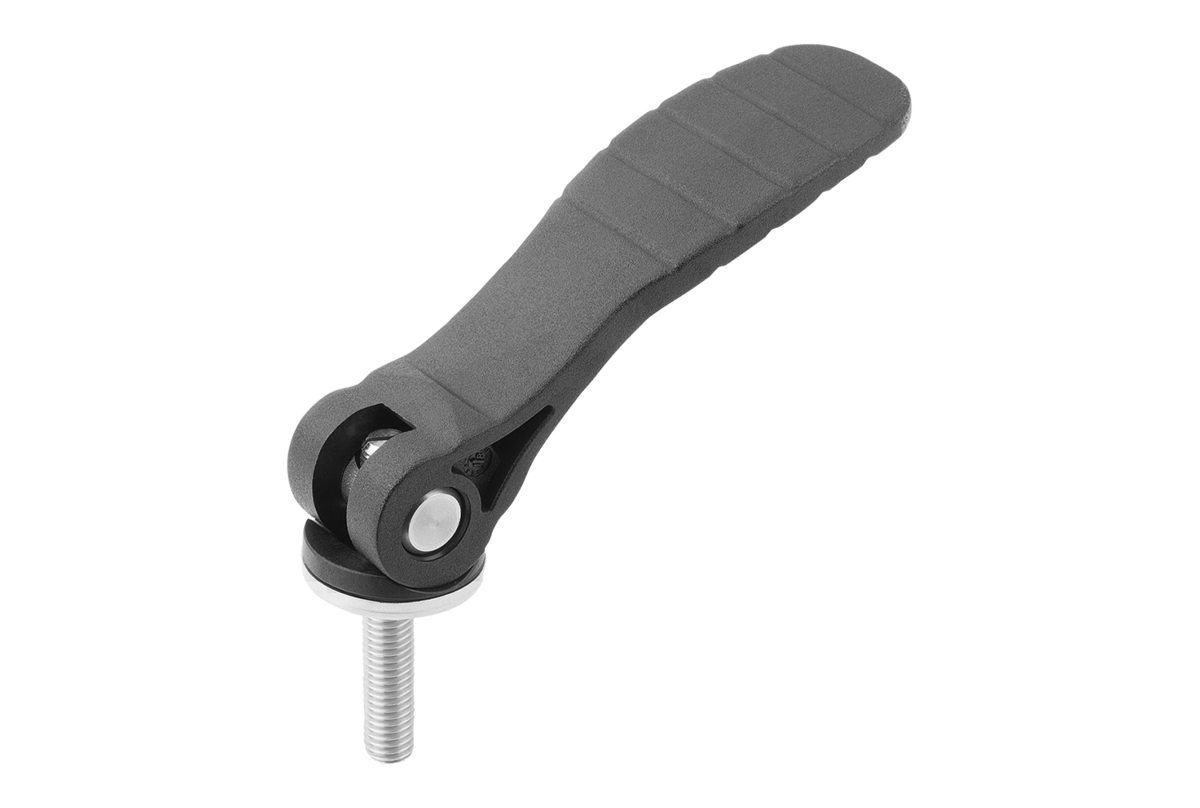

Cam Lever with plastic handle
with external thread, steel or stainless steel, metric
K0648_AG Metric

Cam Lever with plastic handle with external thread, steel or...

go back

Item description/product images

DescriptionMaterial:Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue passivated or bright stainless steel.
Note:Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.
Drawing reference:

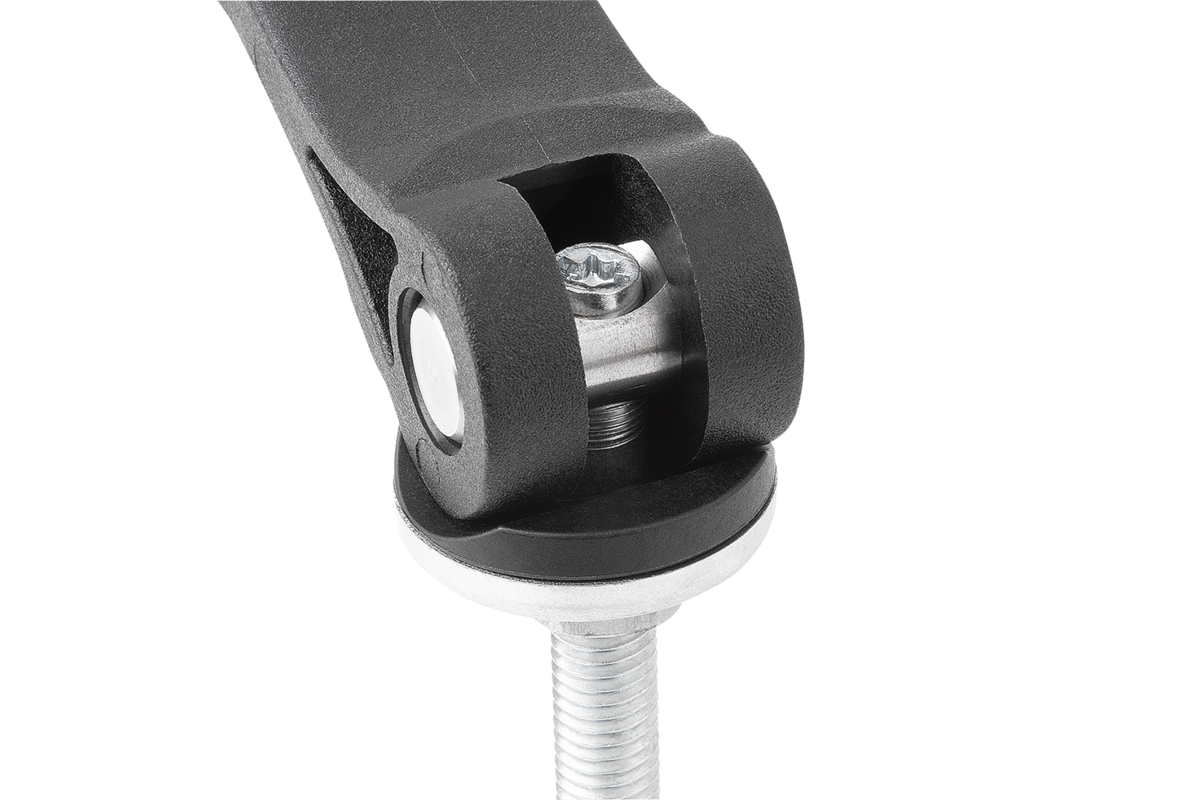

1) setscrew for fine adjustment of lever
Special features:
RoHS

Drawings

Cam Lever with plastic handle
with external thread, steel or stainless steel, metric

Item selection/filter

Order No.Component
material
Main
colour
DD1D2BB1HH1AA1LStroke
S
Clamping
force
F (kN)
Hand
force
FH N
CADAcc.PriceOrder
K0648.1521105X20steelblackM518,1922161423,471,579,6201,152,5125 on request
K0648.1521105X30steelblackM518,1922161423,471,579,6301,152,5125 on request
K0648.1521105X40steelblackM518,1922161423,471,579,6401,152,5125 on request
K0648.1521105X50steelblackM518,1922161423,471,579,6501,152,5125 on request
K0648.1521106X20steelblackM618,1922161423,471,579,6201,152,5125 on request
K0648.1521106X30steelblackM618,1922161423,471,579,6301,152,5125 on request
K0648.1521106X40steelblackM618,1922161423,471,579,6401,152,5125 on request
K0648.1521106X50steelblackM618,1922161423,471,579,6501,152,5125 on request
K0648.2521108X25steelblackM827,111332416,227,7100110251,55170 on request
K0648.2521108X30steelblackM827,111332416,227,7100110301,55170 on request
K0648.2521108X40steelblackM827,111332416,227,7100110401,55170 on request
K0648.2521108X50steelblackM827,111332416,227,7100110501,55170 on request
K0648.2521110X25steelblackM1027,111332416,227,7100110251,55170 on request
K0648.2521110X30steelblackM1027,111332416,227,7100110301,55170 on request
K0648.2521110X40steelblackM1027,111332416,227,7100110401,55170 on request
K0648.2521110X50steelblackM1027,111332416,227,7100110501,55170 on request
K0648.1531105X20stainless steelblackM518,1922161423,471,579,6201,152,5125 on request
K0648.1531105X30stainless steelblackM518,1922161423,471,579,6301,152,5125 on request
K0648.1531105X40stainless steelblackM518,1922161423,471,579,6401,152,5125 on request
K0648.1531105X50stainless steelblackM518,1922161423,471,579,6501,152,5125 on request
K0648.1531106X20stainless steelblackM618,1922161423,471,579,6201,152,5125 on request
K0648.1531106X30stainless steelblackM618,1922161423,471,579,6301,152,5125 on request
K0648.1531106X40stainless steelblackM618,1922161423,471,579,6401,152,5125 on request
K0648.1531106X50stainless steelblackM618,1922161423,471,579,6501,152,5125 on request
K0648.2531108X25stainless steelblackM827,111332416,227,7100110251,55170 on request
K0648.2531108X30stainless steelblackM827,111332416,227,7100110301,55170 on request
K0648.2531108X40stainless steelblackM827,111332416,227,7100110401,55170 on request
K0648.2531108X50stainless steelblackM827,111332416,227,7100110501,55170 on request
K0648.2531110X25stainless steelblackM1027,111332416,227,7100110251,55170 on request
K0648.2531110X30stainless steelblackM1027,111332416,227,7100110301,55170 on request
K0648.2531110X40stainless steelblackM1027,111332416,227,7100110401,55170 on request
K0648.2531110X50stainless steelblackM1027,111332416,227,7100110501,55170 on request
K0648.15218405X20steelredM518,1922161423,471,579,6201,152,5125 on request
K0648.15218405X30steelredM518,1922161423,471,579,6301,152,5125 on request
K0648.15218405X40steelredM518,1922161423,471,579,6401,152,5125 on request
K0648.15218405X50steelredM518,1922161423,471,579,6501,152,5125 on request
K0648.15218406X20steelredM618,1922161423,471,579,6201,152,5125 on request
K0648.15218406X30steelredM618,1922161423,471,579,6301,152,5125 on request
K0648.15218406X40steelredM618,1922161423,471,579,6401,152,5125 on request
K0648.15218406X50steelredM618,1922161423,471,579,6501,152,5125 on request
K0648.25218408X25steelredM827,111332416,227,7100110251,55170 on request
K0648.25218408X30steelredM827,111332416,227,7100110301,55170 on request
K0648.25218408X40steelredM827,111332416,227,7100110401,55170 on request
K0648.25218408X50steelredM827,111332416,227,7100110501,55170 on request
K0648.25218410X25steelredM1027,111332416,227,7100110251,55170 on request
K0648.25218410X30steelredM1027,111332416,227,7100110301,55170 on request
K0648.25218410X40steelredM1027,111332416,227,7100110401,55170 on request
K0648.25218410X50steelredM1027,111332416,227,7100110501,55170 on request
K0648.15318405X20stainless steelredM518,1922161423,471,579,6201,152,5125 on request
K0648.15318405X30stainless steelredM518,1922161423,471,579,6301,152,5125 on request
K0648.15318405X40stainless steelredM518,1922161423,471,579,6401,152,5125 on request
K0648.15318405X50stainless steelredM518,1922161423,471,579,6501,152,5125 on request
K0648.15318406X20stainless steelredM618,1922161423,471,579,6201,152,5125 on request
K0648.15318406X30stainless steelredM618,1922161423,471,579,6301,152,5125 on request
K0648.15318406X40stainless steelredM618,1922161423,471,579,6401,152,5125 on request
K0648.15318406X50stainless steelredM618,1922161423,471,579,6501,152,5125 on request
K0648.25318408X25stainless steelredM827,111332416,227,7100110251,55170 on request
K0648.25318408X30stainless steelredM827,111332416,227,7100110301,55170 on request
K0648.25318408X40stainless steelredM827,111332416,227,7100110401,55170 on request
K0648.25318408X50stainless steelredM827,111332416,227,7100110501,55170 on request
K0648.25318410X25stainless steelredM1027,111332416,227,7100110251,55170 on request
K0648.25318410X30stainless steelredM1027,111332416,227,7100110301,55170 on request
K0648.25318410X40stainless steelredM1027,111332416,227,7100110401,55170 on request
K0648.25318410X50stainless steelredM1027,111332416,227,7100110501,55170 on request
