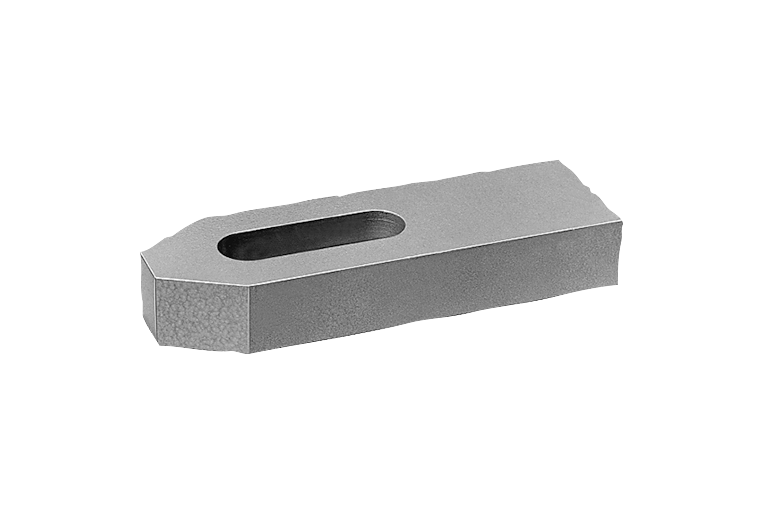

Clamp straps, similar to DIN 6314 straight, steel or aluminium

go back

Products
- Clamping devices
  - Clamp straps
    - Clamp straps, similar to DIN 6314 straight, steel or aluminium

Item description/product images

DescriptionMaterial:Carbon steel or EN AW-7022.Version:Steel painted.
Aluminium bright.Note:When using spherical washers use the wide series K0729 Form G.

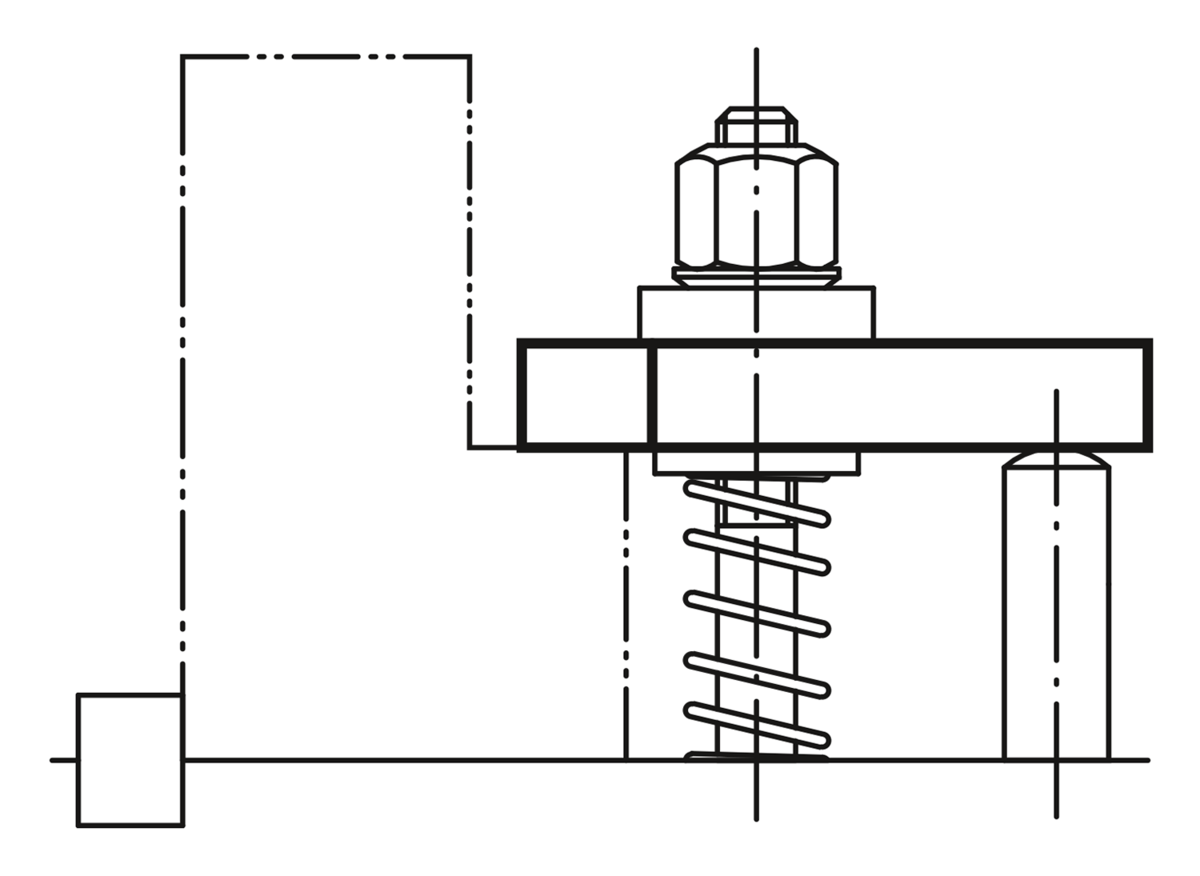

Drawings

Item selection/filter

Order No.	Main material	L	A	B1	B2	B3	E1	E2	F kN	for screw	Price
K1516.06	high carbon steel	50	10	7	20	8	13,5	13	4,82	M6	12.08 $ (USD)
K1516.08	high carbon steel	60	12	9	25	10	14,5	13	8,77	M8	15.08 $ (USD)
K1516.10	high carbon steel	80	15	11	30	12	20,5	19	13,9	M10	16.65 $ (USD)
K1516.12	high carbon steel	100	20	14	40	14	28	26	20,2	M12/M14	20.39 $ (USD)
K1516.14	high carbon steel	125	20	14	40	14	28	36	20,2	M12/M14	23.47 $ (USD)
K1516.16	high carbon steel	125	25	18	50	18	35	27	37,8	M16/M18	28.53 $ (USD)
K1516.18	high carbon steel	160	25	18	50	18	35	47	37,8	M16/M18	37.69 $ (USD)
K1516.20	high carbon steel	160	30	22	60	22	41	38	58,8	M20/M22	53.82 $ (USD)
K1516.201	high carbon steel	200	30	22	60	22	41	58	58,8	M20/M22	67.01 $ (USD)
K1516.24	high carbon steel	200	30	26	70	26	48	54	84,7	M24	77.35 $ (USD)
K1516.241	high carbon steel	250	35	26	70	26	48	79	84,7	M24	111.73 $ (USD)
K1516.30	high carbon steel	250	40	34	80	34	62	66	135	M30/M32	169.45 $ (USD)
K1516.301	high carbon steel	315	50	34	80	34	62	96	135	M30/M32	215.87 $ (USD)
K1516.206	aluminium	50	10	7	20	8	13,5	13	4,82	M6	51.59 $ (USD)
K1516.208	aluminium	60	12	9	25	10	14,5	13	8,77	M8	53.12 $ (USD)
K1516.210	aluminium	80	15	11	30	12	20,5	19	13,9	M10	52.47 $ (USD)
K1516.212	aluminium	100	20	14	40	14	28	26	20,2	M12/M14	60.70 $ (USD)
K1516.214	aluminium	125	20	14	40	14	28	36	20,2	M12/M14	75.85 $ (USD)
K1516.216	aluminium	125	25	18	50	18	35	27	37,8	M16/M18	91.03 $ (USD)
K1516.218	aluminium	160	25	18	50	18	35	47	37,8	M16/M18	102.38 $ (USD)
K1516.220	aluminium	160	30	22	60	22	41	38	58,8	M20/M22	94.50 $ (USD)
K1516.2201	aluminium	200	30	22	60	22	41	58	58,8	M20/M22	124.85 $ (USD)
K1516.224	aluminium	200	30	26	70	26	48	54	84,7	M24	149.35 $ (USD)
K1516.2241	aluminium	250	35	26	70	26	48	79	84,7	M24	152.03 $ (USD)
K1516.230	aluminium	250	40	34	80	34	62	66	135	M30/M32	246.46 $ (USD)
K1516.2301	aluminium	315	50	34	80	34	62	96	135	M30/M32	303.43 $ (USD)
