Disc Handwheels aluminum planed, with fixed handle, inch

K0161 Inch

Disc Handwheels aluminum planed, with fixed handle, inch

Products
- Handwheels
  - Disc Handwheels
    - Disc Handwheels aluminum flat rim
      - Disc Handwheels aluminum planed, with fixed handle, inch

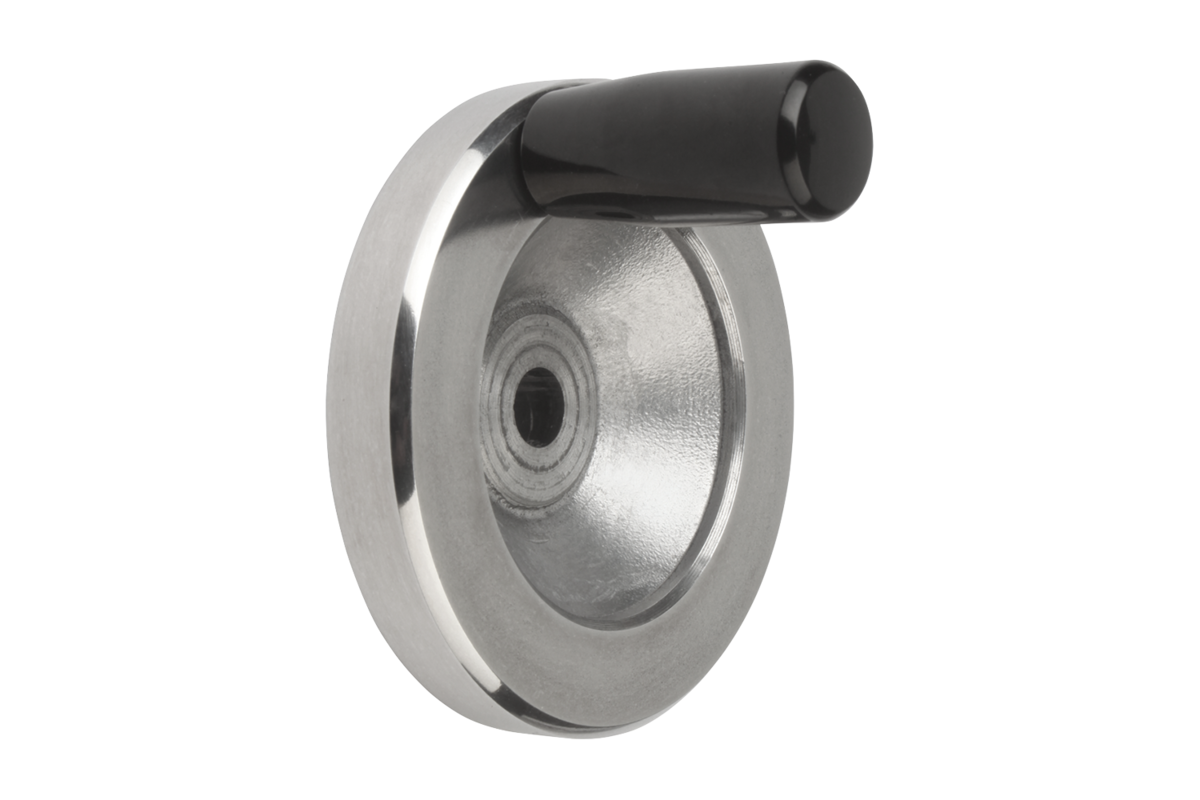

Item description/product images

DescriptionMaterial:Disc handwheel aluminium.
Cylinder grip black thermoset PF 31-DIN 7708.
Hub electro zinc-plated steel.Version:Wheel rim turned and polished.
On request:Hubs with square socket or powder-coated handwheels.

Drawings

Disc Handwheels aluminum planed, with fixed handle, inch

Disc Handwheels aluminum planed, with fixed handle, inch

Item selection/filter

Order No.	D1	D2	D3	L1	L3	Fixed cylinder grip	CAD	Acc.	Price	Order
K0161.2080XCN	80	0,312	26	16	31	ø18 x M6 x 40			36.01 $ (USD)
K0161.2080XCO	80	0,375	26	16	31	ø18 x M6 x 40			36.01 $ (USD)
K0161.2100XCO	100	0,375	31	17	34	ø18 x M6 x 40			40.15 $ (USD)
K0161.2100XCP	100	0,5	31	17	34	ø18 x M6 x 40			40.15 $ (USD)
K0161.2125XCO	125	0,375	30	18	37	ø21 x M8 x 50			50.22 $ (USD)
K0161.2125XCP	125	0,5	30	18	37	ø21 x M8 x 50			50.22 $ (USD)
K0161.2140XCP	140	0,5	34	19	34	ø21 x M8 x 50			56.14 $ (USD)
K0161.2140XCQ	140	0,625	34	19	34	ø21 x M8 x 50			56.14 $ (USD)
K0161.2160XCP	160	0,5	40	20	40	ø26 x M10 x 80			78.43 $ (USD)
K0161.2160XCQ	160	0,625	40	20	40	ø26 x M10 x 80			78.43 $ (USD)
K0161.2200XCQ	200	0,625	50	24	46	ø26 x M10 x 80			94.21 $ (USD)
K0161.2200XCR	200	0,75	50	24	46	ø26 x M10 x 80			94.21 $ (USD)
K0161.2250XCR	250	0,75	50	28	49	ø28 x M12 x 90			154.80 $ (USD)
K0161.2250XCV	250	0,875	50	28	49	ø28 x M12 x 90			154.80 $ (USD)

Other items in this category

Disc Handwheels aluminum planed, without handle, inch

K0161 Inch

Disc Handwheels aluminum planed, without handle, inch

Disc Handwheels aluminum planed, with revolving handle, inch

K0161 Inch

Disc Handwheels aluminum planed, with revolving handle, inch
