Disc Handwheels aluminum similar to DIN 950, metric

go back

Products
- Handwheels
  - Disc Handwheels
    - Disc Handwheels aluminum similar to DIN 950
      - Disc Handwheels aluminum similar to DIN 950, metric

Item description/product images

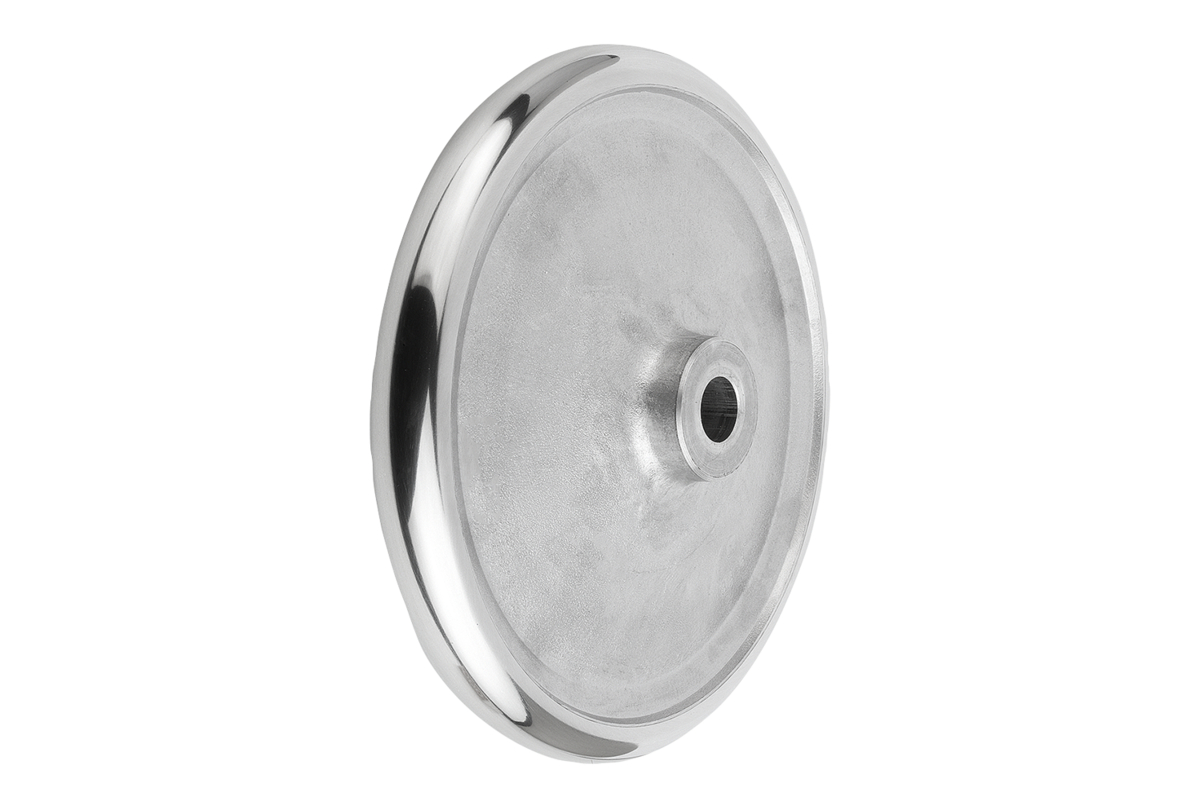

DescriptionMaterial:Handwheel aluminium.Version:Wheel rim turned and polished.
On request:Hubs with square socket or powder-coated handwheels.Special features:

Drawings

Item selection/filter

Order No.	D1	D2	D3	L1	L3	Price
K0163.0080X10	80	10H7	25	16	30	18.96 $ (USD)
K0163.0080X12	80	12H7	25	16	30	18.96 $ (USD)
K0163.0100X10	100	10H7	28	17	31	21.95 $ (USD)
K0163.0100X12	100	12H7	28	17	31	21.95 $ (USD)
K0163.0120X12	120	12H7	27	18	30	26.91 $ (USD)
K0163.0120X14	120	14H7	27	18	30	26.91 $ (USD)
K0163.0160X14	160	14H7	34	20	40	39.05 $ (USD)
K0163.0160X16	160	16H7	34	20	40	39.05 $ (USD)
K0163.0200X18	200	18H7	40	24	44	54.25 $ (USD)
K0163.0200X22	200	22H7	40	24	44	54.25 $ (USD)
K0163.0250X22	250	22H7	49	28	61	91.49 $ (USD)
K0163.0250X26	250	26H7	49	28	61	91.49 $ (USD)
K0163.0280X24	280	24H7	51	30	38	116.86 $ (USD)
K0163.0280X28	280	28H7	51	30	38	116.86 $ (USD)
K0163.0360X28	360	28H7	63	35	73	191.10 $ (USD)
K0163.0360X32	360	32H7	63	35	73	191.10 $ (USD)
K0163.1080X10	80	10H7	25	16	30	22.34 $ (USD)
K0163.1080X12	80	12H7	25	16	30	22.34 $ (USD)
K0163.1100X10	100	10H7	28	17	31	25.49 $ (USD)
K0163.1100X12	100	12H7	28	17	31	25.49 $ (USD)
K0163.1120X12	120	12H7	27	18	30	30.58 $ (USD)
K0163.1120X14	120	14H7	27	18	30	30.58 $ (USD)
K0163.1160X14	160	14H7	34	20	40	42.83 $ (USD)
K0163.1160X16	160	16H7	34	20	40	42.83 $ (USD)
K0163.1200X18	200	18H7	40	24	44	58.46 $ (USD)
K0163.1200X22	200	22H7	40	24	44	58.46 $ (USD)
K0163.1250X22	250	22H7	49	28	61	96.73 $ (USD)
K0163.1250X26	250	26H7	49	28	61	96.73 $ (USD)
K0163.1280X24	280	24H7	51	30	38	122.23 $ (USD)
K0163.1280X28	280	28H7	51	30	38	122.23 $ (USD)
K0163.1360X28	360	28H7	63	35	73	196.69 $ (USD)
K0163.1360X32	360	32H7	63	35	73	196.69 $ (USD)
