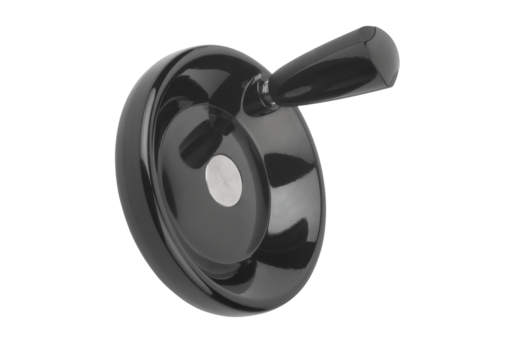

Disc Handwheel
reamed hole
thermoset
- Control element for positioning and adjusting shafts and spindles
- Application sectors: machine, plant, equipment construction and measuring devices
- For opening, closing and operating valves in fittings, machine tools
- style E: with reamed hole
- Hub, steel or stainless steel
Sales unit
$50.95 / pcs.
as low as | plus sales tax
plus shipping and handling
Added to your shopping cart
D1=Outside diameter
100
D2=Fastening hole
10H8
L3=height
39
Component
material
thermoset
D3
22
D4
20
D6
79
D7
M6
D8
29
Grip
revolving grip
H1
9
H2
8
Item
Disc Handwheel
L1
29,5
L2
19
L4
54,7
Main
material
thermoset
RoHS
true
Size
1
Steel parts material
steel
Style definition
with reamed hole
Version 1
reamed hole
style
E
Description
Material
Thermoset PF 31, black.
Hub nickel-plated steel.
Revolving grip, nickel-plated steel parts.
Hub nickel-plated steel.
Revolving grip, nickel-plated steel parts.
Version
High-gloss polished.
Note
The handwheel is supplied with the grip loose.
On request
Other reamed hole sizes.
