Two-Spoke Handwheels, aluminum, flat rim, with fixed handle, inch

go back

Products
- Handwheels
  - Two- and Three-Spoke Handwheels
    - Two-Spoke Handwheels aluminum, flat rim
      - Two-Spoke Handwheels, aluminum, flat rim, with fixed handle, inch

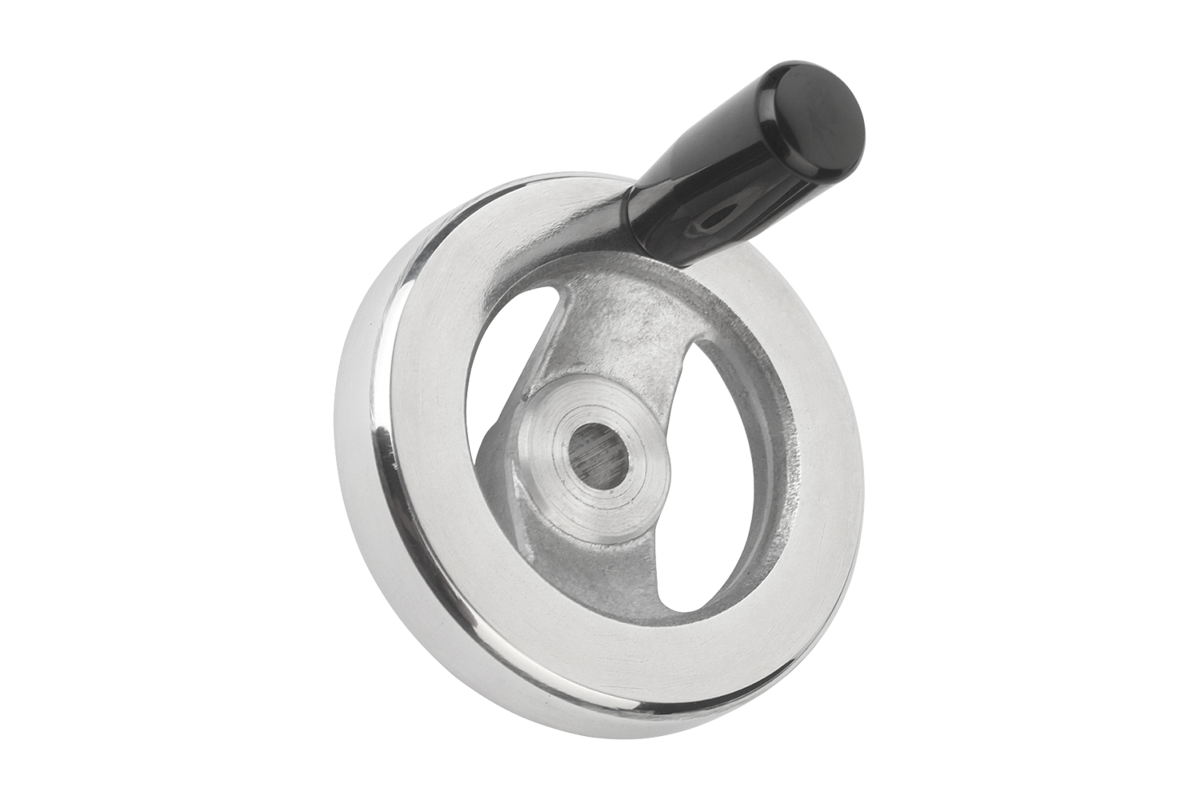

Item description/product images

DescriptionMaterial:Handwheels aluminium.
Cylinder grip black thermoset PF 31-DIN 7708, centre pin electro zinc-plated steel.Version:Wheel rim turned and polished.
Radial and axial run-out of rim < IT 12.On request:Hubs with square socket or powder-coated handwheels.Special features:

Drawings

Item selection/filter

Order No.	D1	D2	D3	L1	L3	Fixed cylinder grip	Price
K0162.2080XCN	80	0,312	24	16	28	ø18 x M6 x 40	24.59 $ (USD)
K0162.2080XCO	80	0,375	24	16	28	ø18 x M6 x 40	24.59 $ (USD)
K0162.2100XCO	100	0,375	26	17	33	ø18 x M6 x 40	28.06 $ (USD)
K0162.2100XCP	100	0,5	26	17	33	ø18 x M6 x 40	28.06 $ (USD)
K0162.2125XCO	125	0,375	31	18	33,5	ø21 x M8 x 50	32.78 $ (USD)
K0162.2125XCP	125	0,5	31	18	33,5	ø21 x M8 x 50	32.78 $ (USD)
K0162.2160XCP	160	0,5	36	20	39	ø26 x M10 x 80	43.79 $ (USD)
K0162.2160XCQ	160	0,625	36	20	39	ø26 x M10 x 80	43.79 $ (USD)
K0162.2200XCQ	200	0,625	42	24	45	ø26 x M10 x 80	63.41 $ (USD)
K0162.2200XCR	200	0,75	42	24	45	ø26 x M10 x 80	63.41 $ (USD)
K0162.2250XCR	250	0,75	48	28	51	ø28 x M12 x 90	94.04 $ (USD)
K0162.2250XCV	250	0,875	48	28	51	ø28 x M12 x 90	94.04 $ (USD)
