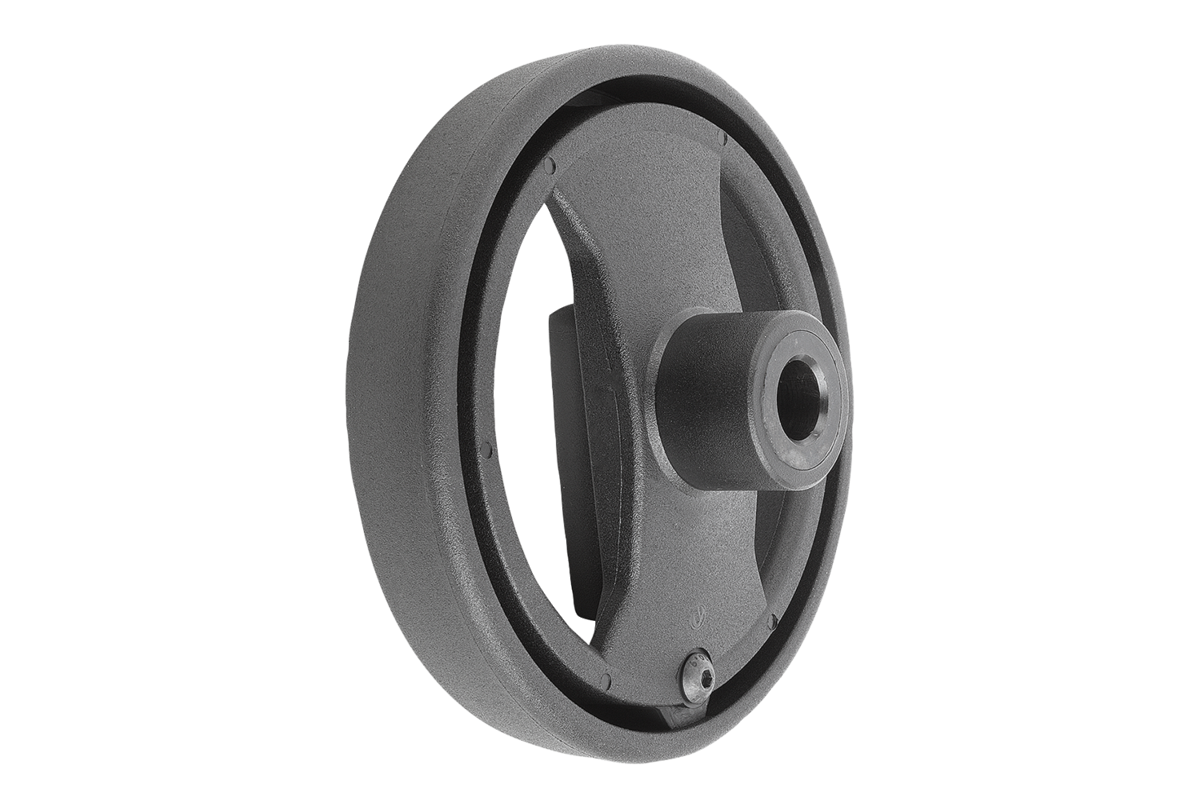

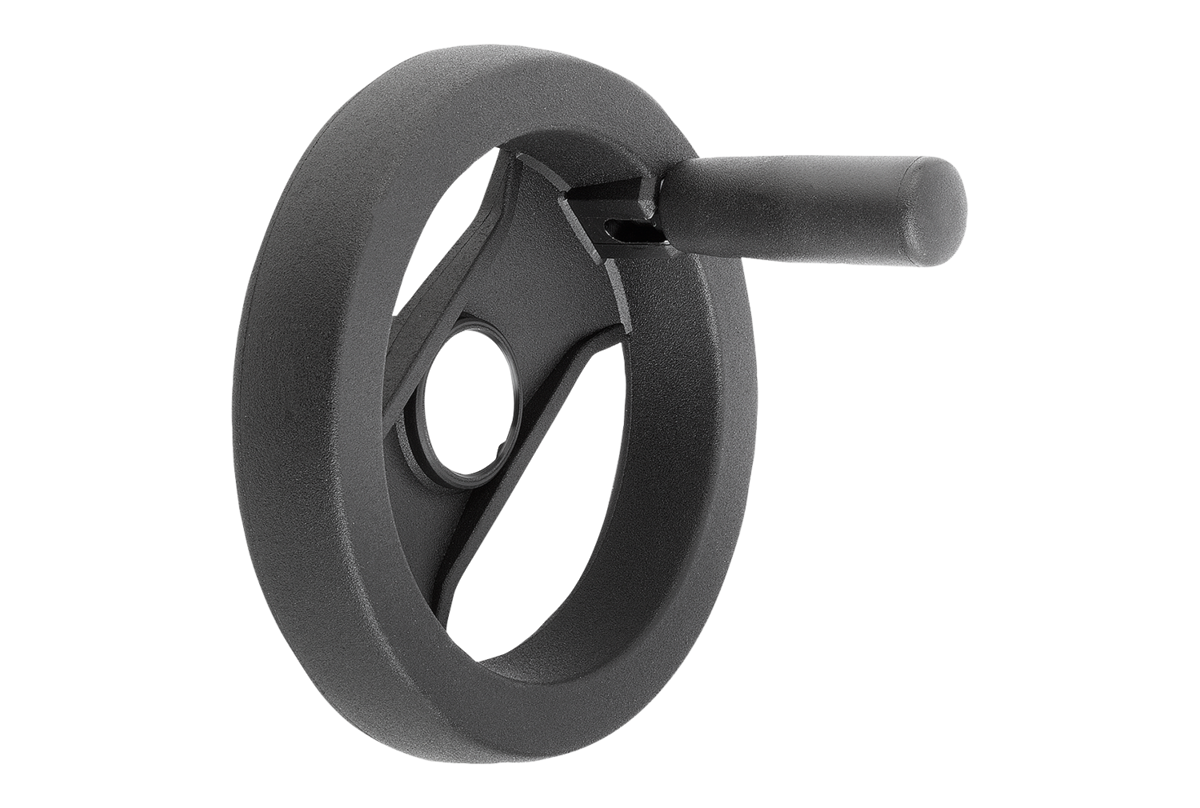

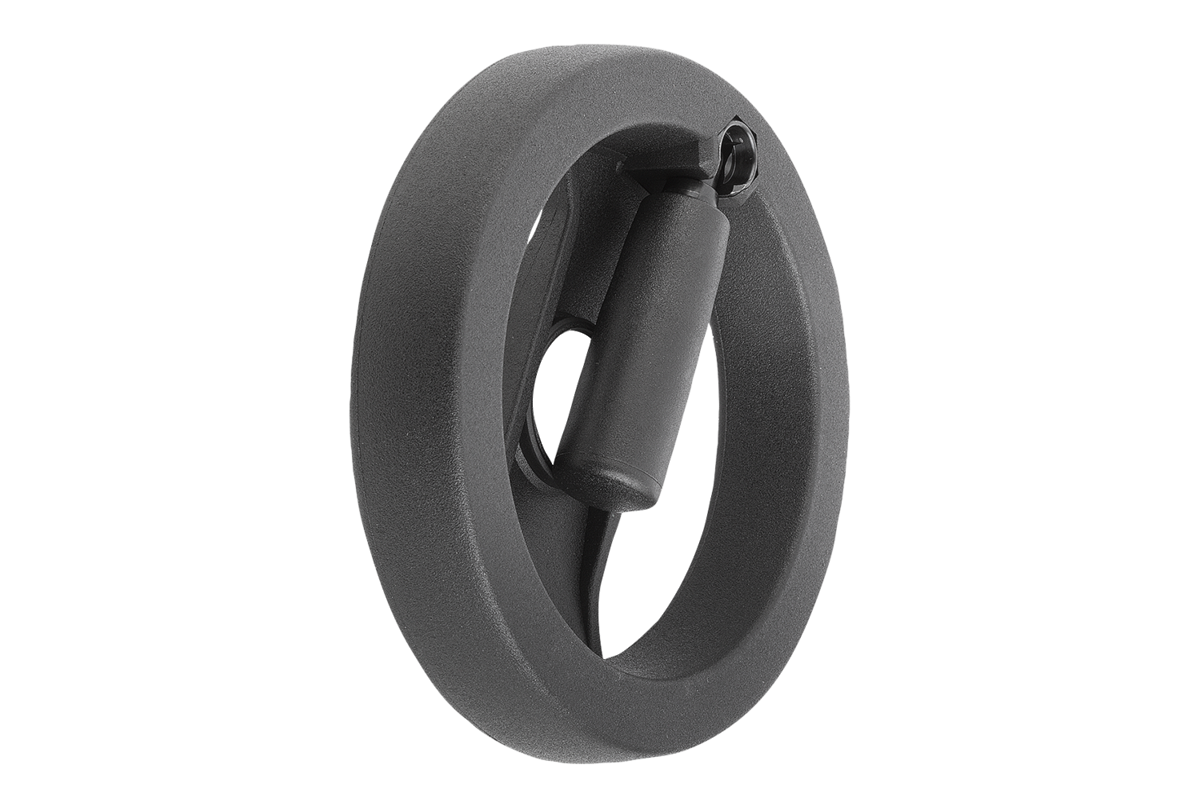

2-Spoke Handwheel
reamed hole
polyamide
- Control element for positioning and adjusting shafts and spindles
- Application sectors: machine, plant, equipment construction and measuring devices
- For opening, closing and operating valves in fittings, machine tools
- Version: with and without keyway
Sales unit
$48.73 / pcs.
as low as | plus sales tax
plus shipping and handling
Added to your shopping cart
D1=Outside diameter
129
D2=Fastening hole
12H7
L3=height
52
A
51
Component
material
polyamide
D3
32
D4
20
H
29
Item
2-Spoke Handwheel
L
111
L1
20
L2
59
L4
53
Main
material
polyamide
Product type
folding grip
RoHS
true
Version 1
reamed hole
Description
Material
Handwheel, reinforced and stabilized polyamide.
center caps, polyamide.
center bushing and tapped insert for cylinder grip, steel.
center caps, polyamide.
center bushing and tapped insert for cylinder grip, steel.
Version
Handwheel, oil and grease resistant, black (RAL 9011), satin finish.
center caps, gray (RAL 7035).
center bushing and tapeed insert for folding grip, black oxidized.
center caps, gray (RAL 7035).
center bushing and tapeed insert for folding grip, black oxidized.
On request
Other cap colors.
Special versions.
Special versions.
