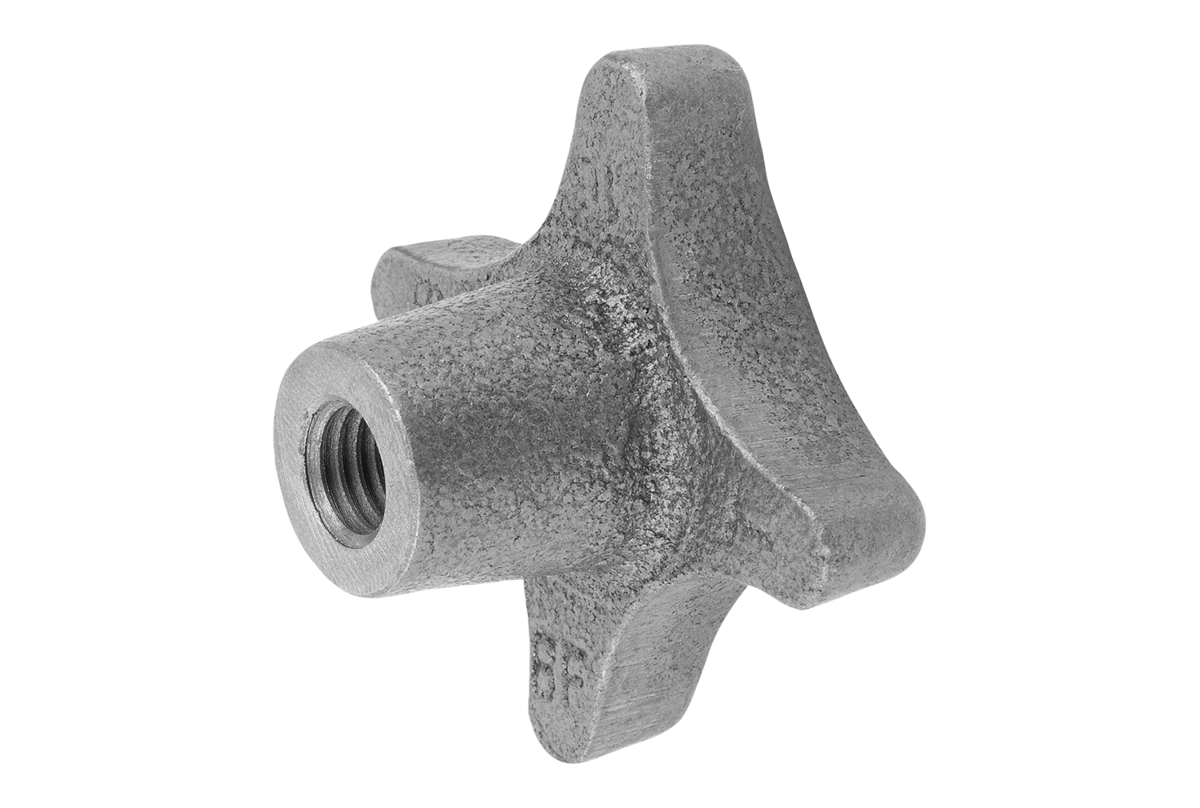

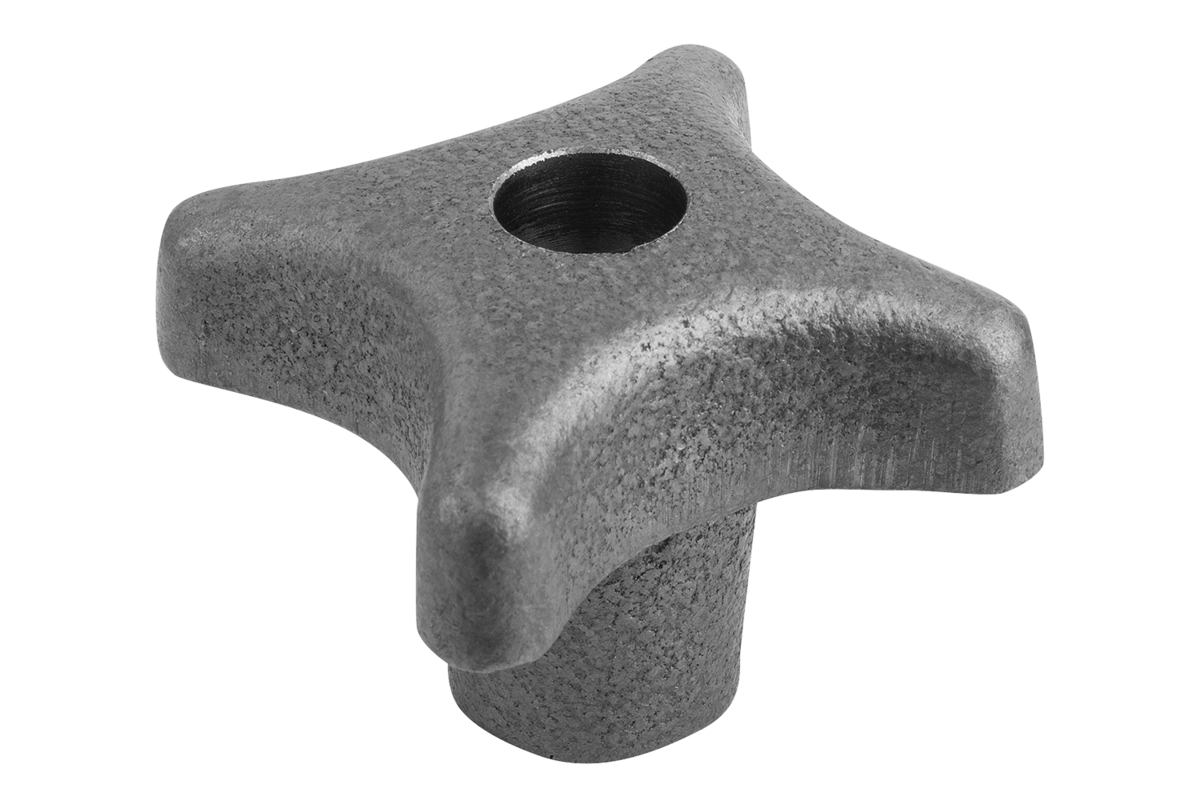

Palm grip
tumbled
gray cast iron
tumbled
- Can be used as a clamping, retaining and fastening element
- Application fields: machine, plant and fixture construction, toolmaking
- For manually adjusting assemblies, machines and aggregates
- style D: tapped and counterbored
- Version: vibratory ground
Sales unit
$25.83 / pcs.
as low as | plus sales tax
plus shipping and handling
Added to your shopping cart
D1=Outside diameter
100
D=Thread
M20
H=Height
63
T=thread depth
25
D2
32
D6
21
DIN
DIN 6335
H3
38
Item
Palm grip
Main
material
gray cast iron
RoHS
true
Surface finish
body
tumbled
Thread type
internal thread
Version 1
tumbled
style
D
Description
Material
gray cast iron GJL 200.
Version
Vibratory ground.
Bright.
Bright.
