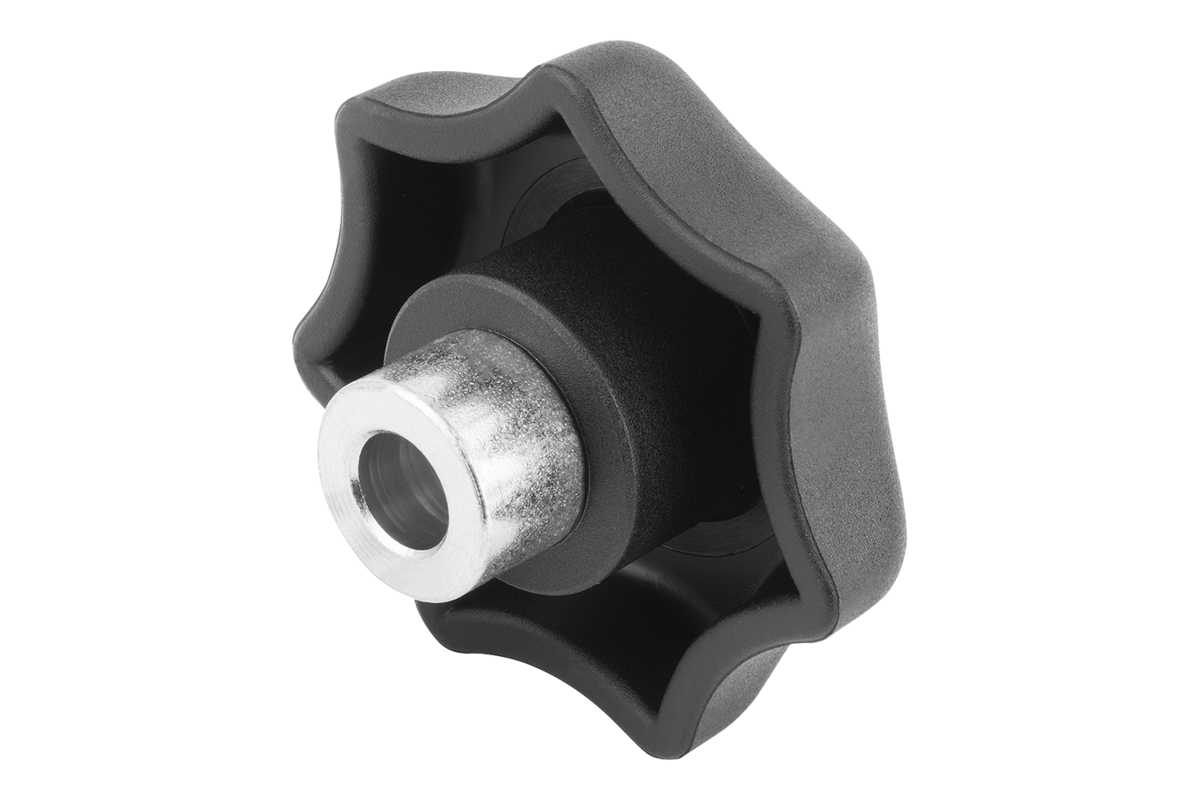

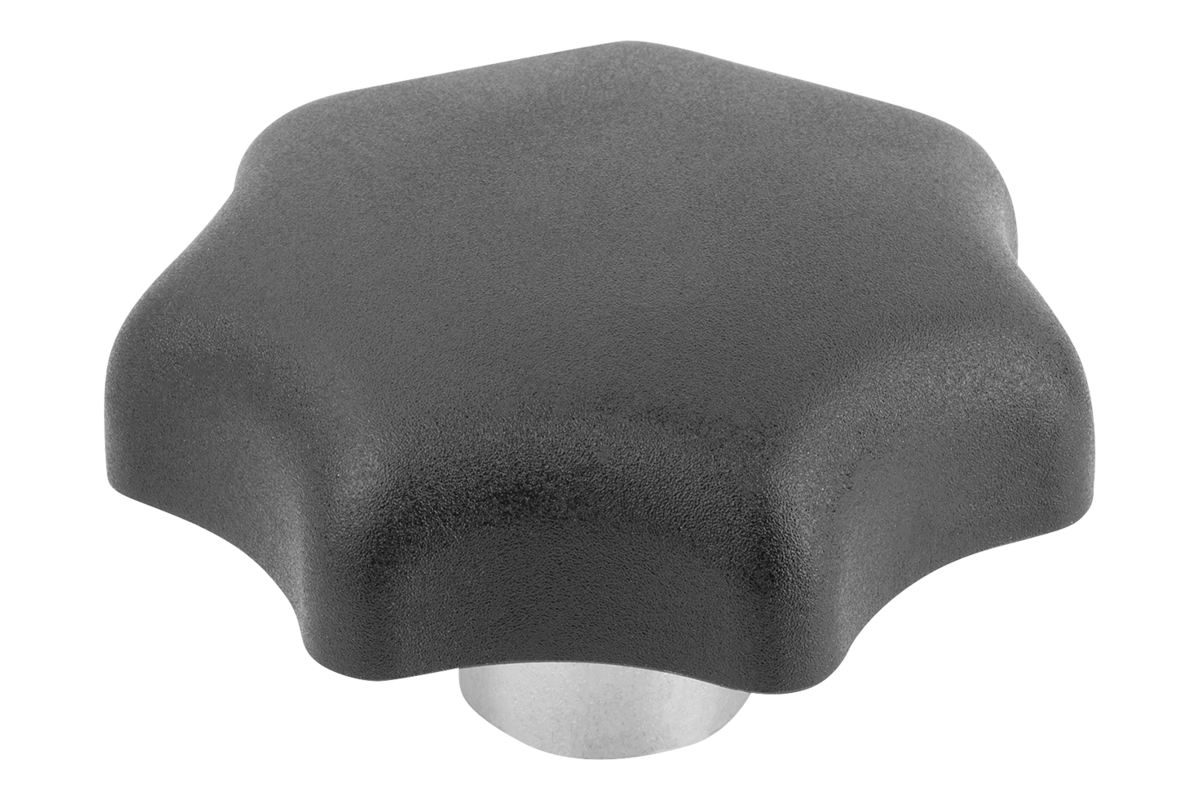

Star Grip
with protruding bushing
thermoplastic
black
- Can be used as a clamping, retaining and fastening element
- Application fields: machine, plant and fixture construction, toolmaking
- For manually adjusting assemblies, machines and aggregates
- style H: bushing with blind hole
- Different thread sizes
Sales unit
$9.11 / pcs.
as low as | plus sales tax
plus shipping and handling
Added to your shopping cart
D1=Outside diameter
63
D=bore
16
H=Height
40
T=bore depth
24,5
Component
material
steel
D2
23
H2
21
H3
15
Item
Star Grip
Main
color
black
Main
material
thermoplastic
Style definition
with blind hole
Thread type
reamed hole
Version 1
with protruding bushing
style
H
Description
Material
Black thermoplastic.
Steel grade 5.8 or stainless steel 1.4305.
Version
Metal parts trivalent blue passivated steel or bright stainless steel.
Note
Star grips with projecting steel bushing and blind hole or internal thread are especially suited for cross pinning.
