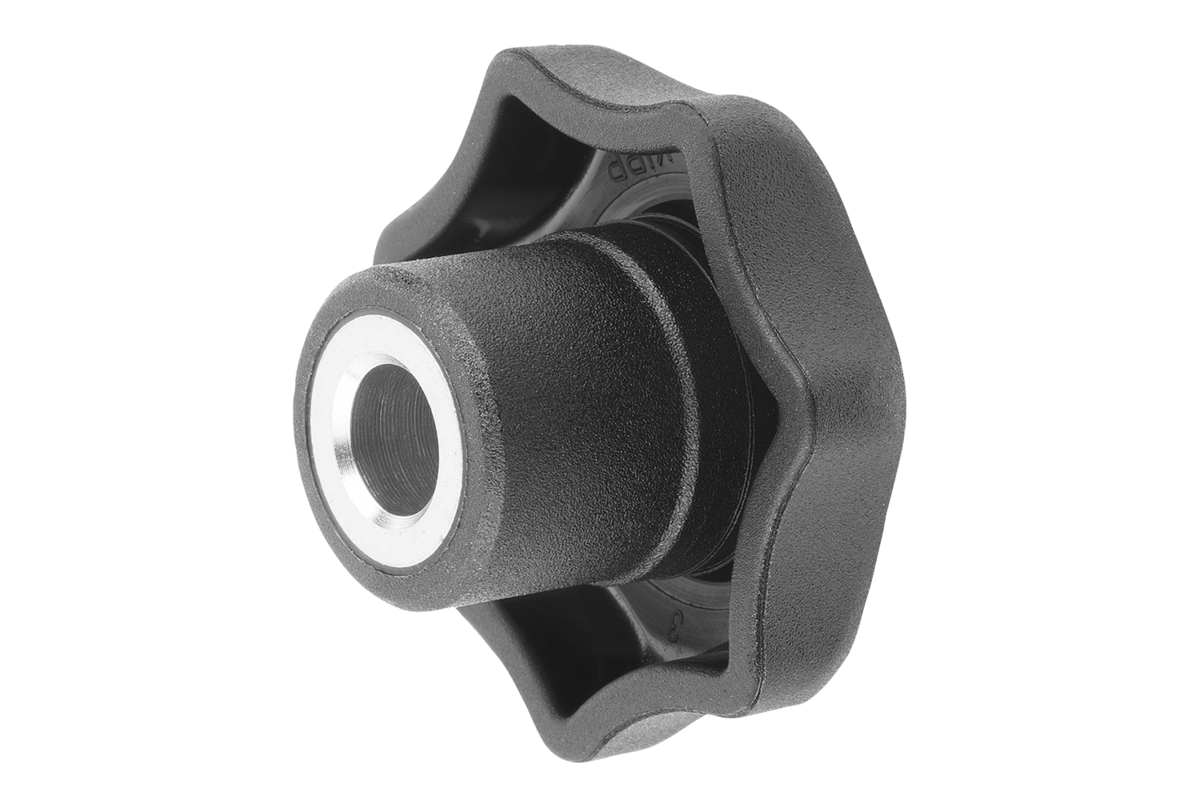

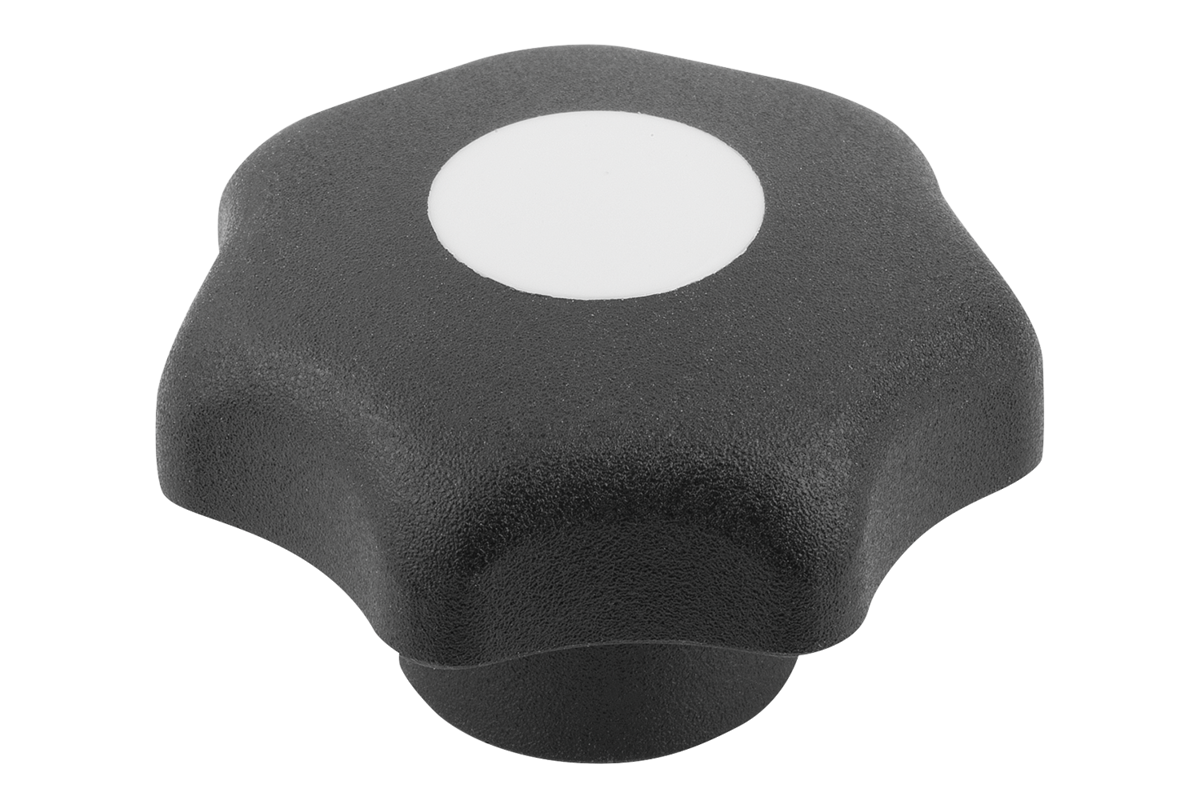

Star grip
reamed hole
thermoplastic
black
- Can be used as a clamping, retaining and fastening element
- Application fields: machine, plant and fixture construction, toolmaking
- For manually adjusting assemblies, machines and aggregates
- Style H: with reamed bushing
- Cap in various color combinations
Sales unit
$1.62
as low as | plus sales tax
plus shipping and handling
Registered customers are shown the live availability of the item after logging in to the website. Please contact our customer support for assistance.
Added to your shopping cart
Designation
Star grip
Version 1
reamed hole
DIN
similar to DIN 6336
style
H
Main
material
thermoplastic
Main
color
black
Component
material
steel
Surface finish
component
trivalent blue passivated
D1=Outside diameter
40
D=bore
8
H=Height
25
T=bore depth
14
D8
18
H3
13
Thread type
reamed hole
color
Cap
light gray RAL 7035
~ CONFLICT MINERALS 3TG status
no intentional 3TG
~ CP65 substance 1 cancer & reproductive toxicity
lead and lead compounds
~ CP65 substance 2 cancer
carbon-black extracts
~ PFAS free?
yes
~ REACH SVHC-free?
yes
~ REACh SVHC 2 name > threshold
previous lead possible
~ RoHS conformity
yes, without exemption
~ TSCA 6(H) conformity
yes
Description
Material
Black thermoplastic, bushing in steel
Version
bushing trivalent blue passivated.
On request
Other colors or designs, such as company logo.
