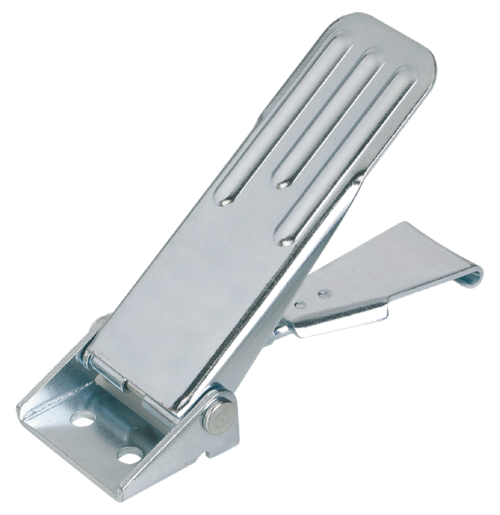

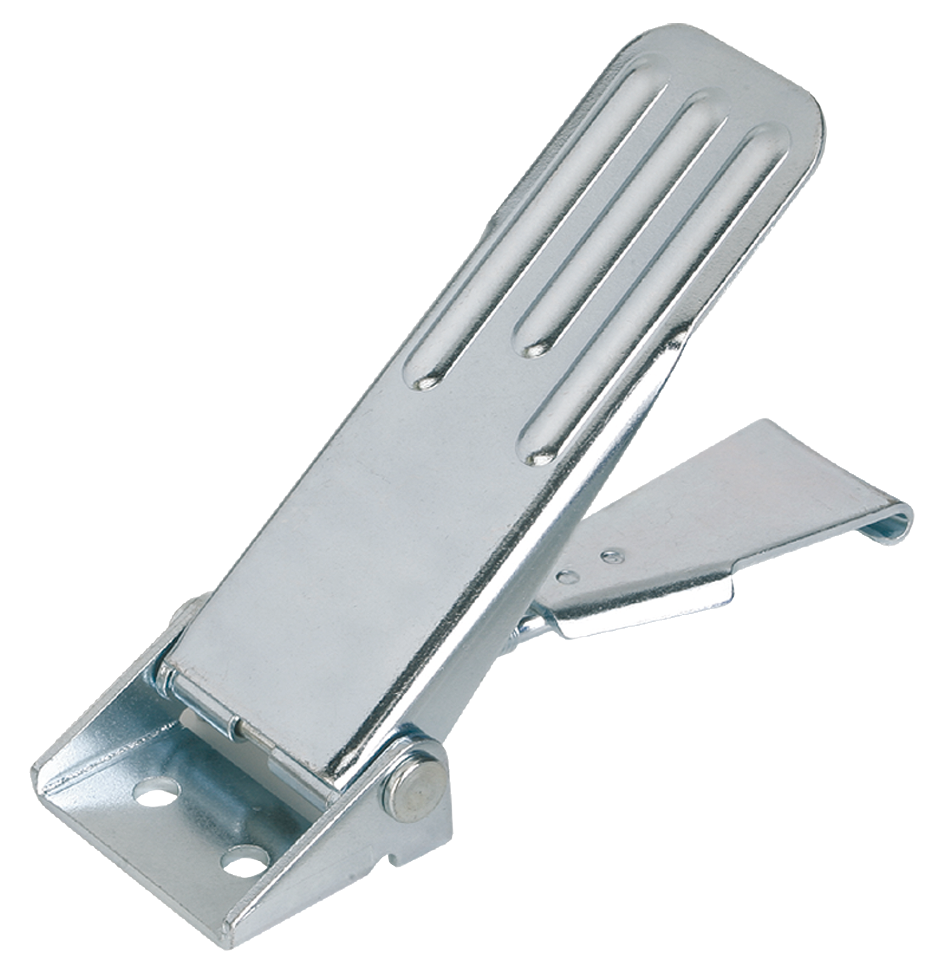

DescriptionMaterial:Steel or stainless steel 1.4301.Version:Galvanised and blue passivated Stainless steel bright.Note:Adjustable latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration. These latches are very robust and have a low overall height.
After the hook is engaged with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 6 mm. To compensate for tolerances or to create enough tension, the hook length can be adjusted using the M6 threaded spindle.
The latches can be screwed down or riveted.
Order required catch plate separately.
The retaining force F1 applies to the latch, not the catch plate.Drawing reference:
Form A standard
1) Hole arrangements for assembly with catch plate
