Product groups

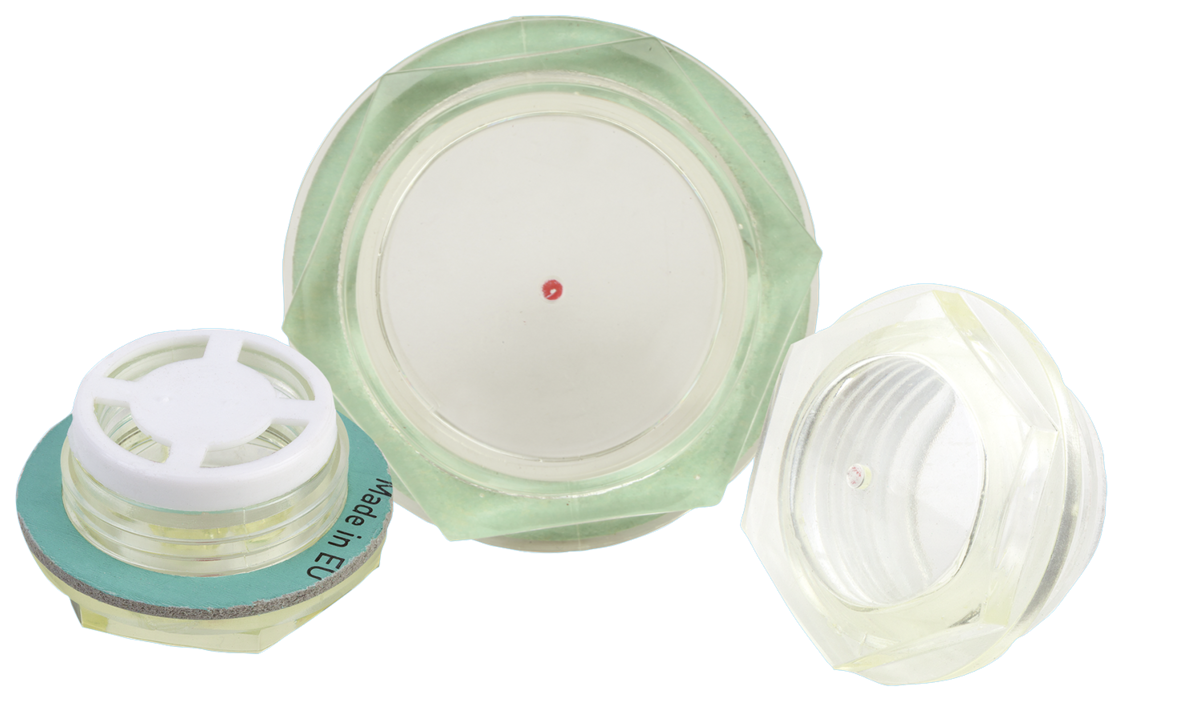

Oil level sight glasses
K0445

Oil level sight glasses

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing in thermoplastic polyamide.
Plastic reflector.
Version:Housing, transparent, high mechanical stability, non-ageing, temperature resistant with oil up to 90 °C, resistant to solvents but not to alcohol or frost.
Flat seal, asbestos-free.
Reflector white.
On request:Rubber gasket (NBR).Drawing reference:
Form A: without reflector
Form B: with reflector

1) flat seal
2) check mark
3) reflector
Special features:
RoHS

Drawings (total overview)

Oil level sight glasses

Oil level sight glasses, Form A, without reflector

More information

Drawings

Oil level sight glasses, Form A, without reflector

Item selection/filter

Order No.FormDD1D2LL1SWTightening
torque
max. Nm
CADAcc.PriceOrder
K0445.120014A20G1/41578176 on request
K0445.122038A22G3/8146,510,5188 on request
K0445.128012A28G1/2168112412 on request
K0445.135034A35G3/4218123016 on request
K0445.143100A43G132111236- on request
K0445.151114A51G1 1/433101642- on request
K0445.158112A58G1 1/240121650- on request
K0445.174200A74G248122264- on request
K0445.1201415A20M14X1,51578177 on request
K0445.1221615A22M16X1,5146,510188 on request
K0445.1251815A25M18X1,516710,52110 on request
K0445.1282015A28M20X1,5187,5112416 on request
K0445.1282215A28M22X1,5167,512,52412 on request
K0445.1362615A36M26X1,5218,513,53021on request
K0445.1362715A36M27X1,5218,513,53021on request
K0445.1514015A51M40X1,532101742- on request

Oil level sight glasses, Form B, with reflector

More information

Drawings

Oil level sight glasses, Form B, with reflector

Item selection/filter

Order No.

FormDD1D2LL1SWTightening
torque
max. Nm
CADAcc.PriceOrder
K0445.222038B22G3/8146,510,5188 on request
K0445.228012B28G1/2168112412 on request
K0445.235034B35G3/4218123016 on request
K0445.243100B43G132111236- on request
K0445.251114B51G1 1/433101642- on request
K0445.258112B58G1 1/240121650- on request
K0445.274200B74G248122264- on request
K0445.2221615B22M16X1,5146,510188 on request
K0445.2251815B25M18X1,516710,52110 on request
K0445.2282015B28M20X1,5187,5112416 on request
K0445.2282215B28M22X1,5167,512,52412 on request
K0445.2362615B36M26X1,5218,513,53021on request
K0445.2362715B36M27X1,5218,513,53021on request
K0445.2514015B51M40X1,532101742- on request
