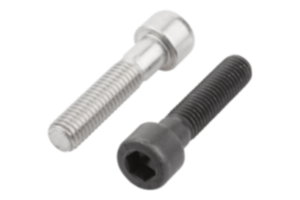

- K0869
Socket head screws DIN EN ISO 4762 enhanced, steel or stainless steel
- K1798
Aluminium cap for holes and screw heads with hex socket
- K1160
Socket head screws with low head DIN 6912
- K1418
Eye bolts DIN 444, Form B with long thread
- K0396
Eye bolts DIN 444, Form B
- K1960
Threaded rods
steel and stainless steel DIN 976-1
- K0404
Studs with screw-in stop for gluing in
- K0405
Stud sets with screw-in stop for gluing in
- K0756
T-thrust screws with fixed or sliding T-bar, DIN 6304 or DIN 6306
- K0755
Tommy bars with fixed or sliding T-bar, DIN 6305 or DIN 6307
- K0584
Clamping force intensifiers
- K0053
Swing screws
- K0394
Thrust spindles
- K0629
Dial gauge collets for Ø8 shafts
- K1070
Sliding clamps for slotted holes
- K1071
Shim plates for sliding clamps for slotted hole
- K1072
Sliding clamps for square bars
- K1073
Base plate for sliding clamps for square bars
- K1446
Ratchet elements steel or stainless steel
- Threaded Inserts
- Drill bushes
- Connectors for profiles and profile systems
- Rules Stainless Steel
- Grub Screws
- Thrust Pads
- Couplings
- Joints
- Magnets
- Level indicators, screw plugs
- Material handling
- Tools
- Product lines KIPP Inc.
|
|
|

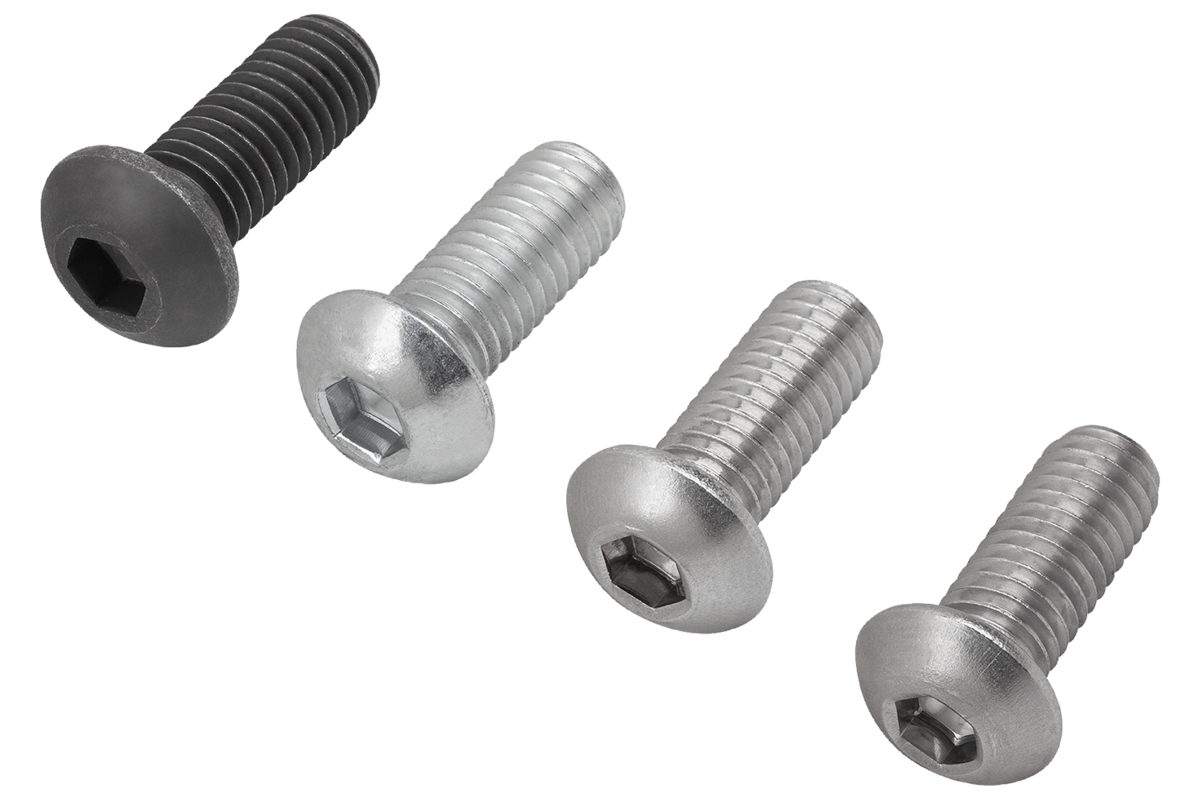

K1796_AHexagon socket button head screws EN ISO 7380-1, Form A |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 10.9, bright (black) or electro zinc-plated.
Stainless steel A2-70, bright.
Stainless steel A4-70, bright. |
| Order No. | Form | Main
material | Surface finish
body | Grade | D | L | DK | K | SW | CAD | Acc. | Price | Order |
|---|
| K1796.1303X8 | A | steel | bright (black) | 10.9 | M3 | 8 | 5,7 | 1,65 | 2 |  | | 0.65 $ (USD) | | | K1796.1303X10 | A | steel | bright (black) | 10.9 | M3 | 10 | 5,7 | 1,65 | 2 | | | 0.65 $ (USD) | | | K1796.1303X12 | A | steel | bright (black) | 10.9 | M3 | 12 | 5,7 | 1,65 | 2 | | | 0.68 $ (USD) | | | K1796.1303X16 | A | steel | bright (black) | 10.9 | M3 | 16 | 5,7 | 1,65 | 2 | | | 0.68 $ (USD) | | | K1796.1303X20 | A | steel | bright (black) | 10.9 | M3 | 20 | 5,7 | 1,65 | 2 | | | 0.72 $ (USD) | | | K1796.1304X8 | A | steel | bright (black) | 10.9 | M4 | 8 | 7,6 | 2,2 | 2,5 | | | 0.40 $ (USD) | | | K1796.1304X10 | A | steel | bright (black) | 10.9 | M4 | 10 | 7,6 | 2,2 | 2,5 | | | 0.51 $ (USD) | | | K1796.1304X12 | A | steel | bright (black) | 10.9 | M4 | 12 | 7,6 | 2,2 | 2,5 | | | 0.56 $ (USD) | | | K1796.1304X16 | A | steel | bright (black) | 10.9 | M4 | 16 | 7,6 | 2,2 | 2,5 | | | 0.61 $ (USD) | | | K1796.1304X20 | A | steel | bright (black) | 10.9 | M4 | 20 | 7,6 | 2,2 | 2,5 | | | 0.61 $ (USD) | | | K1796.1304X25 | A | steel | bright (black) | 10.9 | M4 | 25 | 7,6 | 2,2 | 2,5 | | | 0.67 $ (USD) | | | K1796.1304X30 | A | steel | bright (black) | 10.9 | M4 | 30 | 7,6 | 2,2 | 2,5 | | | 0.77 $ (USD) | | | K1796.1305X8 | A | steel | bright (black) | 10.9 | M5 | 8 | 9,5 | 2,75 | 3 | | | 0.58 $ (USD) | | | K1796.1305X10 | A | steel | bright (black) | 10.9 | M5 | 10 | 9,5 | 2,75 | 3 | | | 0.51 $ (USD) | | | K1796.1305X12 | A | steel | bright (black) | 10.9 | M5 | 12 | 9,5 | 2,75 | 3 | | | 0.54 $ (USD) | | | K1796.1305X16 | A | steel | bright (black) | 10.9 | M5 | 16 | 9,5 | 2,75 | 3 | | | 0.56 $ (USD) | | | K1796.1305X20 | A | steel | bright (black) | 10.9 | M5 | 20 | 9,5 | 2,75 | 3 | | | 0.65 $ (USD) | | | K1796.1305X25 | A | steel | bright (black) | 10.9 | M5 | 25 | 9,5 | 2,75 | 3 | | | 0.79 $ (USD) | | | K1796.1305X30 | A | steel | bright (black) | 10.9 | M5 | 30 | 9,5 | 2,75 | 3 | | | 0.81 $ (USD) | | | K1796.1305X35 | A | steel | bright (black) | 10.9 | M5 | 35 | 9,5 | 2,75 | 3 | | | 0.88 $ (USD) | | | K1796.1305X40 | A | steel | bright (black) | 10.9 | M5 | 40 | 9,5 | 2,75 | 3 | | | 1.17 $ (USD) | | | K1796.1306X8 | A | steel | bright (black) | 10.9 | M6 | 8 | 10,5 | 3,3 | 4 | | | 0.79 $ (USD) | | | K1796.1306X10 | A | steel | bright (black) | 10.9 | M6 | 10 | 10,5 | 3,3 | 4 | | | 0.67 $ (USD) | | | K1796.1306X12 | A | steel | bright (black) | 10.9 | M6 | 12 | 10,5 | 3,3 | 4 | | | 0.70 $ (USD) | | | K1796.1306X16 | A | steel | bright (black) | 10.9 | M6 | 16 | 10,5 | 3,3 | 4 | | | 0.72 $ (USD) | | | K1796.1306X20 | A | steel | bright (black) | 10.9 | M6 | 20 | 10,5 | 3,3 | 4 | | | 0.84 $ (USD) | | | K1796.1306X25 | A | steel | bright (black) | 10.9 | M6 | 25 | 10,5 | 3,3 | 4 | | | 0.77 $ (USD) | | | K1796.1306X30 | A | steel | bright (black) | 10.9 | M6 | 30 | 10,5 | 3,3 | 4 | | | 0.96 $ (USD) | | | K1796.1306X35 | A | steel | bright (black) | 10.9 | M6 | 35 | 10,5 | 3,3 | 4 | | | 1.00 $ (USD) | | | K1796.1306X40 | A | steel | bright (black) | 10.9 | M6 | 40 | 10,5 | 3,3 | 4 | | | 1.28 $ (USD) | | | K1796.1306X45 | A | steel | bright (black) | 10.9 | M6 | 45 | 10,5 | 3,3 | 4 | | | 1.30 $ (USD) | | | K1796.1306X50 | A | steel | bright (black) | 10.9 | M6 | 50 | 10,5 | 3,3 | 4 | | | 1.54 $ (USD) | | | K1796.1306X55 | A | steel | bright (black) | 10.9 | M6 | 55 | 10,5 | 3,3 | 4 | | | 1.87 $ (USD) | | | K1796.1306X60 | A | steel | bright (black) | 10.9 | M6 | 60 | 10,5 | 3,3 | 4 | | | 2.10 $ (USD) | | | K1796.1308X8 | A | steel | bright (black) | 10.9 | M8 | 8 | 14 | 4,4 | 5 | | | 0.98 $ (USD) | | | K1796.1308X10 | A | steel | bright (black) | 10.9 | M8 | 10 | 14 | 4,4 | 5 | | | 0.86 $ (USD) | | | K1796.1308X12 | A | steel | bright (black) | 10.9 | M8 | 12 | 14 | 4,4 | 5 | | | 0.65 $ (USD) | | | K1796.1308X16 | A | steel | bright (black) | 10.9 | M8 | 16 | 14 | 4,4 | 5 | | | 0.60 $ (USD) | | | K1796.1308X20 | A | steel | bright (black) | 10.9 | M8 | 20 | 14 | 4,4 | 5 | | | 0.61 $ (USD) | | | K1796.1308X25 | A | steel | bright (black) | 10.9 | M8 | 25 | 14 | 4,4 | 5 | | | 0.65 $ (USD) | | | K1796.1308X30 | A | steel | bright (black) | 10.9 | M8 | 30 | 14 | 4,4 | 5 | | | 0.86 $ (USD) | | | K1796.1308X35 | A | steel | bright (black) | 10.9 | M8 | 35 | 14 | 4,4 | 5 | | | 0.89 $ (USD) | | | K1796.1308X40 | A | steel | bright (black) | 10.9 | M8 | 40 | 14 | 4,4 | 5 | | | 0.96 $ (USD) | | | K1796.1308X45 | A | steel | bright (black) | 10.9 | M8 | 45 | 14 | 4,4 | 5 | | | 1.09 $ (USD) | | | K1796.1308X50 | A | steel | bright (black) | 10.9 | M8 | 50 | 14 | 4,4 | 5 | | | 1.28 $ (USD) | | | K1796.1308X55 | A | steel | bright (black) | 10.9 | M8 | 55 | 14 | 4,4 | 5 | | | 1.49 $ (USD) | | | K1796.1308X60 | A | steel | bright (black) | 10.9 | M8 | 60 | 14 | 4,4 | 5 | | | 1.73 $ (USD) | | | K1796.1310X12 | A | steel | bright (black) | 10.9 | M10 | 12 | 17,5 | 5,5 | 6 | | | 1.42 $ (USD) | | | K1796.1310X16 | A | steel | bright (black) | 10.9 | M10 | 16 | 17,5 | 5,5 | 6 | | | 1.17 $ (USD) | | | K1796.1310X20 | A | steel | bright (black) | 10.9 | M10 | 20 | 17,5 | 5,5 | 6 | | | 1.23 $ (USD) | | | K1796.1310X25 | A | steel | bright (black) | 10.9 | M10 | 25 | 17,5 | 5,5 | 6 | | | 1.24 $ (USD) | | | K1796.1310X30 | A | steel | bright (black) | 10.9 | M10 | 30 | 17,5 | 5,5 | 6 | | | 1.30 $ (USD) | | | K1796.1310X35 | A | steel | bright (black) | 10.9 | M10 | 35 | 17,5 | 5,5 | 6 | | | 1.45 $ (USD) | | | K1796.1310X40 | A | steel | bright (black) | 10.9 | M10 | 40 | 17,5 | 5,5 | 6 | | | 1.61 $ (USD) | | | K1796.1310X45 | A | steel | bright (black) | 10.9 | M10 | 45 | 17,5 | 5,5 | 6 | | | 1.82 $ (USD) | | | K1796.1310X50 | A | steel | bright (black) | 10.9 | M10 | 50 | 17,5 | 5,5 | 6 | | | 2.03 $ (USD) | | | K1796.1310X55 | A | steel | bright (black) | 10.9 | M10 | 55 | 17,5 | 5,5 | 6 | | | 2.40 $ (USD) | | | K1796.1310X60 | A | steel | bright (black) | 10.9 | M10 | 60 | 17,5 | 5,5 | 6 | | | 2.56 $ (USD) | | | K1796.1503X8 | A | steel | galvanised | 10.9 | M3 | 8 | 5,7 | 1,65 | 2 | | | 0.67 $ (USD) | | | K1796.1503X10 | A | steel | galvanised | 10.9 | M3 | 10 | 5,7 | 1,65 | 2 | | | 0.67 $ (USD) | | | K1796.1503X12 | A | steel | galvanised | 10.9 | M3 | 12 | 5,7 | 1,65 | 2 | | | 0.70 $ (USD) | | | K1796.1503X16 | A | steel | galvanised | 10.9 | M3 | 16 | 5,7 | 1,65 | 2 | | | 0.70 $ (USD) | | | K1796.1503X20 | A | steel | galvanised | 10.9 | M3 | 20 | 5,7 | 1,65 | 2 | | | 0.77 $ (USD) | | | K1796.1504X8 | A | steel | galvanised | 10.9 | M4 | 8 | 7,6 | 2,2 | 2,5 | | | 0.49 $ (USD) | | | K1796.1504X10 | A | steel | galvanised | 10.9 | M4 | 10 | 7,6 | 2,2 | 2,5 | | | 0.54 $ (USD) | | | K1796.1504X12 | A | steel | galvanised | 10.9 | M4 | 12 | 7,6 | 2,2 | 2,5 | | | 0.58 $ (USD) | | | K1796.1504X16 | A | steel | galvanised | 10.9 | M4 | 16 | 7,6 | 2,2 | 2,5 | | | 0.65 $ (USD) | | | K1796.1504X20 | A | steel | galvanised | 10.9 | M4 | 20 | 7,6 | 2,2 | 2,5 | | | 0.65 $ (USD) | | | K1796.1504X25 | A | steel | galvanised | 10.9 | M4 | 25 | 7,6 | 2,2 | 2,5 | | | 0.68 $ (USD) | | | K1796.1504X30 | A | steel | galvanised | 10.9 | M4 | 30 | 7,6 | 2,2 | 2,5 | | | 0.79 $ (USD) | | | K1796.1505X8 | A | steel | galvanised | 10.9 | M5 | 8 | 9,5 | 2,75 | 3 | | | 0.60 $ (USD) | | | K1796.1505X10 | A | steel | galvanised | 10.9 | M5 | 10 | 9,5 | 2,75 | 3 | | | 0.54 $ (USD) | | | K1796.1505X12 | A | steel | galvanised | 10.9 | M5 | 12 | 9,5 | 2,75 | 3 | | | 0.56 $ (USD) | | | K1796.1505X16 | A | steel | galvanised | 10.9 | M5 | 16 | 9,5 | 2,75 | 3 | | | 0.58 $ (USD) | | | K1796.1505X20 | A | steel | galvanised | 10.9 | M5 | 20 | 9,5 | 2,75 | 3 | | | 0.67 $ (USD) | | | K1796.1505X25 | A | steel | galvanised | 10.9 | M5 | 25 | 9,5 | 2,75 | 3 | | | 0.81 $ (USD) | | | K1796.1505X30 | A | steel | galvanised | 10.9 | M5 | 30 | 9,5 | 2,75 | 3 | | | 0.84 $ (USD) | | | K1796.1505X35 | A | steel | galvanised | 10.9 | M5 | 35 | 9,5 | 2,75 | 3 | | | 0.89 $ (USD) | | | K1796.1505X40 | A | steel | galvanised | 10.9 | M5 | 40 | 9,5 | 2,75 | 3 | | | 1.19 $ (USD) | | | K1796.1505X45 | A | steel | galvanised | 10.9 | M5 | 45 | 9,5 | 2,75 | 3 | | | 1.42 $ (USD) | | | K1796.1506X8 | A | steel | galvanised | 10.9 | M6 | 8 | 10,5 | 3,3 | 4 | | | 0.81 $ (USD) | | | K1796.1506X10 | A | steel | galvanised | 10.9 | M6 | 10 | 10,5 | 3,3 | 4 | | | 0.68 $ (USD) | | | K1796.1506X12 | A | steel | galvanised | 10.9 | M6 | 12 | 10,5 | 3,3 | 4 | | | 0.72 $ (USD) | | | K1796.1506X16 | A | steel | galvanised | 10.9 | M6 | 16 | 10,5 | 3,3 | 4 | | | 0.77 $ (USD) | | | K1796.1506X20 | A | steel | galvanised | 10.9 | M6 | 20 | 10,5 | 3,3 | 4 | | | 0.86 $ (USD) | | | K1796.1506X25 | A | steel | galvanised | 10.9 | M6 | 25 | 10,5 | 3,3 | 4 | | | 0.79 $ (USD) | | | K1796.1506X30 | A | steel | galvanised | 10.9 | M6 | 30 | 10,5 | 3,3 | 4 | | | 0.98 $ (USD) | | | K1796.1506X35 | A | steel | galvanised | 10.9 | M6 | 35 | 10,5 | 3,3 | 4 | | | 1.05 $ (USD) | | | K1796.1506X40 | A | steel | galvanised | 10.9 | M6 | 40 | 10,5 | 3,3 | 4 | | | 1.30 $ (USD) | | | K1796.1506X45 | A | steel | galvanised | 10.9 | M6 | 45 | 10,5 | 3,3 | 4 | | | 1.35 $ (USD) | | | K1796.1506X50 | A | steel | galvanised | 10.9 | M6 | 50 | 10,5 | 3,3 | 4 | | | 1.58 $ (USD) | | | K1796.1506X55 | A | steel | galvanised | 10.9 | M6 | 55 | 10,5 | 3,3 | 4 | | | 1.91 $ (USD) | | | K1796.1506X60 | A | steel | galvanised | 10.9 | M6 | 60 | 10,5 | 3,3 | 4 | | | 2.15 $ (USD) | | | K1796.1508X8 | A | steel | galvanised | 10.9 | M8 | 8 | 14 | 4,4 | 5 | | | 1.00 $ (USD) | | | K1796.1508X10 | A | steel | galvanised | 10.9 | M8 | 10 | 14 | 4,4 | 5 | | | 0.88 $ (USD) | | | K1796.1508X12 | A | steel | galvanised | 10.9 | M8 | 12 | 14 | 4,4 | 5 | | | 0.67 $ (USD) | | | K1796.1508X16 | A | steel | galvanised | 10.9 | M8 | 16 | 14 | 4,4 | 5 | | | 0.61 $ (USD) | | | K1796.1508X20 | A | steel | galvanised | 10.9 | M8 | 20 | 14 | 4,4 | 5 | | | 0.65 $ (USD) | | | K1796.1508X25 | A | steel | galvanised | 10.9 | M8 | 25 | 14 | 4,4 | 5 | | | 0.67 $ (USD) | | | K1796.1508X30 | A | steel | galvanised | 10.9 | M8 | 30 | 14 | 4,4 | 5 | | | 0.88 $ (USD) | | | K1796.1508X35 | A | steel | galvanised | 10.9 | M8 | 35 | 14 | 4,4 | 5 | | | 0.91 $ (USD) | | | K1796.1508X40 | A | steel | galvanised | 10.9 | M8 | 40 | 14 | 4,4 | 5 | | | 0.98 $ (USD) | | | K1796.1508X45 | A | steel | galvanised | 10.9 | M8 | 45 | 14 | 4,4 | 5 | | | 1.10 $ (USD) | | | K1796.1508X50 | A | steel | galvanised | 10.9 | M8 | 50 | 14 | 4,4 | 5 | | | 1.30 $ (USD) | | | K1796.1508X55 | A | steel | galvanised | 10.9 | M8 | 55 | 14 | 4,4 | 5 | | | 1.52 $ (USD) | | | K1796.1508X60 | A | steel | galvanised | 10.9 | M8 | 60 | 14 | 4,4 | 5 | | | 1.77 $ (USD) | | | K1796.1510X12 | A | steel | galvanised | 10.9 | M10 | 12 | 17,5 | 5,5 | 6 | | | 1.44 $ (USD) | | | K1796.1510X16 | A | steel | galvanised | 10.9 | M10 | 16 | 17,5 | 5,5 | 6 | | | 1.19 $ (USD) | | | K1796.1510X20 | A | steel | galvanised | 10.9 | M10 | 20 | 17,5 | 5,5 | 6 | | | 1.24 $ (USD) | | | K1796.1510X25 | A | steel | galvanised | 10.9 | M10 | 25 | 17,5 | 5,5 | 6 | | | 1.28 $ (USD) | | | K1796.1510X30 | A | steel | galvanised | 10.9 | M10 | 30 | 17,5 | 5,5 | 6 | | | 1.35 $ (USD) | | | K1796.1510X35 | A | steel | galvanised | 10.9 | M10 | 35 | 17,5 | 5,5 | 6 | | | 1.47 $ (USD) | | | K1796.1510X40 | A | steel | galvanised | 10.9 | M10 | 40 | 17,5 | 5,5 | 6 | | | 1.65 $ (USD) | | | K1796.1510X45 | A | steel | galvanised | 10.9 | M10 | 45 | 17,5 | 5,5 | 6 | | | 1.84 $ (USD) | | | K1796.1510X50 | A | steel | galvanised | 10.9 | M10 | 50 | 17,5 | 5,5 | 6 | | | 2.05 $ (USD) | | | K1796.1510X55 | A | steel | galvanised | 10.9 | M10 | 55 | 17,5 | 5,5 | 6 | | | 2.42 $ (USD) | | | K1796.1510X60 | A | steel | galvanised | 10.9 | M10 | 60 | 17,5 | 5,5 | 6 | | | 2.61 $ (USD) | | | K1796.1512X16 | A | steel | galvanised | 10.9 | M12 | 16 | 21 | 6,6 | 8 | | | 2.63 $ (USD) | | | K1796.1512X20 | A | steel | galvanised | 10.9 | M12 | 20 | 21 | 6,6 | 8 | | | 1.87 $ (USD) | | | K1796.1512X25 | A | steel | galvanised | 10.9 | M12 | 25 | 21 | 6,6 | 8 | | | 2.36 $ (USD) | | | K1796.1512X30 | A | steel | galvanised | 10.9 | M12 | 30 | 21 | 6,6 | 8 | | | 2.64 $ (USD) | | | K1796.1512X35 | A | steel | galvanised | 10.9 | M12 | 35 | 21 | 6,6 | 8 | | | 3.01 $ (USD) | | | K1796.1512X40 | A | steel | galvanised | 10.9 | M12 | 40 | 21 | 6,6 | 8 | | | 3.08 $ (USD) | | | K1796.1512X45 | A | steel | galvanised | 10.9 | M12 | 45 | 21 | 6,6 | 8 | | | 3.48 $ (USD) | | | K1796.1512X50 | A | steel | galvanised | 10.9 | M12 | 50 | 21 | 6,6 | 8 | | | 3.59 $ (USD) | | | K1796.1512X60 | A | steel | galvanised | 10.9 | M12 | 60 | 21 | 6,6 | 8 | | | 4.45 $ (USD) | | | K1796.1516X30 | A | steel | galvanised | 10.9 | M16 | 30 | 28 | 8,8 | 10 | | | 6.18 $ (USD) | | | K1796.1516X40 | A | steel | galvanised | 10.9 | M16 | 40 | 28 | 8,8 | 10 | | | 7.39 $ (USD) | | | K1796.1516X45 | A | steel | galvanised | 10.9 | M16 | 45 | 28 | 8,8 | 10 | | | 6.41 $ (USD) | | | K1796.1516X50 | A | steel | galvanised | 10.9 | M16 | 50 | 28 | 8,8 | 10 | | | 6.49 $ (USD) | | | K1796.1516X60 | A | steel | galvanised | 10.9 | M16 | 60 | 28 | 8,8 | 10 | | | 7.35 $ (USD) | | | K1796.1103X8 | A | stainless steel A2 | bright | 70 | M3 | 8 | 5,7 | 1,65 | 2 | | | 0.23 $ (USD) | | | K1796.1103X10 | A | stainless steel A2 | bright | 70 | M3 | 10 | 5,7 | 1,65 | 2 | | | 0.23 $ (USD) | | | K1796.1103X12 | A | stainless steel A2 | bright | 70 | M3 | 12 | 5,7 | 1,65 | 2 | | | 0.23 $ (USD) | | | K1796.1103X16 | A | stainless steel A2 | bright | 70 | M3 | 16 | 5,7 | 1,65 | 2 | | | 0.28 $ (USD) | | | K1796.1103X20 | A | stainless steel A2 | bright | 70 | M3 | 20 | 5,7 | 1,65 | 2 | | | 0.37 $ (USD) | | | K1796.1104X8 | A | stainless steel A2 | bright | 70 | M4 | 8 | 7,6 | 2,2 | 2,5 | | | 0.30 $ (USD) | | | K1796.1104X10 | A | stainless steel A2 | bright | 70 | M4 | 10 | 7,6 | 2,2 | 2,5 | | | 0.35 $ (USD) | | | K1796.1104X12 | A | stainless steel A2 | bright | 70 | M4 | 12 | 7,6 | 2,2 | 2,5 | | | 0.39 $ (USD) | | | K1796.1104X16 | A | stainless steel A2 | bright | 70 | M4 | 16 | 7,6 | 2,2 | 2,5 | | | 0.51 $ (USD) | | | K1796.1104X20 | A | stainless steel A2 | bright | 70 | M4 | 20 | 7,6 | 2,2 | 2,5 | | | 0.60 $ (USD) | | | K1796.1104X25 | A | stainless steel A2 | bright | 70 | M4 | 25 | 7,6 | 2,2 | 2,5 | | | 0.68 $ (USD) | | | K1796.1104X30 | A | stainless steel A2 | bright | 70 | M4 | 30 | 7,6 | 2,2 | 2,5 | | | 0.81 $ (USD) | | | K1796.1105X8 | A | stainless steel A2 | bright | 70 | M5 | 8 | 9,5 | 2,75 | 3 | | | 0.58 $ (USD) | | | K1796.1105X10 | A | stainless steel A2 | bright | 70 | M5 | 10 | 9,5 | 2,75 | 3 | | | 0.60 $ (USD) | | | K1796.1105X12 | A | stainless steel A2 | bright | 70 | M5 | 12 | 9,5 | 2,75 | 3 | | | 0.61 $ (USD) | | | K1796.1105X16 | A | stainless steel A2 | bright | 70 | M5 | 16 | 9,5 | 2,75 | 3 | | | 0.67 $ (USD) | | | K1796.1105X20 | A | stainless steel A2 | bright | 70 | M5 | 20 | 9,5 | 2,75 | 3 | | | 0.79 $ (USD) | | | K1796.1105X25 | A | stainless steel A2 | bright | 70 | M5 | 25 | 9,5 | 2,75 | 3 | | | 0.89 $ (USD) | | | K1796.1105X30 | A | stainless steel A2 | bright | 70 | M5 | 30 | 9,5 | 2,75 | 3 | | | 1.07 $ (USD) | | | K1796.1105X40 | A | stainless steel A2 | bright | 70 | M5 | 40 | 9,5 | 2,75 | 3 | | | 1.35 $ (USD) | | | K1796.1105X45 | A | stainless steel A2 | bright | 70 | M5 | 45 | 9,5 | 2,75 | 3 | | | 1.58 $ (USD) | | | K1796.1106X8 | A | stainless steel A2 | bright | 70 | M6 | 8 | 10,5 | 3,3 | 4 | | | 0.77 $ (USD) | | | K1796.1106X10 | A | stainless steel A2 | bright | 70 | M6 | 10 | 10,5 | 3,3 | 4 | | | 0.67 $ (USD) | | | K1796.1106X12 | A | stainless steel A2 | bright | 70 | M6 | 12 | 10,5 | 3,3 | 4 | | | 0.70 $ (USD) | | | K1796.1106X16 | A | stainless steel A2 | bright | 70 | M6 | 16 | 10,5 | 3,3 | 4 | | | 0.72 $ (USD) | | | K1796.1106X20 | A | stainless steel A2 | bright | 70 | M6 | 20 | 10,5 | 3,3 | 4 | | | 0.86 $ (USD) | | | K1796.1106X25 | A | stainless steel A2 | bright | 70 | M6 | 25 | 10,5 | 3,3 | 4 | | | 1.00 $ (USD) | | | K1796.1106X30 | A | stainless steel A2 | bright | 70 | M6 | 30 | 10,5 | 3,3 | 4 | | | 1.16 $ (USD) | | | K1796.1106X35 | A | stainless steel A2 | bright | 70 | M6 | 35 | 10,5 | 3,3 | 4 | | | 1.38 $ (USD) | | | K1796.1106X40 | A | stainless steel A2 | bright | 70 | M6 | 40 | 10,5 | 3,3 | 4 | | | 1.49 $ (USD) | | | K1796.1106X45 | A | stainless steel A2 | bright | 70 | M6 | 45 | 10,5 | 3,3 | 4 | | | 1.68 $ (USD) | | | K1796.1106X50 | A | stainless steel A2 | bright | 70 | M6 | 50 | 10,5 | 3,3 | 4 | | | 1.75 $ (USD) | | | K1796.1106X60 | A | stainless steel A2 | bright | 70 | M6 | 60 | 10,5 | 3,3 | 4 | | | 2.07 $ (USD) | | | K1796.1108X10 | A | stainless steel A2 | bright | 70 | M8 | 10 | 14 | 4,4 | 5 | | | 0.88 $ (USD) | | | K1796.1108X12 | A | stainless steel A2 | bright | 70 | M8 | 12 | 14 | 4,4 | 5 | | | 0.81 $ (USD) | | | K1796.1108X16 | A | stainless steel A2 | bright | 70 | M8 | 16 | 14 | 4,4 | 5 | | | 0.81 $ (USD) | | | K1796.1108X20 | A | stainless steel A2 | bright | 70 | M8 | 20 | 14 | 4,4 | 5 | | | 1.00 $ (USD) | | | K1796.1108X25 | A | stainless steel A2 | bright | 70 | M8 | 25 | 14 | 4,4 | 5 | | | 1.17 $ (USD) | | | K1796.1108X30 | A | stainless steel A2 | bright | 70 | M8 | 30 | 14 | 4,4 | 5 | | | 1.42 $ (USD) | | | K1796.1108X35 | A | stainless steel A2 | bright | 70 | M8 | 35 | 14 | 4,4 | 5 | | | 1.58 $ (USD) | | | K1796.1108X40 | A | stainless steel A2 | bright | 70 | M8 | 40 | 14 | 4,4 | 5 | | | 1.77 $ (USD) | | | K1796.1108X45 | A | stainless steel A2 | bright | 70 | M8 | 45 | 14 | 4,4 | 5 | | | 2.03 $ (USD) | | | K1796.1108X50 | A | stainless steel A2 | bright | 70 | M8 | 50 | 14 | 4,4 | 5 | | | 2.26 $ (USD) | | | K1796.1108X60 | A | stainless steel A2 | bright | 70 | M8 | 60 | 14 | 4,4 | 5 | | | 2.56 $ (USD) | | | K1796.1110X16 | A | stainless steel A2 | bright | 70 | M10 | 16 | 17,5 | 5,5 | 6 | | | 1.94 $ (USD) | | | K1796.1110X20 | A | stainless steel A2 | bright | 70 | M10 | 20 | 17,5 | 5,5 | 6 | | | 1.84 $ (USD) | | | K1796.1110X25 | A | stainless steel A2 | bright | 70 | M10 | 25 | 17,5 | 5,5 | 6 | | | 2.07 $ (USD) | | | K1796.1110X30 | A | stainless steel A2 | bright | 70 | M10 | 30 | 17,5 | 5,5 | 6 | | | 2.15 $ (USD) | | | K1796.1110X40 | A | stainless steel A2 | bright | 70 | M10 | 40 | 17,5 | 5,5 | 6 | | | 2.92 $ (USD) | | | K1796.1110X50 | A | stainless steel A2 | bright | 70 | M10 | 50 | 17,5 | 5,5 | 6 | | | 3.48 $ (USD) | | | K1796.1603X10 | A | stainless steel A4 | bright | 70 | M3 | 10 | 5,7 | 1,65 | 2 | | | 0.30 $ (USD) | | | K1796.1603X12 | A | stainless steel A4 | bright | 70 | M3 | 12 | 5,7 | 1,65 | 2 | | | 0.30 $ (USD) | | | K1796.1603X16 | A | stainless steel A4 | bright | 70 | M3 | 16 | 5,7 | 1,65 | 2 | | | 0.39 $ (USD) | | | K1796.1603X20 | A | stainless steel A4 | bright | 70 | M3 | 20 | 5,7 | 1,65 | 2 | | | 0.49 $ (USD) | | | K1796.1604X8 | A | stainless steel A4 | bright | 70 | M4 | 8 | 7,6 | 2,2 | 2,5 | | | 0.40 $ (USD) | | | K1796.1604X10 | A | stainless steel A4 | bright | 70 | M4 | 10 | 7,6 | 2,2 | 2,5 | | | 0.42 $ (USD) | | | K1796.1604X12 | A | stainless steel A4 | bright | 70 | M4 | 12 | 7,6 | 2,2 | 2,5 | | | 0.51 $ (USD) | | | K1796.1604X16 | A | stainless steel A4 | bright | 70 | M4 | 16 | 7,6 | 2,2 | 2,5 | | | 0.65 $ (USD) | | | K1796.1604X20 | A | stainless steel A4 | bright | 70 | M4 | 20 | 7,6 | 2,2 | 2,5 | | | 0.79 $ (USD) | | | K1796.1604X25 | A | stainless steel A4 | bright | 70 | M4 | 25 | 7,6 | 2,2 | 2,5 | | | 0.89 $ (USD) | | | K1796.1604X30 | A | stainless steel A4 | bright | 70 | M4 | 30 | 7,6 | 2,2 | 2,5 | | | 1.07 $ (USD) | | | K1796.1605X8 | A | stainless steel A4 | bright | 70 | M5 | 8 | 9,5 | 2,75 | 3 | | | 0.72 $ (USD) | | | K1796.1605X10 | A | stainless steel A4 | bright | 70 | M5 | 10 | 9,5 | 2,75 | 3 | | | 0.79 $ (USD) | | | K1796.1605X12 | A | stainless steel A4 | bright | 70 | M5 | 12 | 9,5 | 2,75 | 3 | | | 0.81 $ (USD) | | | K1796.1605X16 | A | stainless steel A4 | bright | 70 | M5 | 16 | 9,5 | 2,75 | 3 | | | 0.86 $ (USD) | | | K1796.1605X20 | A | stainless steel A4 | bright | 70 | M5 | 20 | 9,5 | 2,75 | 3 | | | 1.05 $ (USD) | | | K1796.1605X25 | A | stainless steel A4 | bright | 70 | M5 | 25 | 9,5 | 2,75 | 3 | | | 1.17 $ (USD) | | | K1796.1605X30 | A | stainless steel A4 | bright | 70 | M5 | 30 | 9,5 | 2,75 | 3 | | | 1.37 $ (USD) | | | K1796.1605X40 | A | stainless steel A4 | bright | 70 | M5 | 40 | 9,5 | 2,75 | 3 | | | 1.75 $ (USD) | | | K1796.1605X45 | A | stainless steel A4 | bright | 70 | M5 | 45 | 9,5 | 2,75 | 3 | | | 2.05 $ (USD) | | | K1796.1606X8 | A | stainless steel A4 | bright | 70 | M6 | 8 | 10,5 | 3,3 | 4 | | | 1.00 $ (USD) | | | K1796.1606X10 | A | stainless steel A4 | bright | 70 | M6 | 10 | 10,5 | 3,3 | 4 | | | 0.86 $ (USD) | | | K1796.1606X12 | A | stainless steel A4 | bright | 70 | M6 | 12 | 10,5 | 3,3 | 4 | | | 0.91 $ (USD) | | | K1796.1606X16 | A | stainless steel A4 | bright | 70 | M6 | 16 | 10,5 | 3,3 | 4 | | | 0.96 $ (USD) | | | K1796.1606X20 | A | stainless steel A4 | bright | 70 | M6 | 20 | 10,5 | 3,3 | 4 | | | 1.14 $ (USD) | | | K1796.1606X25 | A | stainless steel A4 | bright | 70 | M6 | 25 | 10,5 | 3,3 | 4 | | | 1.30 $ (USD) | | | K1796.1606X30 | A | stainless steel A4 | bright | 70 | M6 | 30 | 10,5 | 3,3 | 4 | | | 1.47 $ (USD) | | | K1796.1606X35 | A | stainless steel A4 | bright | 70 | M6 | 35 | 10,5 | 3,3 | 4 | | | 1.79 $ (USD) | | | K1796.1606X40 | A | stainless steel A4 | bright | 70 | M6 | 40 | 10,5 | 3,3 | 4 | | | 1.96 $ (USD) | | | K1796.1606X45 | A | stainless steel A4 | bright | 70 | M6 | 45 | 10,5 | 3,3 | 4 | | | 2.15 $ (USD) | | | K1796.1606X50 | A | stainless steel A4 | bright | 70 | M6 | 50 | 10,5 | 3,3 | 4 | | | 2.29 $ (USD) | | | K1796.1606X60 | A | stainless steel A4 | bright | 70 | M6 | 60 | 10,5 | 3,3 | 4 | | | 2.70 $ (USD) | | | K1796.1608X10 | A | stainless steel A4 | bright | 70 | M8 | 10 | 14 | 4,4 | 5 | | | 1.16 $ (USD) | | | K1796.1608X12 | A | stainless steel A4 | bright | 70 | M8 | 12 | 14 | 4,4 | 5 | | | 1.50 $ (USD) | | | K1796.1608X16 | A | stainless steel A4 | bright | 70 | M8 | 16 | 14 | 4,4 | 5 | | | 1.07 $ (USD) | | | K1796.1608X20 | A | stainless steel A4 | bright | 70 | M8 | 20 | 14 | 4,4 | 5 | | | 1.30 $ (USD) | | | K1796.1608X25 | A | stainless steel A4 | bright | 70 | M8 | 25 | 14 | 4,4 | 5 | | | 1.52 $ (USD) | | | K1796.1608X30 | A | stainless steel A4 | bright | 70 | M8 | 30 | 14 | 4,4 | 5 | | | 1.84 $ (USD) | | | K1796.1608X35 | A | stainless steel A4 | bright | 70 | M8 | 35 | 14 | 4,4 | 5 | | | 2.05 $ (USD) | | | K1796.1608X40 | A | stainless steel A4 | bright | 70 | M8 | 40 | 14 | 4,4 | 5 | | | 2.31 $ (USD) | | | K1796.1608X45 | A | stainless steel A4 | bright | 70 | M8 | 45 | 14 | 4,4 | 5 | | | 2.64 $ (USD) | | | K1796.1608X50 | A | stainless steel A4 | bright | 70 | M8 | 50 | 14 | 4,4 | 5 | | | 2.92 $ (USD) | | | K1796.1608X60 | A | stainless steel A4 | bright | 70 | M8 | 60 | 14 | 4,4 | 5 | | | 3.31 $ (USD) | | | K1796.1610X16 | A | stainless steel A4 | bright | 70 | M10 | 16 | 17,5 | 5,5 | 6 | | | 2.52 $ (USD) | | | K1796.1610X20 | A | stainless steel A4 | bright | 70 | M10 | 20 | 17,5 | 5,5 | 6 | | | 2.40 $ (USD) | | | K1796.1610X25 | A | stainless steel A4 | bright | 70 | M10 | 25 | 17,5 | 5,5 | 6 | | | 2.70 $ (USD) | | | K1796.1610X30 | A | stainless steel A4 | bright | 70 | M10 | 30 | 17,5 | 5,5 | 6 | | | 2.82 $ (USD) | | | K1796.1610X40 | A | stainless steel A4 | bright | 70 | M10 | 40 | 17,5 | 5,5 | 6 | | | 3.80 $ (USD) | | | K1796.1610X50 | A | stainless steel A4 | bright | 70 | M10 | 50 | 17,5 | 5,5 | 6 | | | 4.50 $ (USD) | |
