Fixed castors

go back

Products
- Material handling
  - Wheels and rollers
    - Swivel and fixed castors heavy-duty version
      - Fixed castors

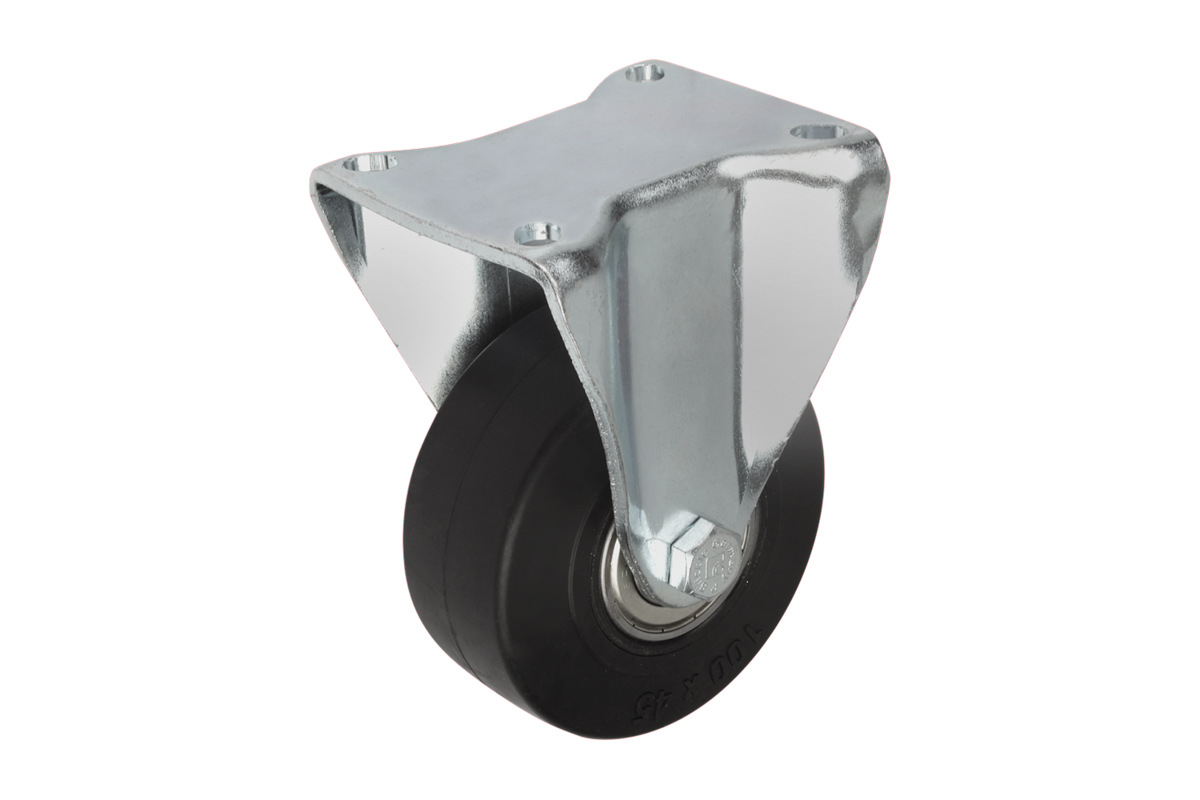

Item description/product images

DescriptionMaterial:Housing thick steel plate.
Tyres steel-wire reinforced elastic solid rubber.
Wheel body welded steel.Version:Pressed housing; reinforced fork, top plate and swivel head bolt; wheels with precision ball bearingNote:These castors are particularly impact and shock proof and assure a high service life.
Wheel axle bolted.Special features:

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	Permissible load kg	Price
K1763.100401	Fixed castor	without locking system	ball bearing	40	60	-	85	100	9	140	100	80	180	96.67 $ (USD)
K1763.125501	Fixed castor	without locking system	ball bearing	50	80	75	110	125	11	170	140	105	280	149.11 $ (USD)
K1763.160501	Fixed castor	without locking system	ball bearing	50	80	75	110	160	11	202	140	105	400	206.26 $ (USD)
K1763.200501	Fixed castor	without locking system	ball bearing	50	80	75	110	200	11	245	140	105	500	222.99 $ (USD)
K1763.250601	Fixed castor	without locking system	ball bearing	60	80	75	110	250	11	295	140	105	700	340.66 $ (USD)
