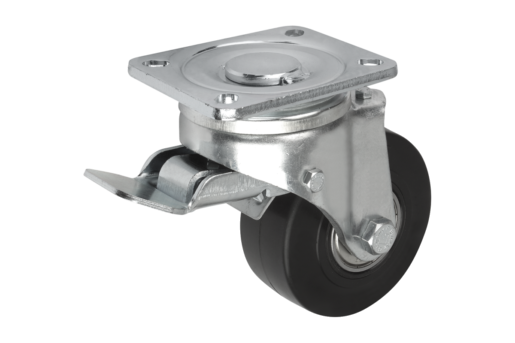

Swivel castors with "stop-top"

go back

Products
- Material handling
  - Wheels and rollers
    - Swivel and fixed castors heavy-duty version
      - Swivel castors with "stop-top"

Item description/product images

DescriptionMaterial:Housing thick steel plate.
Tyres steel-wire reinforced elastic solid rubber.
Wheel body welded steel.Version:Housing pressed. Reinforced forks, base plates and swivel head bolts. Wheels with precision ball bearing.Note:These castors are particularly impact and shock proof and assure a high service life.
Wheel axle bolted.

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
K1763.100402	Swivel castor	with stop-top locking system	ball bearing	45	40	60	-	85	100	9	140	100	80	95	180	215.67 $ (USD)
K1763.125502	Swivel castor	with stop-top locking system	ball bearing	55	50	80	75	110	125	11	170	140	105	117,5	280	261.04 $ (USD)
K1763.160502	Swivel castor	with stop-top locking system	ball bearing	65	50	80	75	110	160	11	202	140	105	145	400	326.98 $ (USD)
K1763.200502	Swivel castor	with stop-top locking system	ball bearing	70	50	80	75	110	200	11	245	140	105	170	500	354.80 $ (USD)
K1763.250602	Swivel castor	with stop-top locking system	ball bearing	82	60	80	75	110	250	11	295	140	105	207	700	468.85 $ (USD)
