Product groups

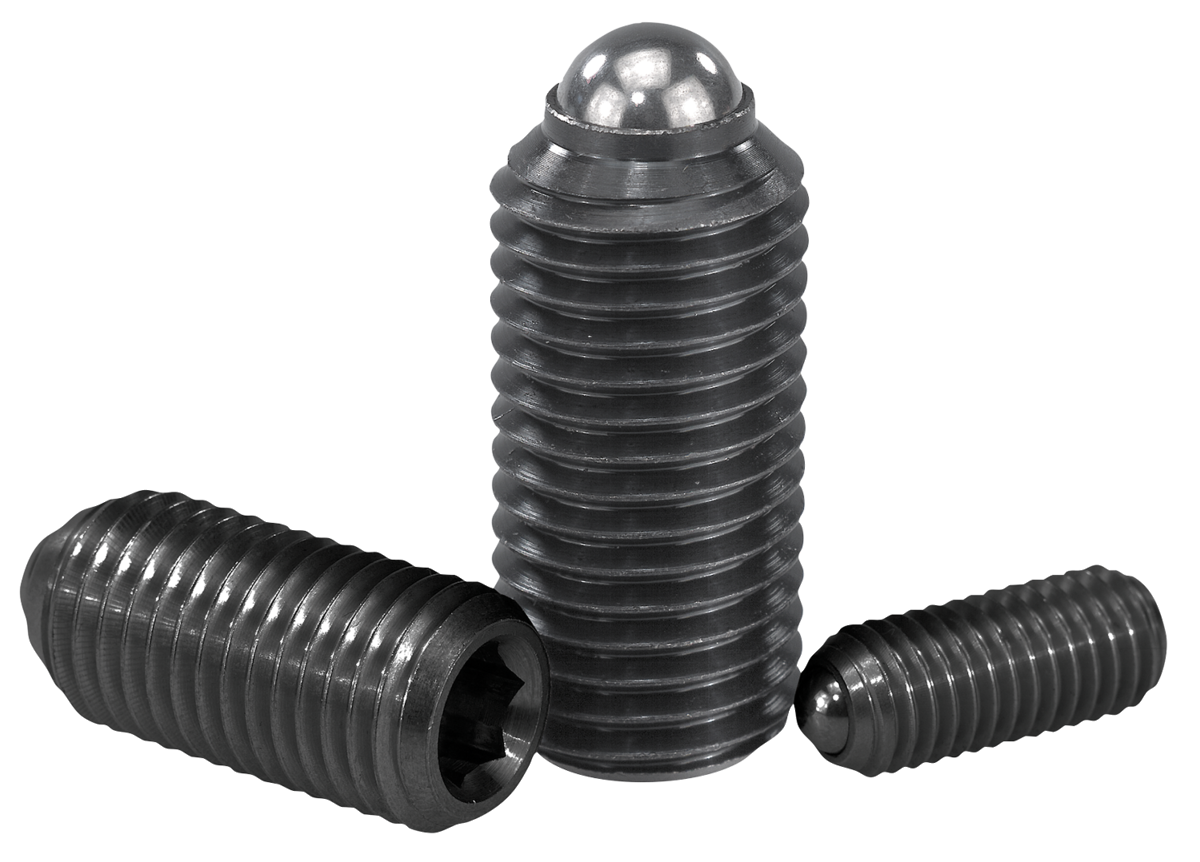

Spring Plungers ball style, hexagon socket, steel, heavy end pressure, metric
K0315 Metric

Spring Plungers ball style, hexagon socket, steel, heavy end...

go back

Item description/product images

DescriptionMaterial:Sleeve steel grade 5.8.
Ball steel.
Spring grade D steel wire.
Version:Black oxidised. Ball hardened.Special features:
RoHS

Drawings

Spring Plungers ball style, hexagon socket, steel, heavy end pressure, metric

Item selection/filter

Order No.

DD1HLSSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0315.203M31,50,491,557 on request
K0315.204M42,50,81021222 on request
K0315.205M530,9142,51930 on request
K0315.206M63,511532840 on request
K0315.208M851,51844773 on request
K0315.210M106223566100 on request
K0315.212M1282,526666120 on request
K0315.216M16103,533890180 on request
K0315.220M20124,54310115240 on request
K0315.224M24155,54812130270 on request
