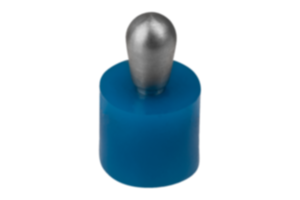

K1733_ESLateral spring plungers with plastic spring, stainless steel... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve and spring plastic.
Trust pin stainless steel.Version:Thrust pin bright.Note:Lateral spring plungers are used for positioning, holding and fastening workpieces in applications where there is increased presence of dirt.
For example: painting and sandblasting.
Calculation dimension X:
Y > = L1-D1/2, therefore X=D1/2-S
Y < L1-D1/2, therefore X =D1/2-S-((L1-D1/2-Y)*0,123)
Light spring force = blue spring
Standard spring force = red spring
Strong spring force = green springAssembly:The sleeve is pressed into the hole.
It is recommended to moisten the sleeve before assembly.Drawing reference:1) Assembly tool
2) Some sizes have a different pin form
Y = workpiece height
W = workpiece length
X = coordinate dimension
Z = stop diameter |
| Order No. | Version 1 | Version 2 | D
| D1 | D2 | L | L1 | ±S | F
ca.N | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| K1733.110307 | light spring force | different pin form | 6 | 3 | 2,9 | 7 | 3,7 | 0,4 | 10 | K1733.03 |  | | 9.38 $ (USD) | | | K1733.110409 | light spring force | - | 8 | 4 | 7,9 | 9 | 5,2 | 0,6 | 15 | K1733.04 | | | 9.76 $ (USD) | | | K1733.110509 | light spring force | - | 10 | 5 | 9,9 | 9 | 7,3 | 0,8 | 30 | K1733.05 | | | 10.74 $ (USD) | | | K1733.110609 | light spring force | - | 10 | 6 | 9,9 | 9 | 10,3 | 1 | 20 | K1733.05 | | | 11.57 $ (USD) | | | K1733.210307 | standard spring force | different pin form | 6 | 3 | 5,9 | 7 | 3,7 | 0,4 | 20 | K1733.03 | | | 9.38 $ (USD) | | | K1733.210409 | standard spring force | - | 8 | 4 | 7,9 | 9 | 5,2 | 0,6 | 30 | K1733.04 | | | 9.76 $ (USD) | | | K1733.210509 | standard spring force | - | 10 | 5 | 9,9 | 9 | 7,3 | 0,8 | 60 | K1733.05 | | | 10.74 $ (USD) | | | K1733.210609 | standard spring force | - | 10 | 6 | 9,9 | 9 | 10,3 | 1 | 30 | K1733.05 | | | 11.57 $ (USD) | | | K1733.210813 | standard spring force | - | 12 | 8 | 11,9 | 13 | 13,3 | 1,2 | 50 | K1733.08 | | | 12.58 $ (USD) | | | K1733.211016 | standard spring force | - | 16 | 10 | 15,9 | 16 | 16,9 | 1,6 | 80 | K1733.10 | | | 13.23 $ (USD) | | | K1733.310509 | intensified spring force | - | 10 | 5 | 9,9 | 9 | 7,3 | 0,8 | 90 | K1733.05 | | | 10.74 $ (USD) | | | K1733.310609 | intensified spring force | - | 10 | 6 | 9,9 | 9 | 10,3 | 1 | 60 | K1733.05 | | | 11.57 $ (USD) | | | K1733.310813 | intensified spring force | - | 12 | 8 | 11,9 | 13 | 13,2 | 1,2 | 100 | K1733.08 | | | 12.58 $ (USD) | | | K1733.311016 | intensified spring force | - | 16 | 10 | 15,9 | 16 | 16,6 | 1,6 | 160 | K1733.10 | | | 13.23 $ (USD) | |
