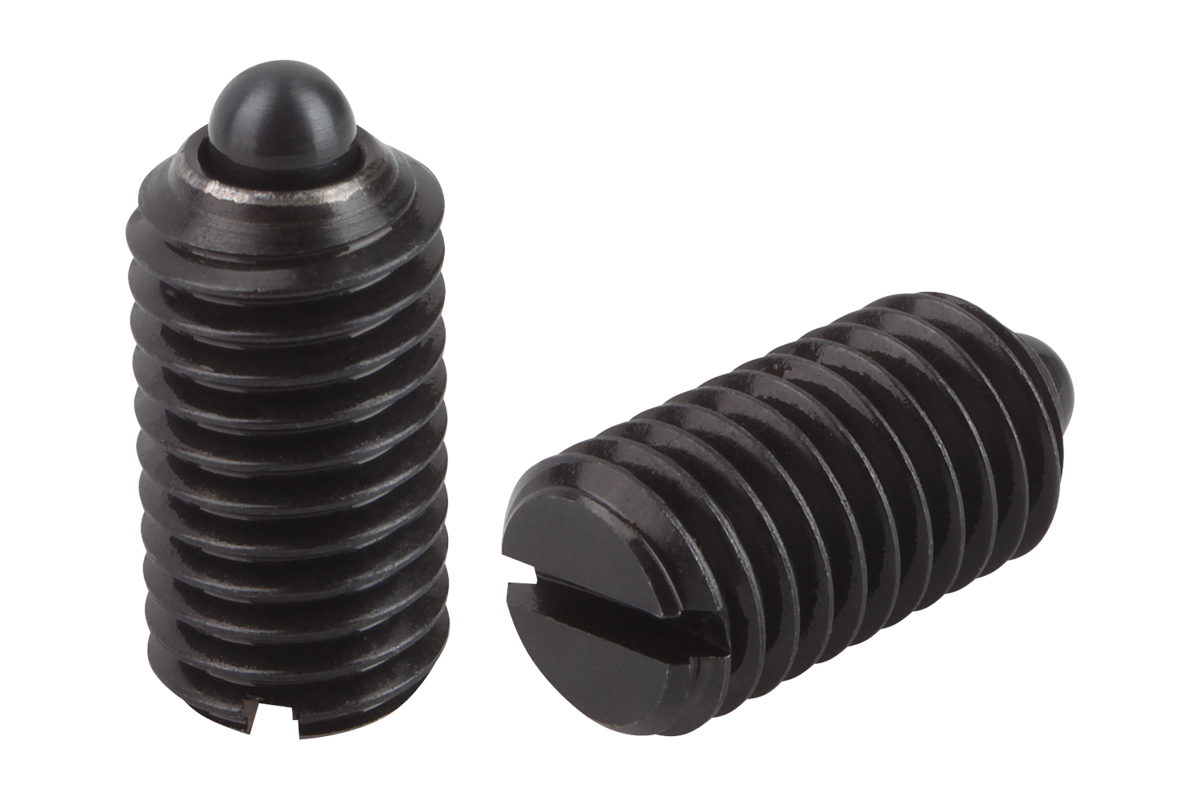

Spring Plungers pin style, slotted, steel, standard end pressure, inch

K0313 Inch

Spring Plungers pin style, slotted, steel, standard end...

Products
- Spring Plungers
  - Pin Plungers
    - Spring Plungers pin style, slotted, steel
      - Spring Plungers pin style, slotted, steel, standard end pressure, inch

Item description/product images

DescriptionMaterial:Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.Version:Black oxidised.
Thrust pin hardened.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.Special features:

RoHS

Drawings

Spring Plungers pin style, slotted, steel, standard end pressure, inch

Item selection/filter

Order No.	D	D1	H	L	N	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
K0313.AG	8-36	1,8	1.5	9	0,6	6	20			2.48 $ (USD)
K0313.AE	8-32	1,8	1.5	9	0,6	6	20			2.48 $ (USD)
K0313.A1	10-32	2,4	2	12	0,8	6	20			2.44 $ (USD)
K0313.AJ	1/4-28	2,7	2	14	1	7	20			2.44 $ (USD)
K0313.A2	1/4-20	2,7	2	14	1	7	20			2.71 $ (USD)
K0313.A3	5/16-18	4	2	16	1,2	15	30			3.28 $ (USD)
K0313.A4	3/8-16	4.5	2.5	19	1,6	20	35			3.12 $ (USD)
K0313.A5	1/2-13	6	3,5	22	2	30	55			5.27 $ (USD)
K0313.A6	5/8-11	8.5	4.5	24	2,5	45	100			7.00 $ (USD)
