Product groups

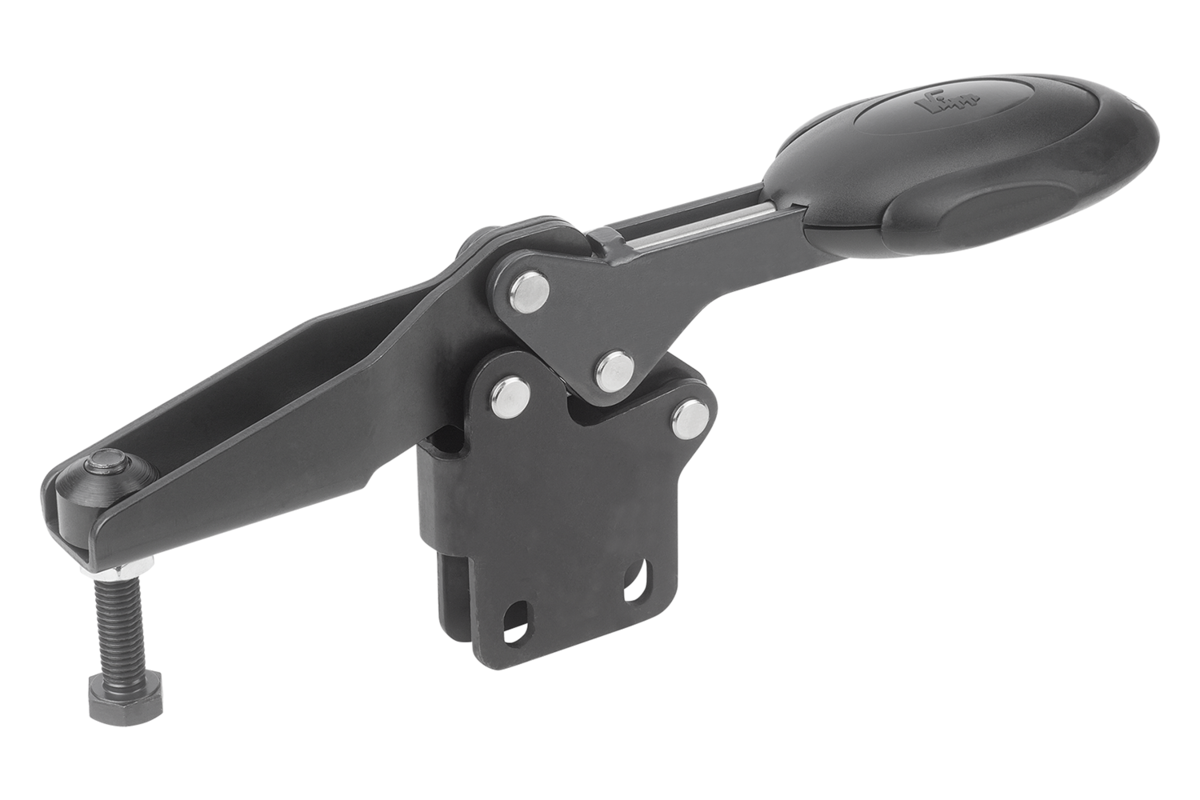

Horizontal Toggle Clamps with Safety Interlock with straight foot and adjustable clamping spindle, stainless steel
K0661

Horizontal Toggle Clamps with Safety Interlock with straight...

go back

Item description/product images

DescriptionMaterial:Stainless steel.
Grip polyamide.
Unlocking bracket TPE.
Version:Bright.
Grip blue, black or red.
Note:Maintenance-free high quality link bushings. Sustainable constant force during opening and closing. Optimum stability through the conical, U-profile clamping arm. Including internal bar lock with automatic safety catch.On request:Other grip colours.Accessory:K0106
K0384
K0390
K0392
K0667
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Th_013_KIPPLock_enUS 213 kB

Drawings

Horizontal Toggle Clamps with Safety Interlock with straight foot and adjustable clamping spindle, stainless steel

Item selection/filter

Order No.Component
colour
hole
arrangement
Opening angle
of holding arm
Opening
angle of
handle
Hand
force
FH N
Retaining
force
F1 N
Retaining
force
F2 N
Clamping
force
F3 N
Clamping
force
F4 N
CADAcc.PriceOrder
K0661.106101ultramarine RAL 5002386°67°160135019007201200  on request
K0661.108101ultramarine RAL 5002386°67°200200028008301400  on request
K0661.106100black grey RAL 7021386°67°160135019007201200 on request
K0661.108100black grey RAL 7021386°67°200200028008301400 on request
K0661.106103red386°67°160135019007201200 on request
K0661.108103red386°67°200200028008301400 on request
Order No.Component
colour
MA

A1A2A4BB1B2B3B6CC2DHH1LL1CADAcc.PriceOrder
K0661.106101ultramarine RAL 5002M6x3526396,52,514,19,117,512,553,436,985,575,271193,360,5  on request
K0661.108101ultramarine RAL 5002M8x45264493,514,19,1211651,146,510,56,288,284,3230,474,9  on request
K0661.106100black grey RAL 7021M6x3526396,52,514,19,117,512,553,436,985,575,271193,360,5 on request
K0661.108100black grey RAL 7021M8x45264493,514,19,1211651,146,510,56,288,284,3230,474,9 on request
K0661.106103redM6x3526396,52,514,19,117,512,553,436,985,575,271193,360,5 on request
K0661.108103redM8x45264493,514,19,1211651,146,510,56,288,284,3230,474,9 on request
