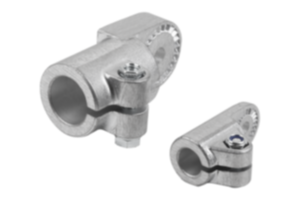

K0484Tube clamps, swivel half, aluminium, with sunken teeth |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Cast aluminium.
Screws and nuts steel.Version:Vibratory ground.
Screws and nuts electro zinc-plated.Note:Swivel half clamps with sunken teeth can be combined with swivel half clamps with raised teeth (K0485) to make a complete swivel clamp.
Max. torque when tightening the lockscrew:
M6: 10 Nm.
M8: 25 Nm.
M10: 50 Nm.On request:Clamping levers for tightening.Accessory:- Hex nut DIN 985
- Hex head bolt DIN 933
- Cap screw DIN 6912Drawing reference: |
| Order No. | A
| C | D | E | G | H | K | L | M | P | S | F
kN | Mb (Nm) | Mv (Nm) | CAD | Acc. | Price | Order |
|---|
| K0484.512 | 12,1 | 10,5 | 7,5 | 26 | 29,4 | 25 | 30 | 57 | 44 | 21 | M6 | 3,6 | 28 | 9 |  | | 26.98 $ (USD) | | | K0484.514 | 14,1 | 10,5 | 7,5 | 26 | 29,4 | 25 | 30 | 57 | 44 | 21 | M6 | 3,6 | 28 | 9 | | | 26.98 $ (USD) | | | K0484.516 | 16,1 | 10,5 | 7,5 | 26 | 29,4 | 25 | 30 | 57 | 44 | 21 | M6 | 3,6 | 28 | 9 | | | 26.98 $ (USD) | | | K0484.518 | 18,1 | 10,5 | 7,5 | 26 | 29,4 | 25 | 30 | 57 | 44 | 21 | M6 | 3,6 | 28 | 9 | | | 26.98 $ (USD) | | | K0484.520 | 20 | 16 | 9 | 40 | 40 | 45 | 50 | 93 | 73 | 33 | M8 | 4,9 | 91 | 94 | | | 28.55 $ (USD) | | | K0484.525 | 25,1 | 16 | 9 | 40 | 40 | 45 | 50 | 93 | 73 | 33 | M8 | 4,9 | 91 | 94 | | | 28.55 $ (USD) | | | K0484.530 | 30,1 | 16 | 9 | 40 | 40 | 45 | 50 | 93 | 73 | 33 | M8 | 4,9 | 91 | 94 | | | 28.55 $ (USD) | | | K0484.540 | 40,2 | 22 | 11 | 56 | 56 | 60 | 68 | 128 | 100 | 48 | M10 | 6 | 267 | 181 | | | 47.68 $ (USD) | |
