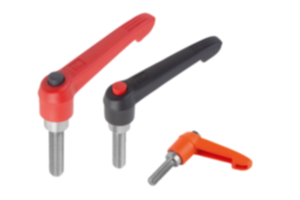

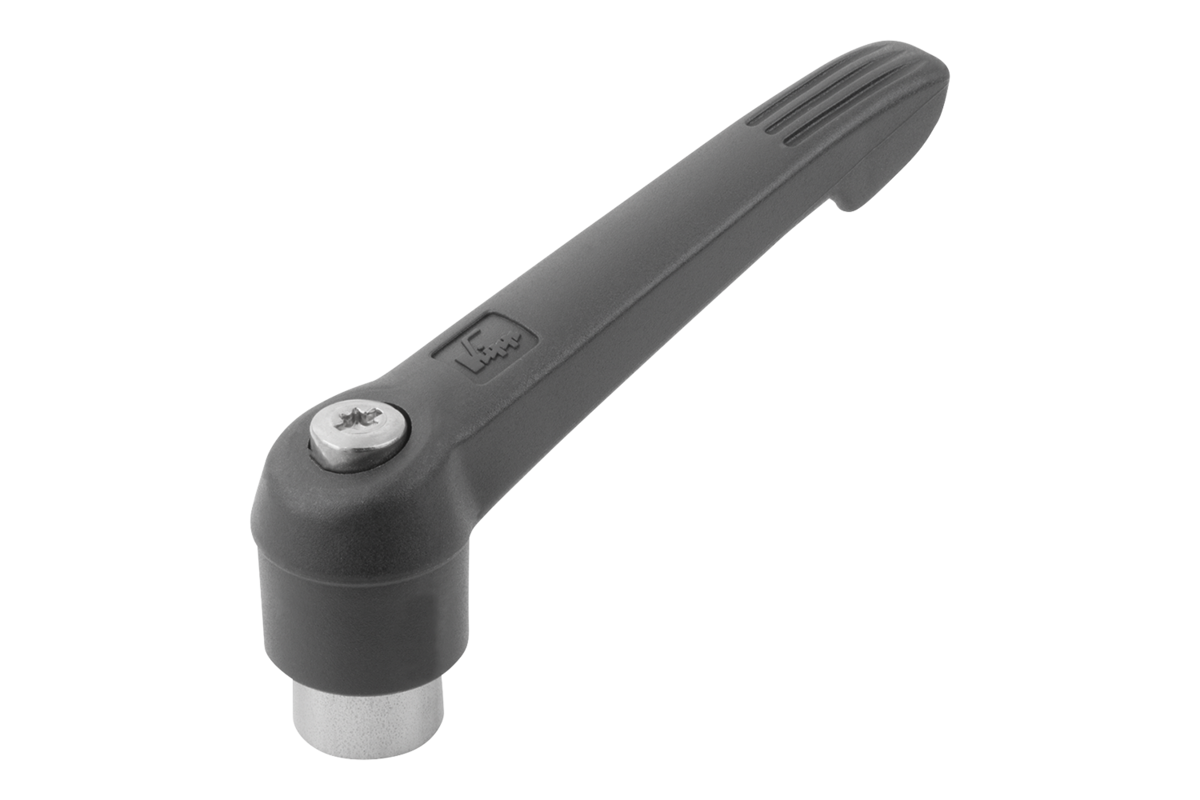

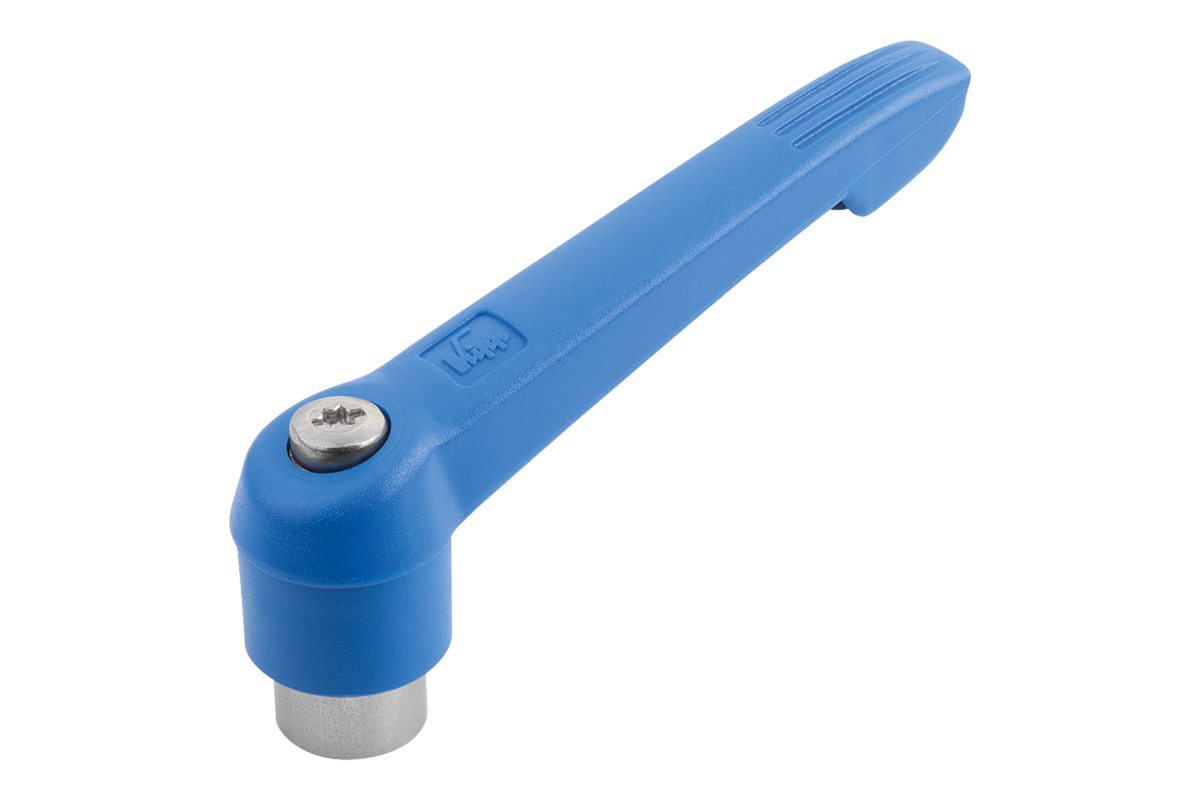

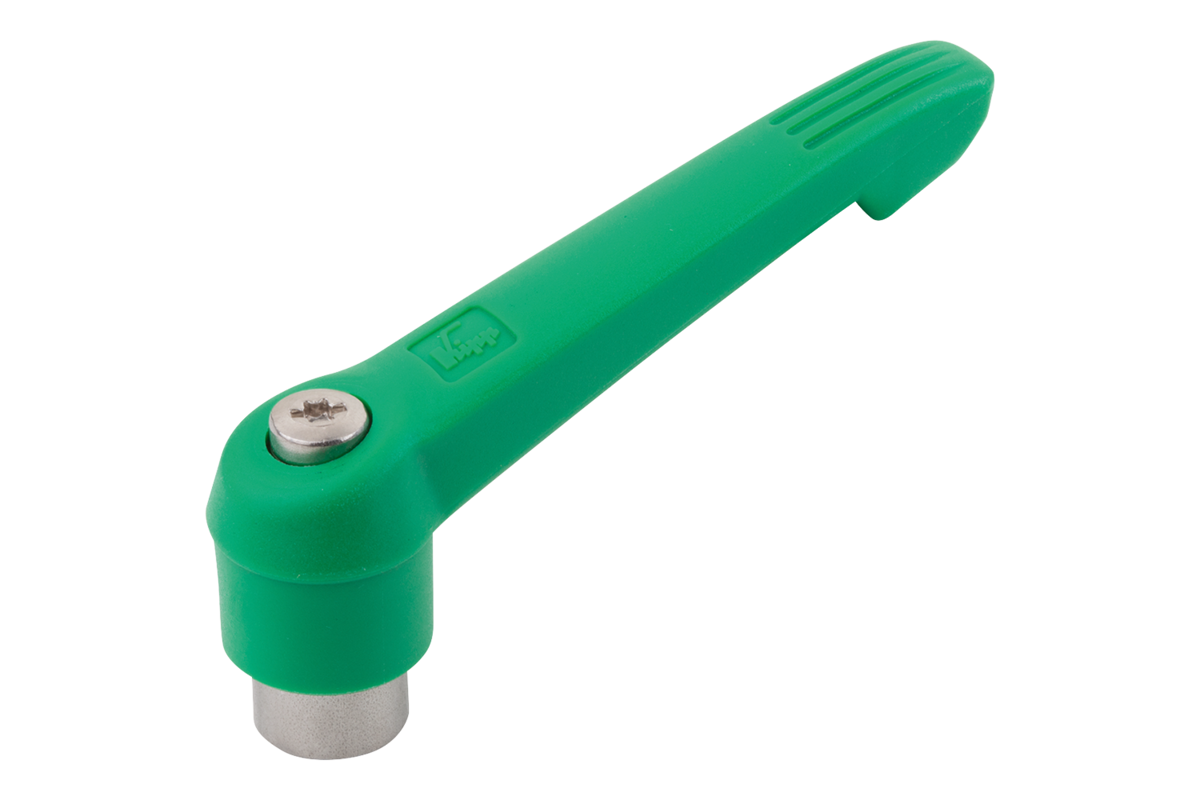

K0270 inchAdjustable Handles with push button, external thread, metal... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle fiberglass reinforced plastic, toothed ring die-cast zinc.
Steel parts stainless steel 1.4305 (AISI 303 equivalent).
Push button plastic (POM).Version:Stainless steel parts bright.Note:∆ Enter the desired handle color here.
The standard colors are:
Black gray handle, traffic red push button.

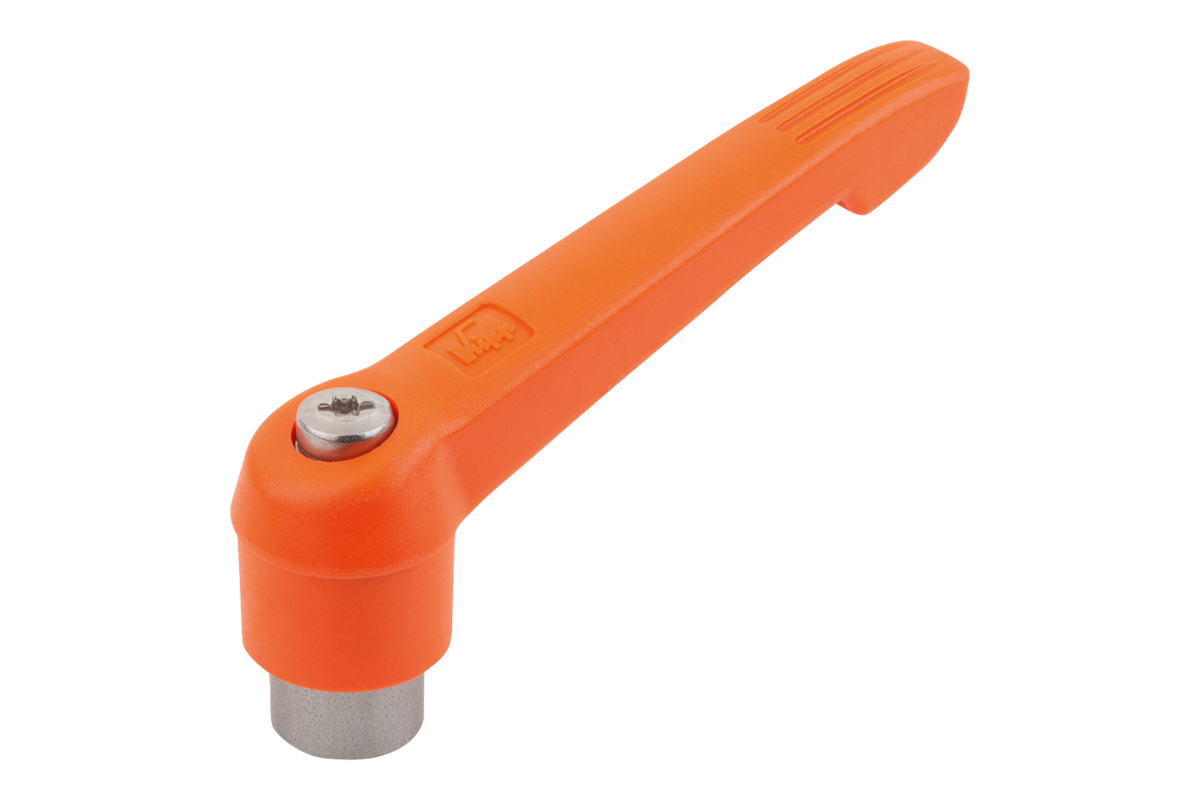

Orange handle, black gray push button.

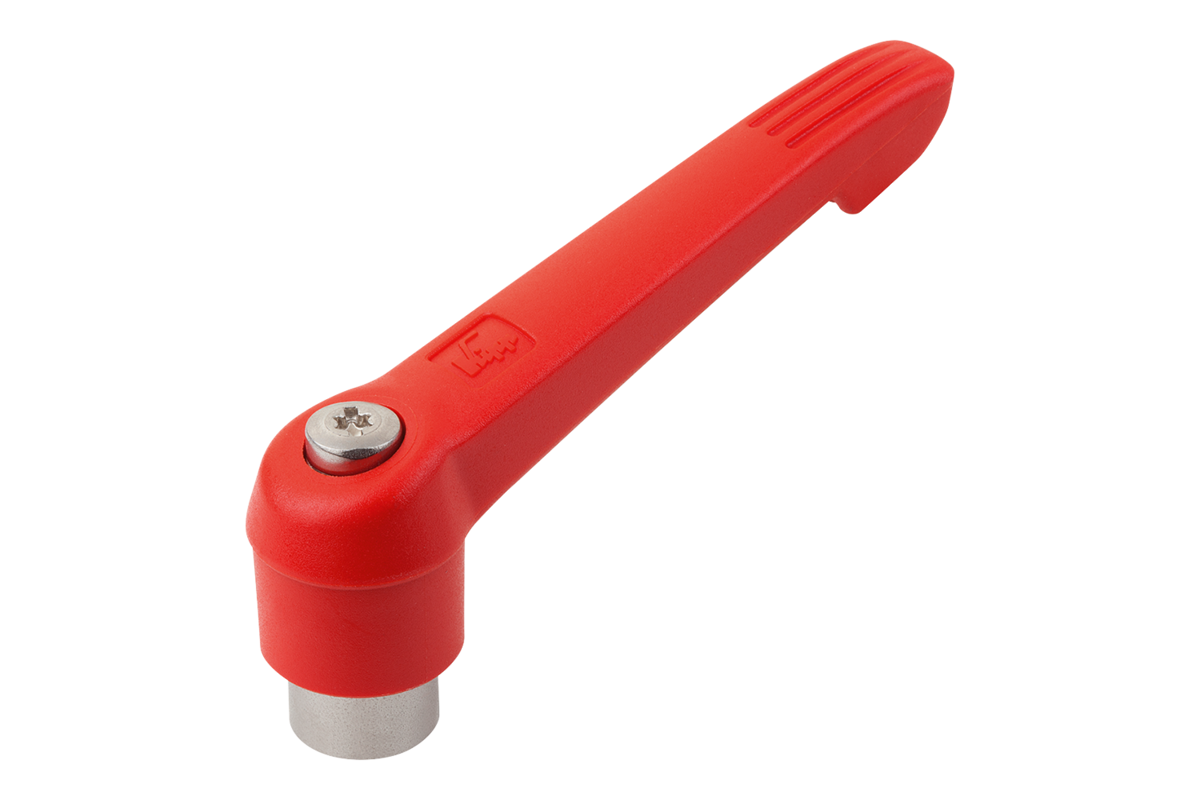

Traffic red handle, black gray push button.
For the inch series, dimension X is in inches, all other dimensions are in mm.
Where L ≥ 60 mm the thread length is 60 mm.
On request:Other threads, screw lengths and special versions.
Dimension “H1” available in other lengths at an additional charge.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Item No. | Main
color | Size | X | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| L | CAD | Acc. | Price | Order |
|---|
| K0270.711A0X15 | black gray RAL 7021 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 |  | | on request | | | K0270.711A0X20 | black gray RAL 7021 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.711A0X25 | black gray RAL 7021 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.711A1X15 | black gray RAL 7021 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 | | | on request | | | K0270.711A1X20 | black gray RAL 7021 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.711A1X25 | black gray RAL 7021 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.711A2X10 | black gray RAL 7021 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 10 | | | on request | | | K0270.711A2X15 | black gray RAL 7021 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 | | | on request | | | K0270.711A2X20 | black gray RAL 7021 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.711A2X25 | black gray RAL 7021 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.711A2X30 | black gray RAL 7021 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 30 | | | on request | | | K0270.711A2X40 | black gray RAL 7021 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 40 | | | on request | | | K0270.711A2X50 | black gray RAL 7021 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 50 | | | on request | | | K0270.712A2X15 | black gray RAL 7021 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 15 | | | on request | | | K0270.712A2X20 | black gray RAL 7021 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.712A2X25 | black gray RAL 7021 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.712A2X30 | black gray RAL 7021 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.712A2X40 | black gray RAL 7021 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.712A2X50 | black gray RAL 7021 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.712A2X60 | black gray RAL 7021 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.712A3X15 | black gray RAL 7021 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 15 | | | on request | | | K0270.712A3X20 | black gray RAL 7021 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.712A3X25 | black gray RAL 7021 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.712A3X30 | black gray RAL 7021 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.712A3X40 | black gray RAL 7021 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.712A3X50 | black gray RAL 7021 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.712A3X60 | black gray RAL 7021 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.712A4X20 | black gray RAL 7021 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.712A4X25 | black gray RAL 7021 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.712A4X30 | black gray RAL 7021 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.712A4X40 | black gray RAL 7021 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.712A4X50 | black gray RAL 7021 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.712A4X60 | black gray RAL 7021 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.713A3X20 | black gray RAL 7021 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 20 | | | on request | | | K0270.713A3X25 | black gray RAL 7021 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 25 | | | on request | | | K0270.713A3X30 | black gray RAL 7021 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 30 | | | on request | | | K0270.713A3X40 | black gray RAL 7021 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 40 | | | on request | | | K0270.713A3X50 | black gray RAL 7021 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 50 | | | on request | | | K0270.713A3X60 | black gray RAL 7021 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 60 | | | on request | | | K0270.713A4X20 | black gray RAL 7021 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 20 | | | on request | | | K0270.713A4X25 | black gray RAL 7021 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 25 | | | on request | | | K0270.713A4X30 | black gray RAL 7021 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 30 | | | on request | | | K0270.713A4X40 | black gray RAL 7021 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 40 | | | on request | | | K0270.713A4X50 | black gray RAL 7021 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 50 | | | on request | | | K0270.713A4X60 | black gray RAL 7021 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 60 | | | on request | | | K0270.714A5X25 | black gray RAL 7021 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 25 | | | on request | | | K0270.714A5X30 | black gray RAL 7021 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 30 | | | on request | | | K0270.714A5X40 | black gray RAL 7021 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 40 | | | on request | | | K0270.714A5X50 | black gray RAL 7021 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 50 | | | on request | | | K0270.714A5X60 | black gray RAL 7021 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 60 | | | on request | | | K0270.715A6X30 | black gray RAL 7021 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 30 | | | on request | | | K0270.715A6X40 | black gray RAL 7021 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 40 | | | on request | | | K0270.715A6X50 | black gray RAL 7021 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 50 | | | on request | | | K0270.715A6X60 | black gray RAL 7021 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 60 | | | on request | | | K0270.721A0X15 | orange RAL 2004 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 | | | on request | | | K0270.721A0X20 | orange RAL 2004 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.721A0X25 | orange RAL 2004 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.721A1X15 | orange RAL 2004 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 | | | on request | | | K0270.721A1X20 | orange RAL 2004 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.721A1X25 | orange RAL 2004 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.721A2X10 | orange RAL 2004 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 10 | | | on request | | | K0270.721A2X15 | orange RAL 2004 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 | | | on request | | | K0270.721A2X20 | orange RAL 2004 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.721A2X25 | orange RAL 2004 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.721A2X30 | orange RAL 2004 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 30 | | | on request | | | K0270.721A2X40 | orange RAL 2004 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 40 | | | on request | | | K0270.721A2X50 | orange RAL 2004 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 50 | | | on request | | | K0270.722A2X15 | orange RAL 2004 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 15 | | | on request | | | K0270.722A2X20 | orange RAL 2004 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.722A2X25 | orange RAL 2004 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.722A2X30 | orange RAL 2004 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.722A2X40 | orange RAL 2004 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.722A2X50 | orange RAL 2004 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.722A2X60 | orange RAL 2004 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.722A3X15 | orange RAL 2004 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 15 | | | on request | | | K0270.722A3X20 | orange RAL 2004 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.722A3X25 | orange RAL 2004 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.722A3X30 | orange RAL 2004 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.722A3X40 | orange RAL 2004 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.722A3X50 | orange RAL 2004 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.722A3X60 | orange RAL 2004 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.722A4X20 | orange RAL 2004 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.722A4X25 | orange RAL 2004 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.722A4X30 | orange RAL 2004 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.722A4X40 | orange RAL 2004 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.722A4X50 | orange RAL 2004 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.722A4X60 | orange RAL 2004 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.723A3X20 | orange RAL 2004 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 20 | | | on request | | | K0270.723A3X25 | orange RAL 2004 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 25 | | | on request | | | K0270.723A3X30 | orange RAL 2004 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 30 | | | on request | | | K0270.723A3X40 | orange RAL 2004 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 40 | | | on request | | | K0270.723A3X50 | orange RAL 2004 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 50 | | | on request | | | K0270.723A3X60 | orange RAL 2004 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 60 | | | on request | | | K0270.723A4X20 | orange RAL 2004 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 20 | | | on request | | | K0270.723A4X25 | orange RAL 2004 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 25 | | | on request | | | K0270.723A4X30 | orange RAL 2004 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 30 | | | on request | | | K0270.723A4X40 | orange RAL 2004 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 40 | | | on request | | | K0270.723A4X50 | orange RAL 2004 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 50 | | | on request | | | K0270.723A4X60 | orange RAL 2004 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 60 | | | on request | | | K0270.724A5X25 | orange RAL 2004 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 25 | | | on request | | | K0270.724A5X30 | orange RAL 2004 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 30 | | | on request | | | K0270.724A5X40 | orange RAL 2004 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 40 | | | on request | | | K0270.724A5X50 | orange RAL 2004 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 50 | | | on request | | | K0270.724A5X60 | orange RAL 2004 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 60 | | | on request | | | K0270.725A6X30 | orange RAL 2004 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 30 | | | on request | | | K0270.725A6X40 | orange RAL 2004 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 40 | | | on request | | | K0270.725A6X50 | orange RAL 2004 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 50 | | | on request | | | K0270.725A6X60 | orange RAL 2004 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 60 | | | on request | | | K0270.731A0X15 | red RAL 3020 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 | | | on request | | | K0270.731A0X20 | red RAL 3020 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.731A0X25 | red RAL 3020 | 1 | 10-24 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.731A1X15 | red RAL 3020 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 | | | on request | | | K0270.731A1X20 | red RAL 3020 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.731A1X25 | red RAL 3020 | 1 | 10-32 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.731A2X10 | red RAL 3020 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 10 | | | on request | | | K0270.731A2X15 | red RAL 3020 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 15 | | | on request | | | K0270.731A2X20 | red RAL 3020 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | | | on request | | | K0270.731A2X25 | red RAL 3020 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 25 | | | on request | | | K0270.731A2X30 | red RAL 3020 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 30 | | | on request | | | K0270.731A2X40 | red RAL 3020 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 40 | | | on request | | | K0270.731A2X50 | red RAL 3020 | 1 | 1/4-20 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 50 | | | on request | | | K0270.732A2X15 | red RAL 3020 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 15 | | | on request | | | K0270.732A2X20 | red RAL 3020 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.732A2X25 | red RAL 3020 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.732A2X30 | red RAL 3020 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.732A2X40 | red RAL 3020 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.732A2X50 | red RAL 3020 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.732A2X60 | red RAL 3020 | 2 | 1/4-20 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.732A3X15 | red RAL 3020 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 15 | | | on request | | | K0270.732A3X20 | red RAL 3020 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.732A3X25 | red RAL 3020 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.732A3X30 | red RAL 3020 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.732A3X40 | red RAL 3020 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.732A3X50 | red RAL 3020 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.732A3X60 | red RAL 3020 | 2 | 5/16-18 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.732A4X20 | red RAL 3020 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | | | on request | | | K0270.732A4X25 | red RAL 3020 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 25 | | | on request | | | K0270.732A4X30 | red RAL 3020 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | | | on request | | | K0270.732A4X40 | red RAL 3020 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | | | on request | | | K0270.732A4X50 | red RAL 3020 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | | | on request | | | K0270.732A4X60 | red RAL 3020 | 2 | 3/8-16 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | | | on request | | | K0270.733A3X20 | red RAL 3020 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 20 | | | on request | | | K0270.733A3X25 | red RAL 3020 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 25 | | | on request | | | K0270.733A3X30 | red RAL 3020 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 30 | | | on request | | | K0270.733A3X40 | red RAL 3020 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 40 | | | on request | | | K0270.733A3X50 | red RAL 3020 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 50 | | | on request | | | K0270.733A3X60 | red RAL 3020 | 3 | 5/16-18 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 60 | | | on request | | | K0270.733A4X20 | red RAL 3020 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 20 | | | on request | | | K0270.733A4X25 | red RAL 3020 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 25 | | | on request | | | K0270.733A4X30 | red RAL 3020 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 30 | | | on request | | | K0270.733A4X40 | red RAL 3020 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 40 | | | on request | | | K0270.733A4X50 | red RAL 3020 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 50 | | | on request | | | K0270.733A4X60 | red RAL 3020 | 3 | 3/8-16 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | 60 | | | on request | | | K0270.734A5X25 | red RAL 3020 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 25 | | | on request | | | K0270.734A5X30 | red RAL 3020 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 30 | | | on request | | | K0270.734A5X40 | red RAL 3020 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 40 | | | on request | | | K0270.734A5X50 | red RAL 3020 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 50 | | | on request | | | K0270.734A5X60 | red RAL 3020 | 4 | 1/2-13 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | 60 | | | on request | | | K0270.735A6X30 | red RAL 3020 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 30 | | | on request | | | K0270.735A6X40 | red RAL 3020 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 40 | | | on request | | | K0270.735A6X50 | red RAL 3020 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 50 | | | on request | | | K0270.735A6X60 | red RAL 3020 | 5 | 5/8-11 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | 60 | | | on request | |
