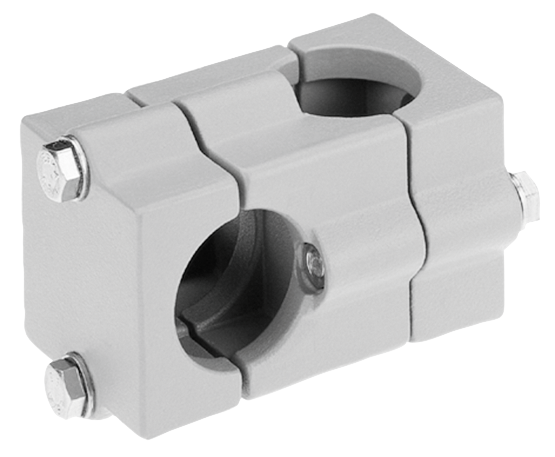

Tube clamps cross aluminum - inch

K0472 inch

Tube clamps cross aluminum - inch

Products
- Tube Connectors
  - Tube clamps, cross, aluminum
    - Tube clamps cross aluminum - inch

Item description/product images

DescriptionMaterial:Cast aluminum.
Screws and nuts steel.Version:Vibratory ground.
Screws and nuts electro zinc-plated.Note:The dimensions for A and B are in inches, all other dimensions are in mm.On request:Adjustable handles for tightening.Accessory:- Round and square tubes K0493Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0472 inch Tube clamps cross aluminum - inch

Drawings

Tube clamps cross aluminum - inch

Item selection/filter

Item No.	A	B	C	D	E	G	H	K	L	M	R	S	CAD	Acc.	Price	Order
K0472.52D2D2	1.5	1.5	50	60	60	61	75	75	111	61	57	M8x60			57.14 $ (USD)
