Tube clamps flange aluminum, inch
K0479 Inch

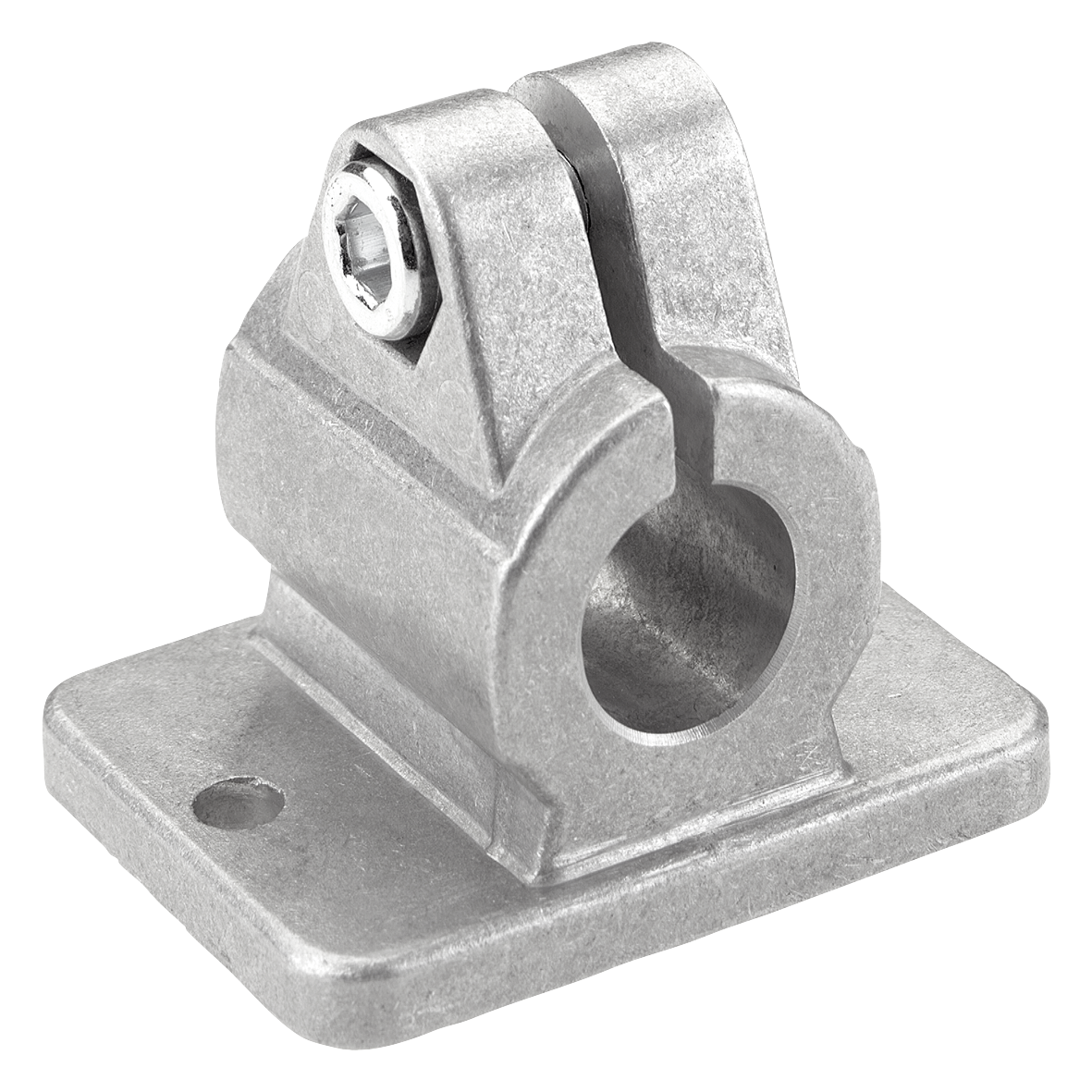

Tube clamps flange aluminum, inch

go back

Item description/product images

DescriptionMaterial:Cast aluminum.
DIN 7984 screws and DIN 985 nuts, steel.
Version:Vibratory ground.
Screws and nuts electro zinc-plated.
Note:The dimensions for A are in inches, all other dimensions are in mm.On request:Adjustable handles for tightening.
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0479 Inch Tube clamps flange aluminum, inch 761 kB

Drawings

Tube clamps flange aluminum, inch

Item selection/filter

Item No.hole
arrangement
A

BCDEFGHKLMNOPRSUCADAcc.PriceOrder
K0479.5CP10.5618253531353832,541505-23-M6x2040 on request
K0479.5CR10.75618253531353832,541505-23-M6x2040 on request
K0479.5CS1173040405055535363787-33-M8x2560 on request
K0479.5CT11.2573040405055535363787-33-M8x2560 on request
K0479.5D231.59425660708080748710510604052M10x3082 on request
K0479.5D43211506665839098859812814624560M10x35100 on request
