Mounting brackets, Style A

go back

Products
- Indexing Plungers
  - Indexing Plungers
    - Mounting Brackets
      - Mounting brackets, Style A

Item description/product images

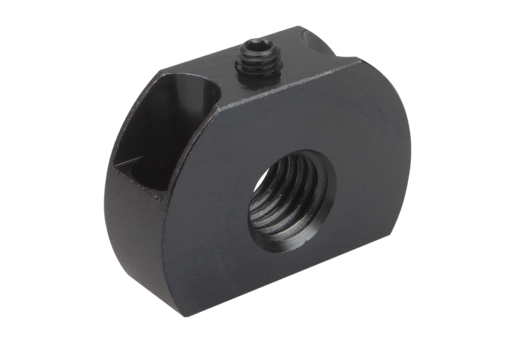

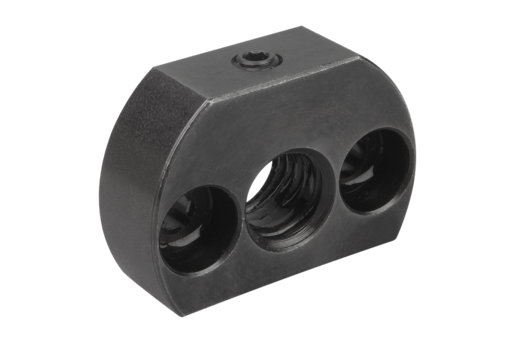

DescriptionMaterial:Steel.Version:Black oxidized.Note:These mounting brackets are assembly aids for cam-action indexing plungers and extend their application field. They can also be used with other indexing plungers or other elements that have a suitable thread. Fastened using cap screws.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0638_A Mounting brackets, Style A

247 kB

Drawings

Item selection/filter

Item No.	style	D1	D2	D3	D4	K	L1	L3	S	Price
K0638.112	A	M12	36	5,5	10	24	25	10	12	13.48 $ (USD)
K0638.1121	A	M12x1,5	36	5,5	10	24	25	10	12	13.48 $ (USD)
K0638.116	A	M16	46	5,5	10	32	33	13	15	14.61 $ (USD)
K0638.1161	A	M16x1,5	46	5,5	10	32	33	13	15	14.61 $ (USD)
K0638.120	A	M20	46	5,5	10	32	33	13	15	18.09 $ (USD)
K0638.1201	A	M20x1,5	46	5,5	10	32	33	13	15	14.61 $ (USD)
