Product groups
Indexing Plungers for thin-walled parts Style A
K0735_A

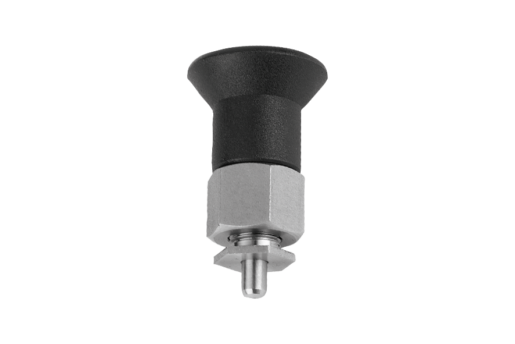

Indexing Plungers for thin-walled parts Style A

go back

Item description/product images

DescriptionMaterial:Steel version
Indexing pin hardened:
quality class 5.8

Stainless steel version
Indexing pin not hardened:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black-gray thermoplastic.
Version:Steel version:
Indexing pin hardened, ground, black oxidized.

Stainless steel version:
Indexing pin not hardened, ground, bright.
Note:These indexing plungers have been specially designed for assembly in thin-walled parts.
Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new locking position can be set only after the pin has been manually disengaged.
style C is recommended for applications where the locking pin should remain disengaged for an extended period and be prevented from springing back.
Accessory:A double-ended ring spanner can be supplied as an accessory to tighten the nut.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0735_A Indexing Plungers for thin-walled parts Style A 145 kB

Drawings

Indexing Plungers for thin-walled parts Style A

Item selection/filter

Order No.styleMain
material
Surface finish
body
DD1D2D3LL1L2Travel
S
SW1SW2Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Article number
double-ended
ring spanner
CADAcc.PriceOrder
K0735.31105Asteelhardened5M10x1281046,511,5135-917141,3615K0631.91416  12.26 $ (USD)
K0735.31206Asteelhardened6M10x1281047,512,5136-1017141,8719K0631.91416  13.46 $ (USD)
K0735.311105Astainless steelnot hardened5M10x1281046,511,5135-917141,3615K0631.91416  18.96 $ (USD)
K0735.311206Astainless steelnot hardened6M10x1281047,512,5136-1017141,8719K0631.91416  21.22 $ (USD)
