Indexing Plungers for thin-walled parts Style C
K0735_C

Indexing Plungers for thin-walled parts Style C

go back

Item description/product images

DescriptionMaterial:Steel version
Indexing pin hardened:
quality class 5.8

Stainless steel version
Indexing pin not hardened:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black-gray thermoplastic.
Version:Steel version:
Indexing pin hardened, ground and black oxide finish.

Stainless steel version:
Indexing pin not hardened, ground, bright.

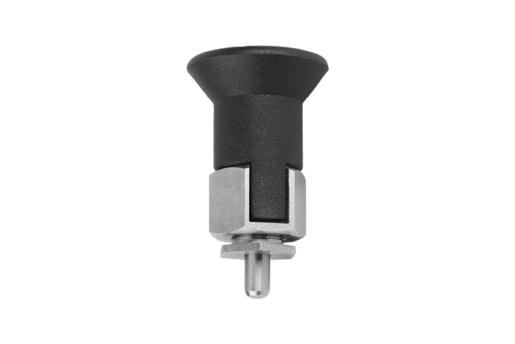

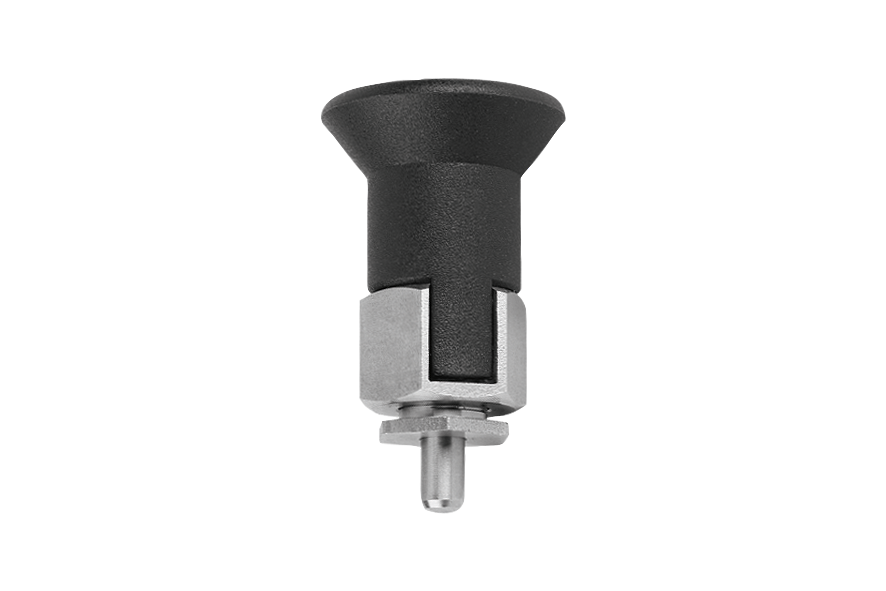

Note:These Indexing Plungers have been specially designed for assembly in thin-walled parts.
Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new locking position can be set only after the pin has been manually disengaged.
Style C is recommended for applications where the locking pin should remain disengaged for an extended period and be prevented from springing back.
Accessory:A double-ended ring spanner can be supplied as an accessory to tighten the nut.
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0735_C Indexing Plungers for thin-walled parts Style C 143 kB

Drawings

Indexing Plungers for thin-walled parts Style C

Item selection/filter

Item No.StyleMain
material
TypeDD1D2D3HLL1L2SW1SW2Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Article number
double-ended
ring spanner
CADAcc.PriceOrder
K0735.33105Csteelfor thin wall parts5M10x128105-946,511,51317141,3615K0631.91416  on request
K0735.33206Csteelfor thin wall parts6M10x128106-1047,512,51317141,8719K0631.91416  on request
K0735.313105Cstainless steelfor thin wall parts5M10x128105-946,511,51317141,3615K0631.91416  on request
K0735.313206Cstainless steelfor thin wall parts6M10x128106-1047,512,51317141,8719K0631.91416  on request
