Adjustable Handles with thrust pin external thread
K0780

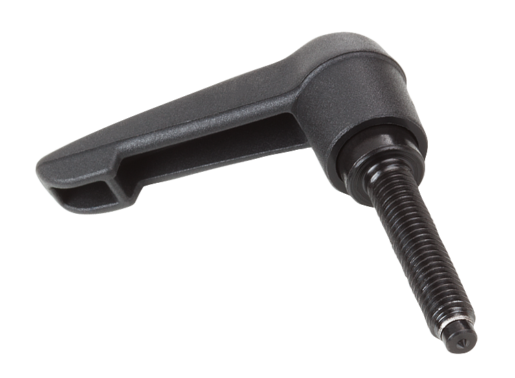

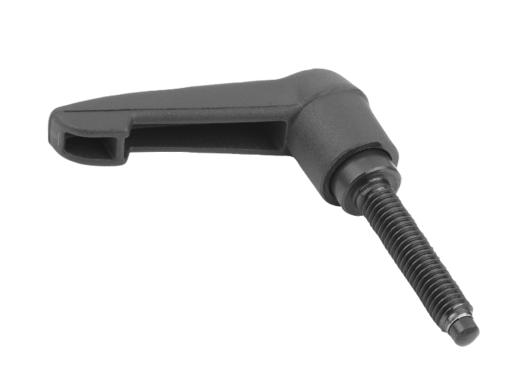

Adjustable Handles with thrust pin external thread

go back

Item description/product images

DescriptionMaterial:Handle fiberglass reinforced plastic with die-cast zinc tooth rings.
Steel parts quality class 5.8.
Thrust pin, brass.
Version:Steel parts black oxide finish.Order information:Threaded studs with dimension L=70 mm or greater are partially threaded, 60 mm.Note:These components are used to prevent marring the workpiece surface.On request:Other threads, screw lengths, clamp lever colors and thrust pin types as well as special versions.
Dimension “H1” available in other lengths at an additional charge.
Drawing reference:
1) Thrust pin
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0780 Adjustable Handles with thrust pin external thread 312 kB

Drawings

Adjustable Handles with thrust pin external thread

Item selection/filter

Item No.

SizeXDD1D2D3HH1H2H3H4AA1BNo. of
teeth
LCADAcc.PriceOrder
K0780.11051X201M5101314,5324,54153033,540477,51620 on request
K0780.11051X301M5101314,5324,54153033,540477,51630 on request
K0780.11051X401M5101314,5324,54153033,540477,51640 on request
K0780.11051X501M5101314,5324,54153033,540477,51650 on request
K0780.11061X201M6101314,5424,54153033,540477,51620 on request
K0780.11061X301M6101314,5424,54153033,540477,51630 on request
K0780.11061X401M6101314,5424,54153033,540477,51640 on request
K0780.11061X501M6101314,5424,54153033,540477,51650 on request
K0780.12061X202M613,51819,5428,56,517,541,545,565759,52020 on request
K0780.12061X302M613,51819,5428,56,517,541,545,565759,52030 on request
K0780.12061X402M613,51819,5428,56,517,541,545,565759,52040 on request
K0780.12061X502M613,51819,5428,56,517,541,545,565759,52050 on request
K0780.12061X602M613,51819,5428,56,517,541,545,565759,52060 on request
K0780.12081X202M813,51819,55,528,56,517,541,545,565759,52020 on request
K0780.12081X302M813,51819,55,528,56,517,541,545,565759,52030 on request
K0780.12081X402M813,51819,55,528,56,517,541,545,565759,52040 on request
K0780.12081X502M813,51819,55,528,56,517,541,545,565759,52050 on request
K0780.12081X602M813,51819,55,528,56,517,541,545,565759,52060 on request
K0780.12101X202M1013,51819,5728,56,517,541,545,565759,52020 on request
K0780.12101X302M1013,51819,5728,56,517,541,545,565759,52030 on request
K0780.12101X402M1013,51819,5728,56,517,541,545,565759,52040 on request
K0780.12101X502M1013,51819,5728,56,517,541,545,565759,52050 on request
K0780.12101X602M1013,51819,5728,56,517,541,545,565759,52060 on request
