K0788 IG inch

Cam Levers with internal thread, steel; inch

News
- NEW Product Innovations
  - Cam Levers internal and external thread, steel
    - Cam Levers with internal thread, steel; inch

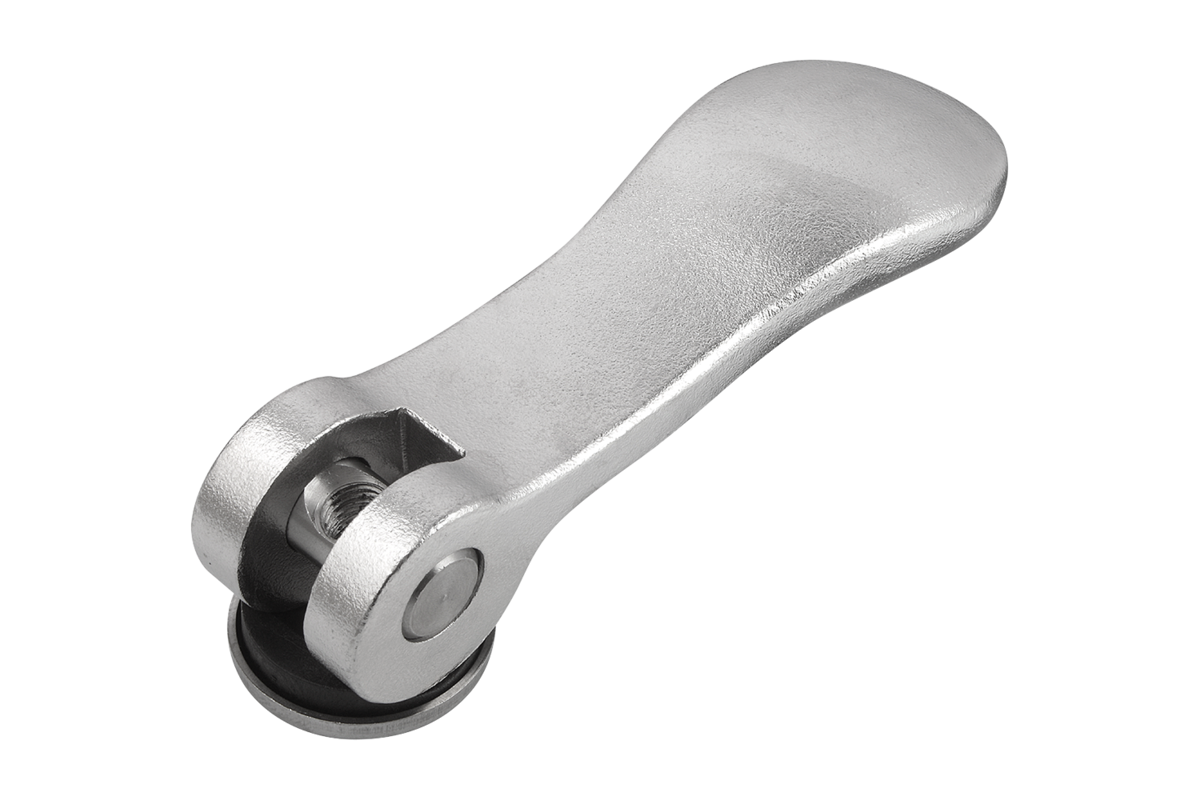

Item description/product images

DescriptionMaterial:Handle steel 1.0401.
Thrust washer plastic PA 66 GF 35-X fiberglass reinforced.
Hinge pin stainless steel 1.4305 (AISI 303 equivalent).
Stud and washer steel, quality class 5.8.Version:Handle, stud and washer trivalent blue passivated.
Thrust washer black.
Hinge pin bright.Note:Plastics are subject to creeping when compressed (retardation).
For the inch series, dimension D is in inches, all other dimensions are in mm.

DownloadHere is all the information as a PDF datasheet:

Datasheet K0788 IG inch Cam Levers with internal thread, steel; inch

234 kB

Drawings

Item selection/filter

Item No.	Size	D	D1	D2	B	B1	H	H1	A	A1	Stroke S	Clamping force F (kN)	Hand force FH N	Price
K0788.15022A1	1	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	on request
K0788.15022A2	1	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120	on request
K0788.25022A3	2	5/16-18	27,1	11	33,3	24	18	28,5	96	108	1,5	8	350	on request
