Centering clamp, steel, round

go back

News
- NEW Product Innovations
  - Centering clamp, steel, round

Item description/product images

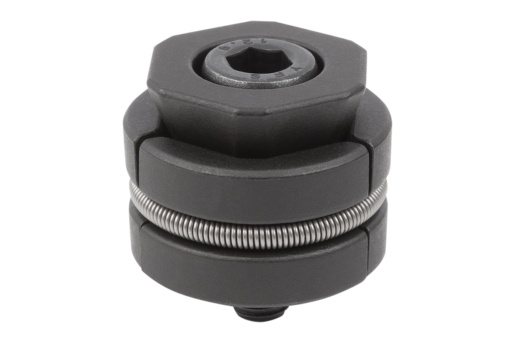

DescriptionMaterial:Centering clamp Q&T steel.
Spring stainless steelVersion:Centering clamp hardened (47-53 HRC) and black oxidized.
Spring bright.Note:Centering clamps enable a workpiece to be centered and clamped over a bore.

During the clamping process, the clamping force acts selectively on the bore wall.Drawing reference:

Dimension H1 refers to the height at D min.

1) Cap screw

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1965 Centering clamp, steel, round

465 kB

Drawings

Overview of items (compressed)

Item selection/filter

Item No.	D min.	D max.	D1	L max.	H	H1	H2	R	Tightening torque max. Nm	Clamping force kN	Price
K1965.04024	19,5	24	M4x12	9,4	9	2,5	0,5	9,5	3,2	2	95.84 $ (USD)
K1965.06029	23,5	29	M6x18	13	13	4	0,5	11,5	10,5	5	100.72 $ (USD)
K1965.08036	28,5	36	M8x25	19	17	5,5	0,5	14	25	9	104.05 $ (USD)
