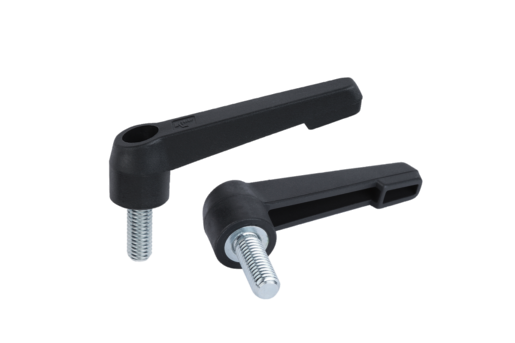

Non-adjustable clamp levers with external thread

go back

Products
- Adjustable Handles
  - Adjustable Handles, Modern Design Style, Plastic
    - Adjustable handles non-adjustable
      - Non-adjustable clamp levers with external thread

Item description/product images

DescriptionMaterial:Handle fiberglass reinforced plastic.
Steel parts grade 5.8.Version:Handle black gray, steel parts blue passivated.Note:Non-adjustable clamping levers can be used for simple applications. Generally, there must be enough space so that the lever can be rotated through 360°.On request:Special versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0175_AG Non-adjustable clamp levers with external thread

157 kB

Drawings

Item selection/filter

Order No.	Thread type	Size	X	D1	D2	H	H1	H3	A	A1	B	L	Price
K0175.105X20	external thread	1	M5	13,8	14	17	11	27	40	47	8	20	5.20 $ (USD)
K0175.106X20	external thread	1	M6	13,8	14	17	11	27	40	47	8	20	5.20 $ (USD)
K0175.208X15	external thread	2	M8	18,3	18,5	18	11	36,5	65	75	9	15	6.02 $ (USD)
K0175.208X20	external thread	2	M8	18,3	18,5	18	11	36,5	65	75	9	20	6.02 $ (USD)
K0175.208X30	external thread	2	M8	18,3	18,5	18	11	36,5	65	75	9	30	6.02 $ (USD)
K0175.310X30	external thread	3	M10	21,8	22	22	14	45	80	91	11	30	7.87 $ (USD)
K0175.412X30	external thread	4	M12	25,8	26	26	17	54	95	108	13	30	10.40 $ (USD)
K0175.516X40	external thread	5	M16	30,8	31	31	21	63	110	126	16	40	14.27 $ (USD)
