Non-adjustable clamp levers with square socket

go back

Products
- Adjustable Handles
  - Adjustable Handles, Modern Design Style, Plastic
    - Adjustable handles non-adjustable
      - Non-adjustable clamp levers with square socket

Item description/product images

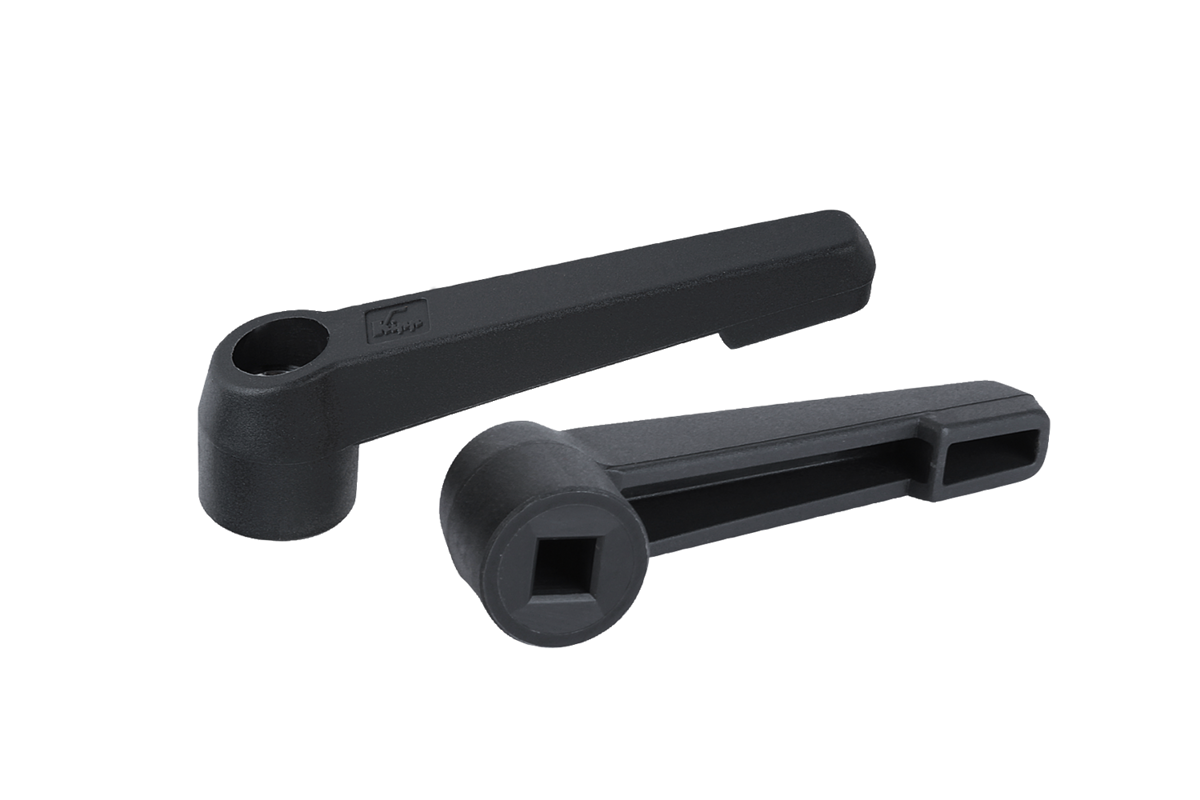

DescriptionMaterial:Handle fiberglass reinforced plastic.
Steel parts grade 5.8.Version:Handle black gray, steel parts blue passivated.Note:Non-adjustable clamping levers can be used for simple applications. Generally, there must be enough space so that the lever can be rotated through 360°.On request:Special versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0175_IV Non-adjustable clamp levers with square socket

158 kB

Drawings

Item selection/filter

Item No.	Thread type	Size	S	T2	D1	D2	H	H1	H3	A	A1	B	Price
K0175.105002	square socket	1	5	13	13,8	14	17	11	27	40	47	8	1.14 $ (USD)
K0175.206002	square socket	2	6	16	18,3	18,5	18	11	36,5	65	75	9	1.54 $ (USD)
K0175.308002	square socket	3	8	18	21,8	22	22	14	45	80	91	11	2.37 $ (USD)
K0175.410002	square socket	4	10	20	25,8	26	26	17	54	95	108	13	4.14 $ (USD)
K0175.512002	square socket	5	12	26	30,8	31	31	21	63	110	126	16	6.13 $ (USD)
