Tension levers with internal thread, 20°

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Tension lever
      - Tension levers with internal thread, 20°

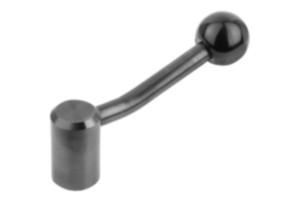

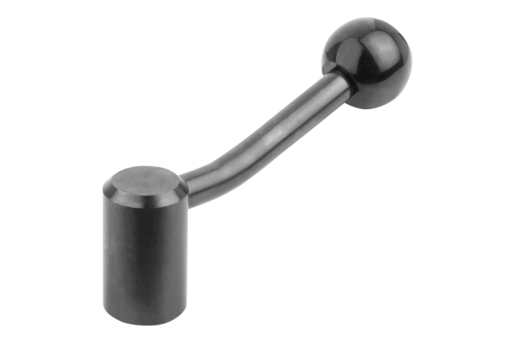

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidized.Note:Tension levers can be used for simple clamping or control operations.
Where applicable, there must be enough space available so that the grip can be rotated 360°.On request:Other internal threads, reamed holes and special versions.
Dimension “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0176_IG Tension levers with internal thread

142 kB

Datasheet K0176_IG20 Tension levers with internal thread, 20°

156 kB

Drawings

Item selection/filter

Order No.	Kind of fastening	X	T	A=Handle length	A2	D	D1	D2	H	H1	H2	Price
K0176.208	internal thread	M8	18	84,5	15	24	10	25	40	52,5	32,5	0.00 $ (USD)
K0176.210	internal thread	M10	18	84,5	15	24	10	25	40	52,5	32,5	0.00 $ (USD)
K0176.212	internal thread	M12	20	100	15	28	12	32	46	61	36,5	0.00 $ (USD)
K0176.216	internal thread	M16	23	121	15	33	13	32	52	72	41	0.00 $ (USD)
K0176.220	internal thread	M20	26	123	15	41	13	32	61	80	49	0.00 $ (USD)
