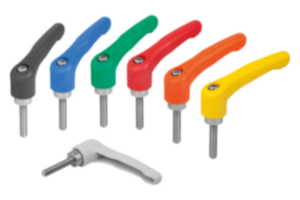

- K1701
Adjustable handle, plastic with external thread, steel parts stainless steel
- K1701
Adjustable handle, plastic with extended collar
with external thread, steel parts stainless steel
- K0269
Adjustable Handles with push button external thread
- K0269
Adjustable Handles with push button internal thread
- K0270
Adjustable Handles with push button, external thread, metal parts stainless steel
- K0270
Adjustable Handles with push button, internal thread, metal parts stainless steel
- K1597
Plastic clamping lever with male thread and clamping force intensifier
- K1597
Adjustable handles, plastic with internal thread and clamping force intensifier
- K1598
Plastic clamping lever with male thread and clamping force intensifier
- K1598
Adjustable handles, plastic with internal thread and clamping force intensifier
- K1553
Adjustable handles, plastic
with internal thread and safety function
- K1873
Adjustable handles, plastic
with internal thread and safety function, thread insert stainless steel
- K1872
Adjustable handles ECO, plastic
with internal thread
- K1743
Adjustable handles ECO, plastic
with internal thread, threaded insert stainless steel
- K1553
Adjustable handles, plastic
with external thread and safety function
- K1873
Adjustable handles, plastic
with external thread and safety function, thread insert stainless steel
- K1872
Adjustable handles ECO, plastic
with external thread
- K1743
Adjustable handles ECO, plastic
with external thread, threaded insert stainless steel
- K1743
Adjustable handles, plastic, metal detectable with internal thread
- K1743
Adjustable handles, plastic, metal detectable with external thread
- K1743
Adjustable handles, plastic, visually detectable with internal thread
- K1743

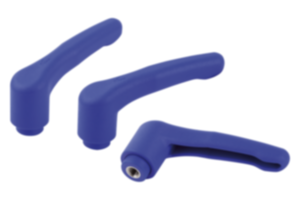

Adjustable handles, plastic, optically detectable with external thread
- K0269

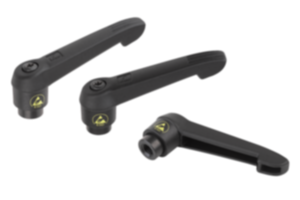

Adjustable handles antistatic internal thread, plastic grip
- K0269
Adjustable handles antistatic external thread, plastic grip
- K0270
Adjustable handles antibacterial internal thread, plastic grip, metal parts stainless steel
- K0270
Adjustable handles antibacterial external thread, plastic grip, metal parts stainless steel
- K0981
Adjustable handles ergonomic external thread
- K0982
Adjustable handles ergonomic external thread, steel parts stainless steel
- K0981
Adjustable handles ergonomic internal thread
- K0982
Adjustable handles ergonomic internal thread, steel parts stainless steel
- K0175
Adjustable handles non-adjustable
- K0125
Adjustable Handles 2K soft-touch with external thread
- K0125
Adjustable Handles 2K soft-touch with internal thread
- K0126
Adjustable Handles 2K soft-touch with external thread, steel parts in stainless steel
- K0126
Adjustable Handles 2K soft-touch with internal thread, steel parts in stainless steel
- K0252
Adjustable Handles ECO external thread
- K0252
Adjustable Handles ECO internal thread
- K0780
Adjustable Handles with thrust pin external thread
- Cam Levers
- Adjustable Tension Levers
- Handles
- Indexing Plungers
- Spring Plungers
- Ball Lock Pins
- Toggle Clamps
- Clamping devices
- Knobs
- Handwheels
- Quarter-turn locks, compression latches
- Pull Handles
- Tube Connectors
- Telescopic slides
- Hinges
- Rubber Buffers
- Latches, snap locks, slam latches
- Swivel feet, levelling feet
- Locating Components
- Leveling Elements
- Machine & Fixture Components
- Joints
- Magnets
- Level indicators, screw plugs
- Material handling
- Tools
- Product lines KIPP Inc.
|
|
|

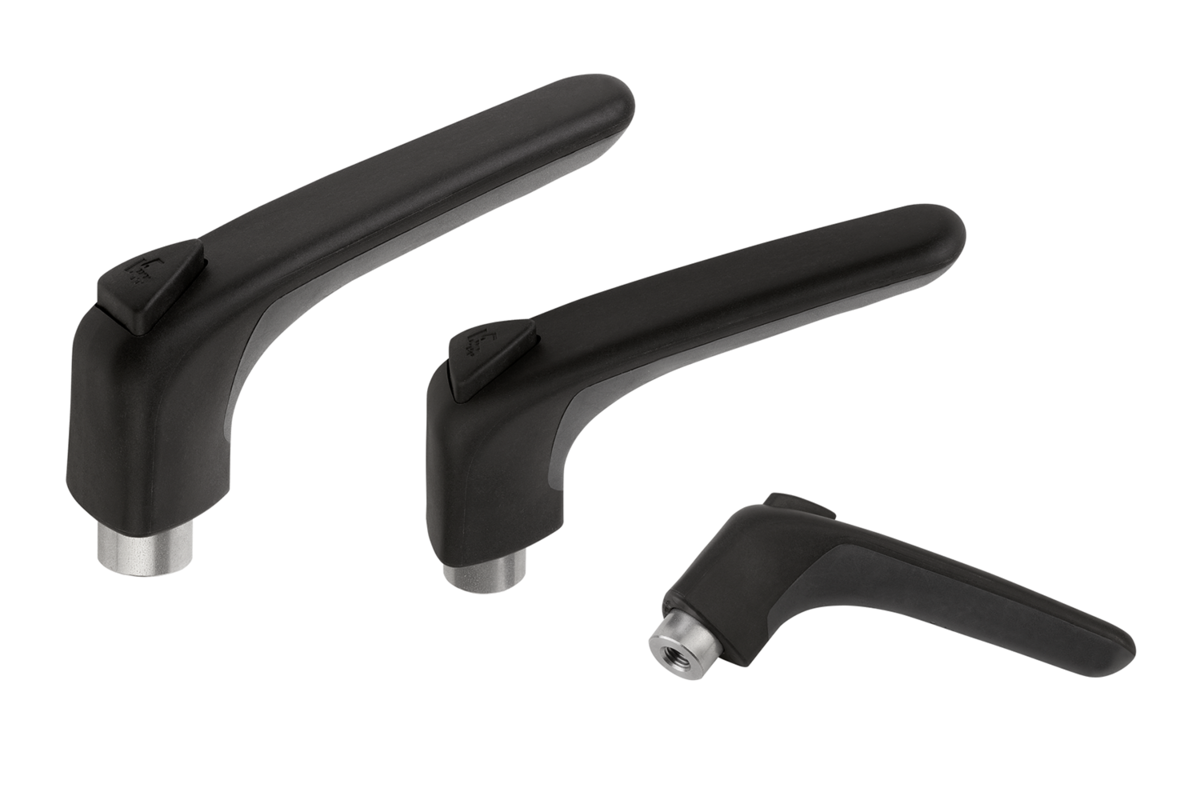

K0981Adjustable handles ergonomic external thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle: Hard components reinforced plastic, toothed ring die-cast zinc.
Soft components thermoplastic elastomer.
Steel parts: grade 5.8.Version:Steel parts blue passivated.Note:The color combinations
graphite black RAL 9011 (hard components) and
black gray RAL 7021 (soft components) are supplied as standard.
The soft components ensure a non-slip grip of the operating part. The closed design offers sufficient protection against dirt. The design was especially developed for ergonomic gripping requirements.

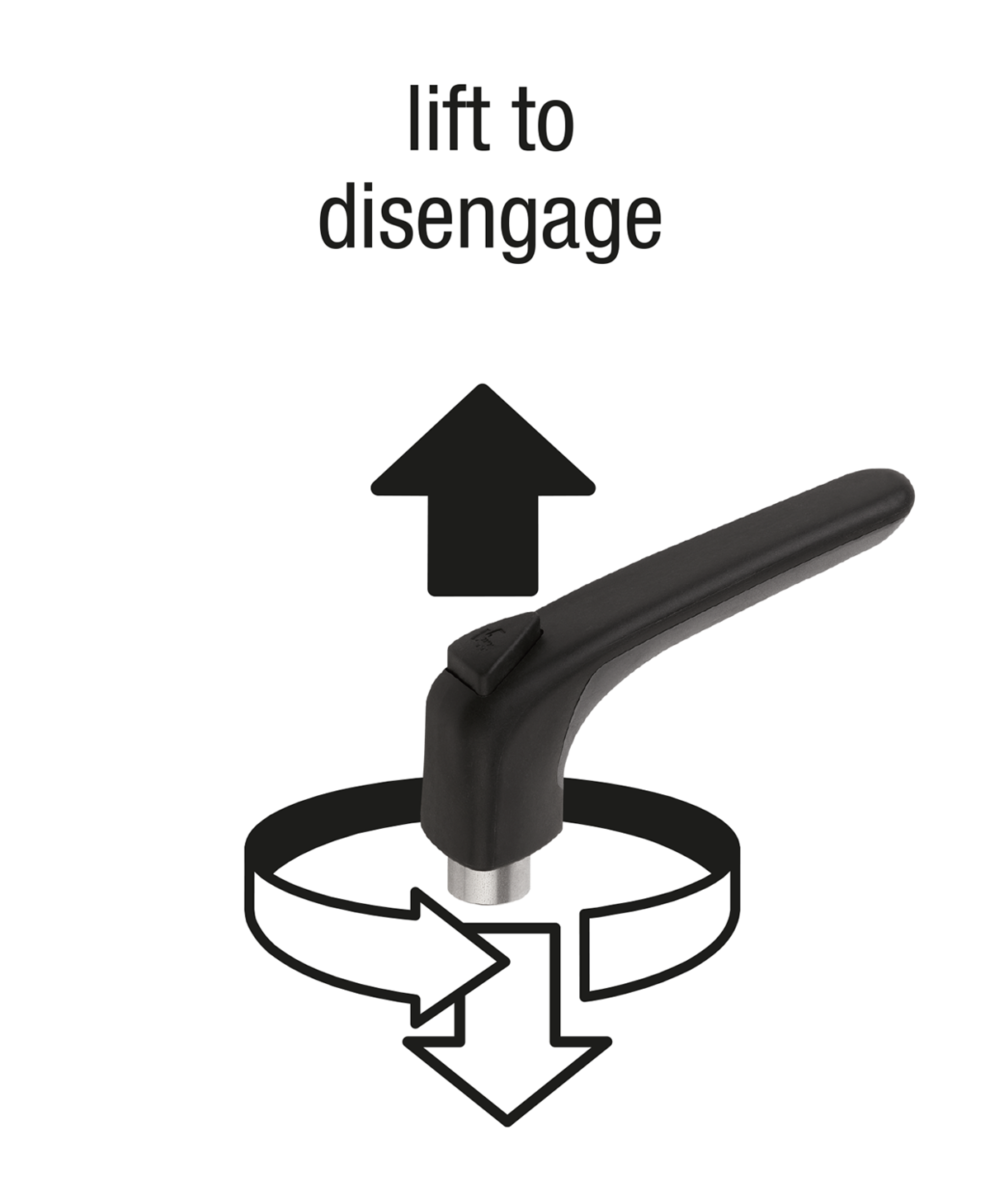

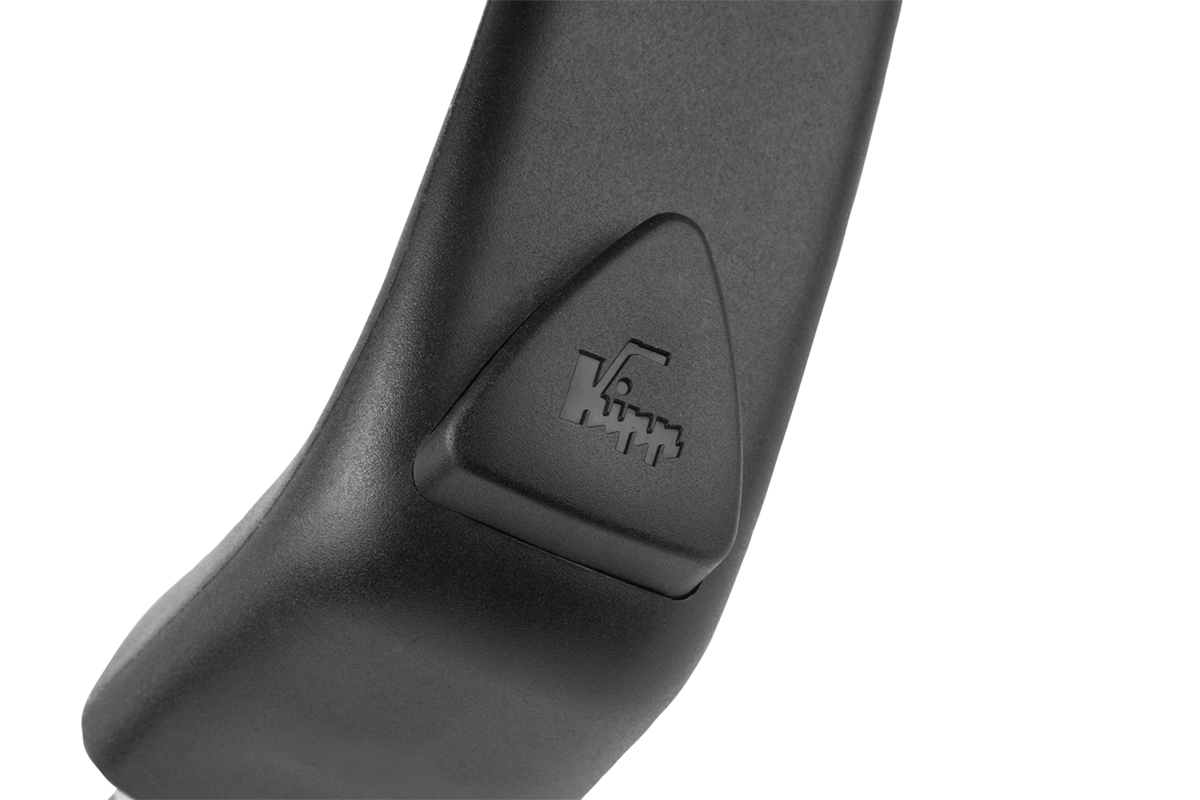

The push button improves disengagement and allows the handle to be easily used.
Where L ≥ 60 mm the thread length is 60 mm.On request:Other external threads, screw lengths, color combinations and special versions.
Dimension “H1” available in other lengths on request at extra charge.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Size | X | D | D1
| H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| L | CAD | Acc. | Price | Order |
|---|
| K0981.3081X15 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 15 |  | | 11.97 $ (USD) | | | K0981.3081X20 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 20 | | | 11.97 $ (USD) | | | K0981.3081X25 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 25 | | | 11.97 $ (USD) | | | K0981.3081X30 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 30 | | | 11.97 $ (USD) | | | K0981.3081X35 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 35 | | | 12.83 $ (USD) | | | K0981.3081X40 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 40 | | | 12.83 $ (USD) | | | K0981.3081X45 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 45 | | | 12.83 $ (USD) | | | K0981.3081X50 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 50 | | | 12.83 $ (USD) | | | K0981.3081X55 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 55 | | | 12.83 $ (USD) | | | K0981.3081X60 | 3 | M8 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 60 | | | 12.83 $ (USD) | | | K0981.3101X15 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 15 | | | 11.97 $ (USD) | | | K0981.3101X20 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 20 | | | 11.97 $ (USD) | | | K0981.3101X25 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 25 | | | 11.97 $ (USD) | | | K0981.3101X30 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 30 | | | 11.97 $ (USD) | | | K0981.3101X35 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 35 | | | 12.83 $ (USD) | | | K0981.3101X40 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 40 | | | 12.83 $ (USD) | | | K0981.3101X45 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 45 | | | 12.83 $ (USD) | | | K0981.3101X50 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 50 | | | 12.83 $ (USD) | | | K0981.3101X55 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 55 | | | 12.83 $ (USD) | | | K0981.3101X60 | 3 | M10 | 16 | 30,5 | 55,6 | 10 | 37,3 | 76,5 | 81 | 88,5 | 99,5 | 20 | 22 | 60 | | | 12.83 $ (USD) | |
