Rubber buffers type AT tapered
K0567

Rubber buffers type AT tapered

go back

Item description/product images

DescriptionMaterial:Metal parts, steel, grade 5.6.
Elastomer natural rubber, medium hardness, Shore 57A.
Version:Steel electro zinc-plated.Note:These rubber buffers are widely used construction elements for elastic mounting. They are used, among other things, as mountings for aggregates, motors, compressors, pumps and testing machinery.
Rubber buffers with tapered rubber contour reduce high edge loads of the rubber by radial deflection and so increase the components service life.
Temperature range:-30°C to +80°C.On request:Other Shore grades.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0567 Rubber buffers type AT tapered 160 kB

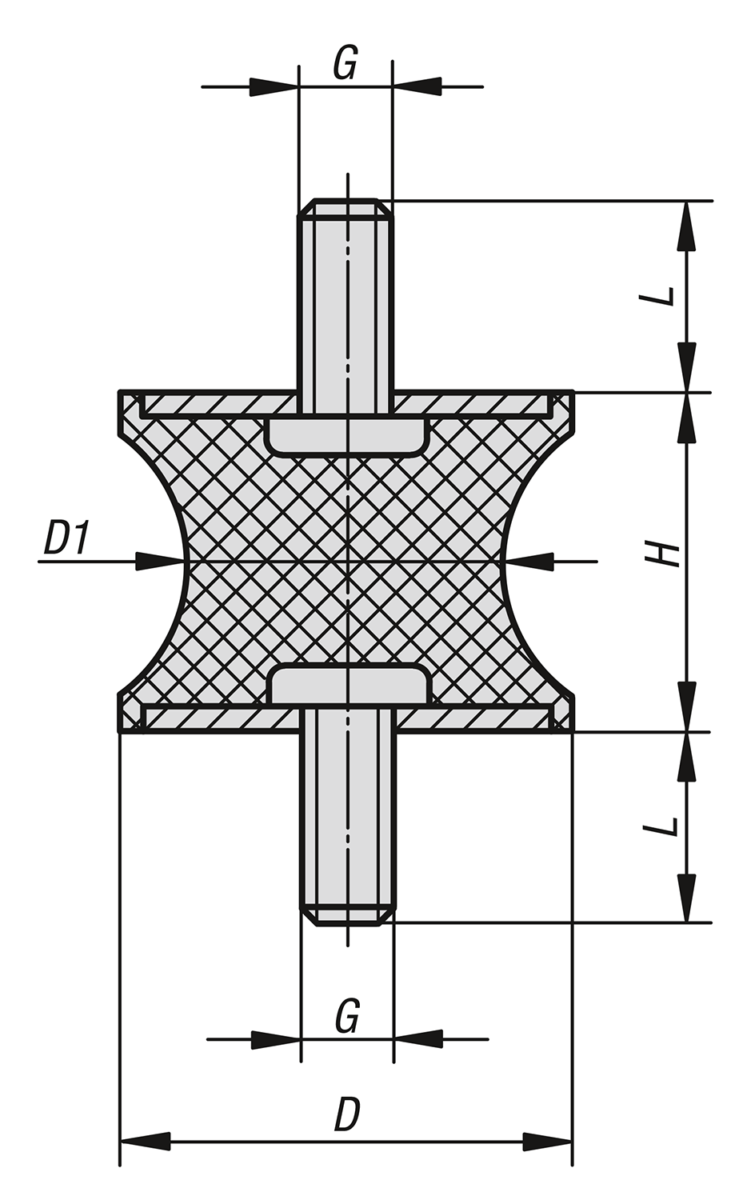

Drawings

Rubber buffers type AT tapered

Item selection/filter

Item No.

DD1HGLSpring stiffness
N/mm
Load
N
CADAcc.PriceOrder
K0567.0100105710810M4133137 1.60 $ (USD)
K0567.01501557151215M41371135 1.64 $ (USD)
K0567.02001557201415M618177283 2.18 $ (USD)
K0567.03002057302220M823212763 2.67 $ (USD)
K0567.04003057403330M8232021111 3.82 $ (USD)
K0567.04004857402048M823101626 4.35 $ (USD)
K0567.05003057504030M10283511229 4.85 $ (USD)
K0567.07504057755040M12374662330 11.21 $ (USD)
